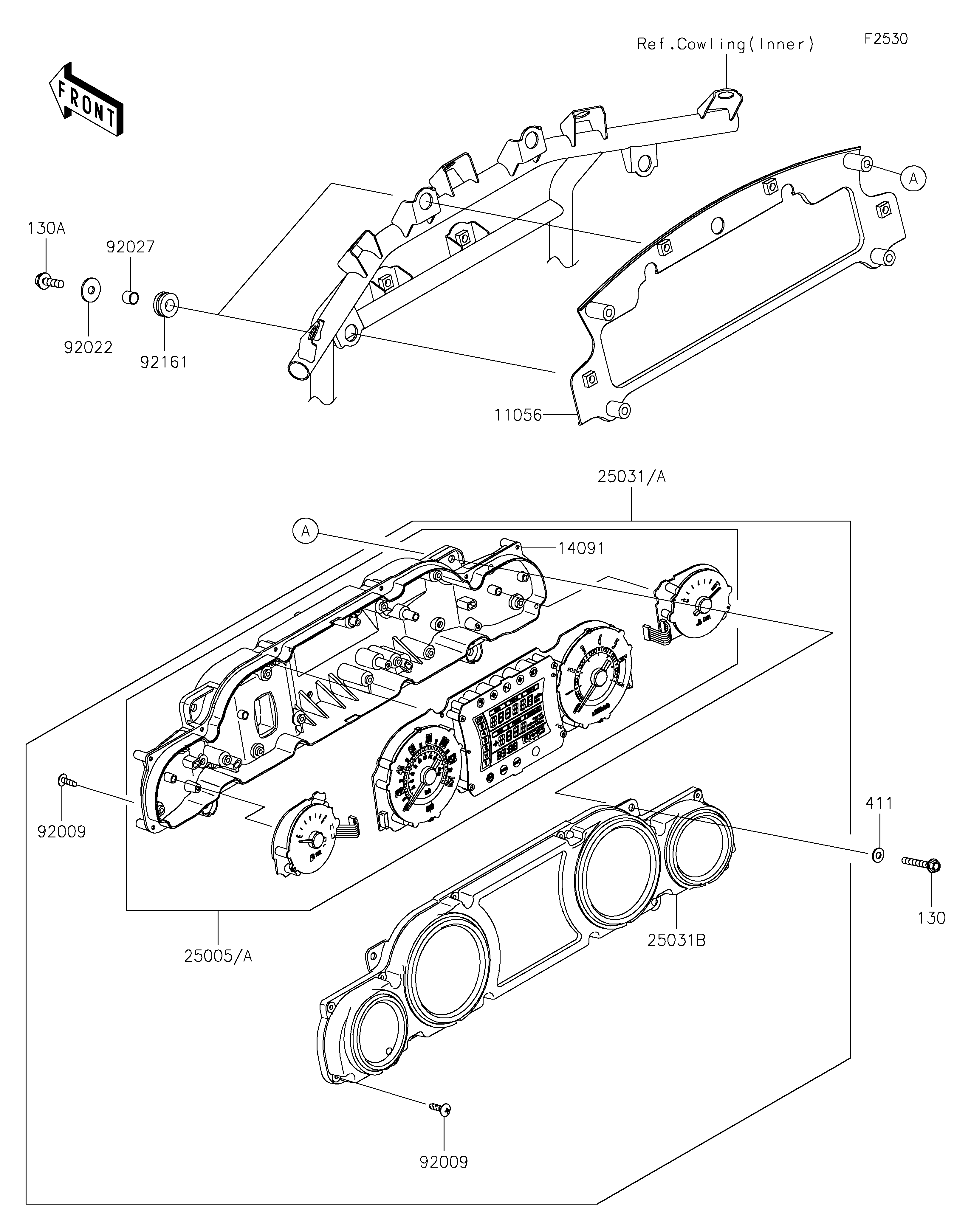

2016 VULCAN® 1700 VAQUERO® ABS - Meter(s)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,METER | 11056 | 11056-1139 | 1 | ||
| BOLT-FLANGED,5X35 | 130 | 130BA0535 | 4 | ||
| BOLT-FLANGED,6X20 | 130A | 130BA0620 | 4 | ||
| COVER,METER,LWR | 14091 | 14091-1577 | 1 | ||
| SPEEDOMETER,COMBINATION,ABS | 25005 | 25005-0129 | 1 | CA,US | |
| SPEEDOMETER,COMBINATION,ABS | 25005A | 25005-0130 | 1 | CN | |
| METER-ASSY,COMBINATION,ABS | 25031 | 25031-0701 | 1 | CA,US | |
| METER-ASSY,COMBINATION,ABS | 25031A | 25031-0702 | 1 | CN | |
| METER-ASSY,UPP CASE | 25031B | 25031-5046 | 1 | ||
| WASHER-PLAIN,5MM | 411 | 411AB0500 | 4 | ||
| SCREW,TAPPING,3X16 | 92009 | 92009-1391 | 26 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 4 | ||
| COLLAR,6.8X10X8.5 | 92027 | 92027-129 | 4 | ||
| DAMPER | 92161 | 92161-0154 | 4 |
| BRACKET,METER | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,5X35 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X20 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COVER,METER,LWR | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPEEDOMETER,COMBINATION,ABS | |
| REF # | 25005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| SPEEDOMETER,COMBINATION,ABS | |
| REF # | 25005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| METER-ASSY,COMBINATION,ABS | |
| REF # | 25031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| METER-ASSY,COMBINATION,ABS | |
| REF # | 25031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| METER-ASSY,UPP CASE | |
| REF # | 25031B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,5MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,3X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 26 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6,BLACK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X8.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
