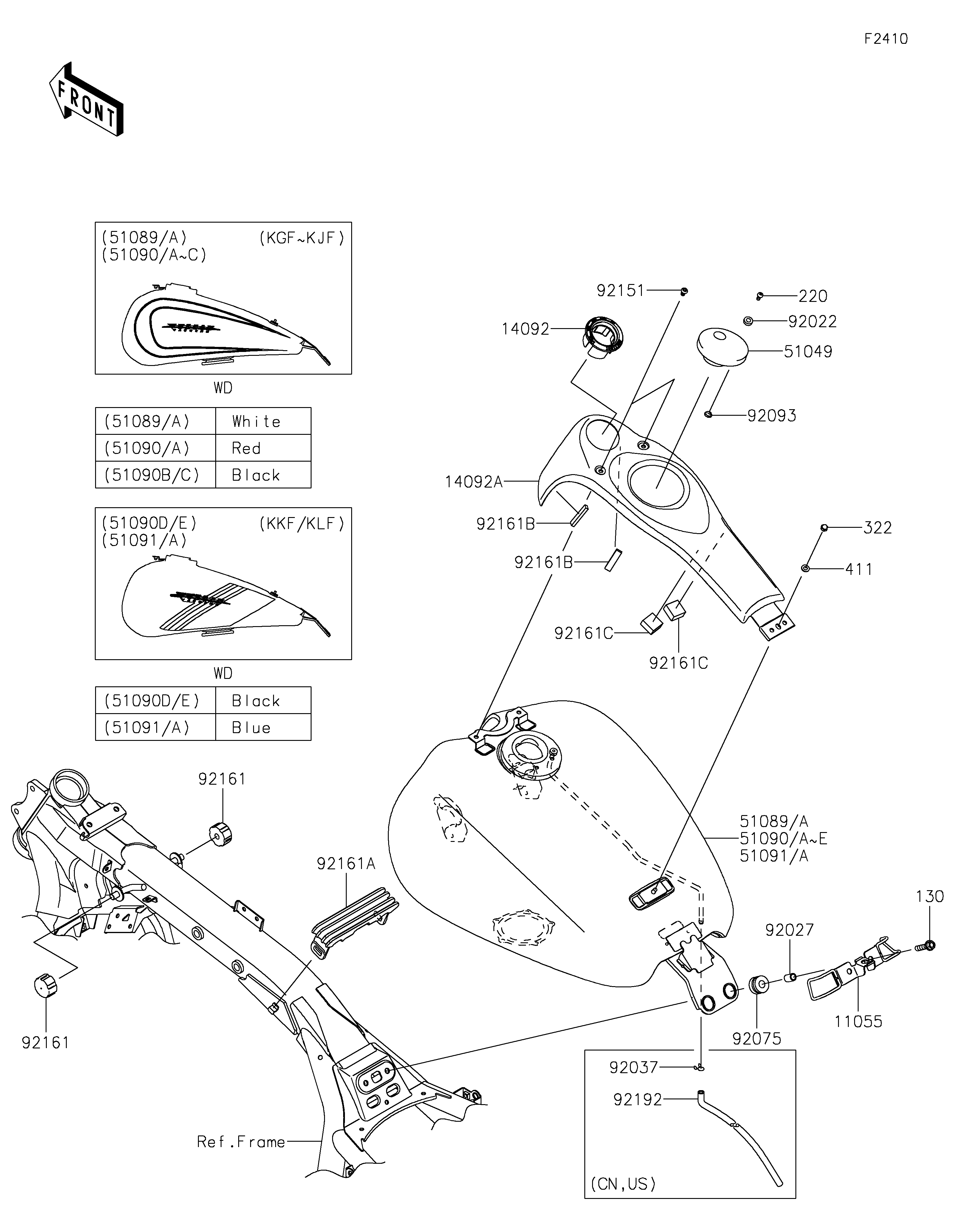

2016 VULCAN® 1700 VAQUERO® ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11055
11055
130
130
14092
14092
14092A
14092A
220
220
322
322
51049
51049
51089
51089
51089A
51089A
92022
92022
92027
92027
92037
92037
92075
92075
92093
92093
92151
92151
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92161C
92161C
92161C
92161C
92192
92192
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT 11055 11055-1552 1
BOLT-FLANGED,8X30 130 130BA0830 2
COVER,IGNITION SWITCH 14092 14092-0046 1
COVER,F.S.BLACK 14092A 14092-0217-18T 1
SCREW-PAN-CROS,5X10 220 220AA0510 2
NUT-CAP,6MM 322 322AB0600 1
CAP-TANK,FUEL 51049 51049-0003 1
TANK-COMP-FUEL,P.C.WHITE 51089 51089-5420-667 1 CN,US
TANK-COMP-FUEL,P.C.WHITE 51089A 51089-5436-667 1 CA
WASHER,5.1X10X1.0 92022 92022-1977 2
COLLAR,8.8X12X17 92027 92027-034 2
CLAMP,TUBE 92037 92037-147 1 CN,US
DAMPER 92075 92075-1736 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,SOCKET,6X10 92151 92151-1449 2
DAMPER,FUEL TANK 92161 92161-0293 2
DAMPER,FUEL TANK 92161A 92161-0577 1
DAMPER,10X40X7 92161B 92161-1502 2
DAMPER,25X25X13 92161C 92161-1503 2
TUBE,BREATHER 92192 92192-0668 1 CN,US
WASHER-PLAIN,6MM 411 411S0600 1
