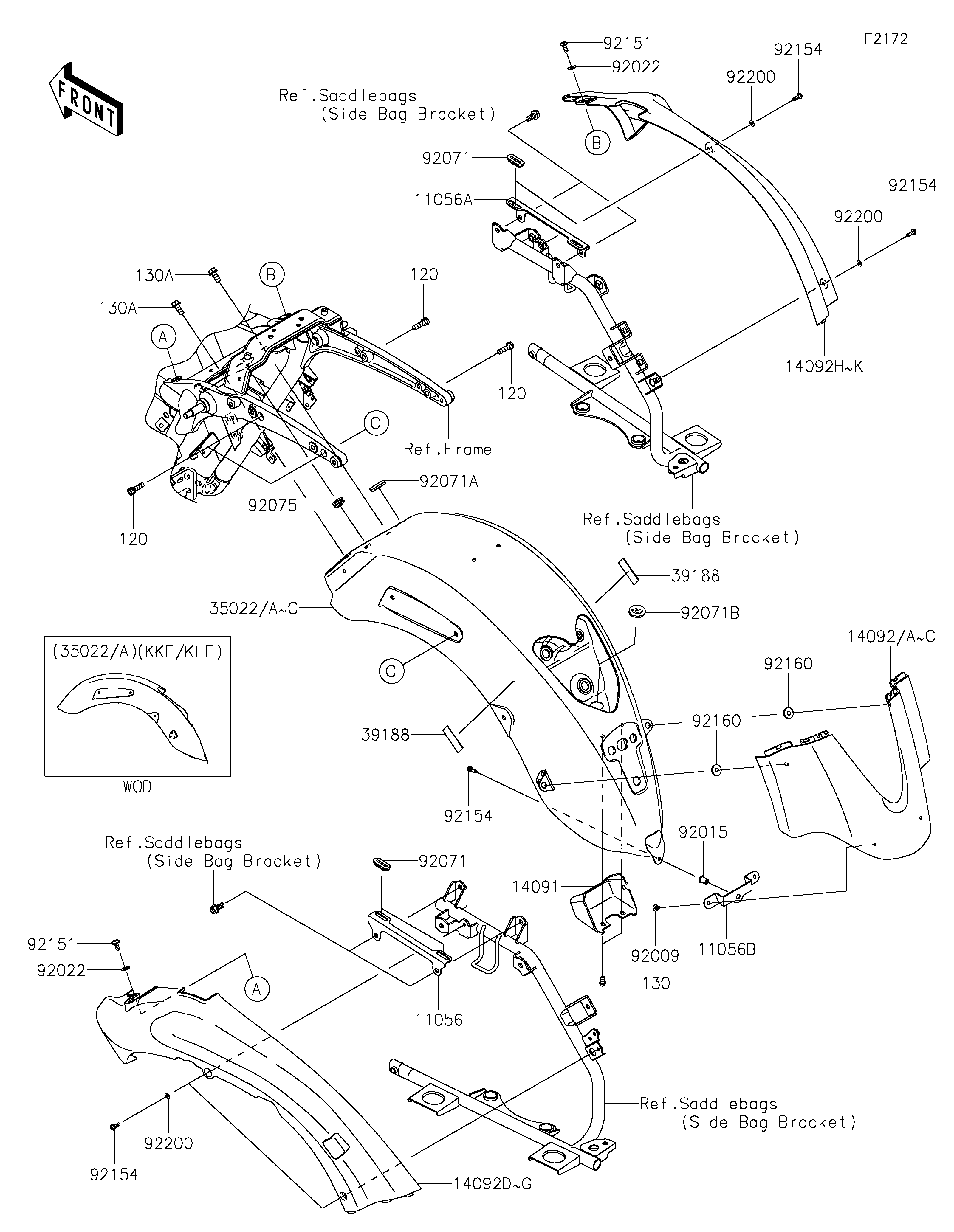

2016 VULCAN® 1700 VAQUERO® ABS - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
120
120
120
130
130A
130A
14091
14092B
14092F
14092J
35022B
39188
39188
92009
92015
92022
92022
92071
92071
92071A
92071B
92075
92151
92151
92154
92154
92154
92154
92160
92160
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LH 11056 11056-0390 1
BRACKET,RH 11056A 11056-0391 1
BRACKET 11056B 11056-1087 1
BOLT-SOCKET,8X25 120 120CA0825 4
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED,8X16 130A 130BA0816 2
COVER,HARNESS CONNECTOR 14091 14091-1630 1
COVER,P.C.WHITE 14092B 14092-0797-667 1
COVER,STRUT,LH,P.C.WHITE 14092F 14092-0800-667 1
COVER,STRUT,RH,P.C.WHITE 14092J 14092-0801-667 1
FENDER-COMP-REAR,P.C.WHITE 35022B 35022-0083-667 1
TAPE 39188 39188-0016 2
SCREW,TAPPING,5X10 92009 92009-1332 2
NUT,WELL,5MM 92015 92015-1757 1
WASHER,6.5X16X1.0 92022 92022-1654 2
GROMMET 92071 92071-1187 4
GROMMET 92071A 92071-1228 1
GROMMET 92071B 92071-1265 1
DAMPER 92075 92075-1067 1
BOLT,SOCKET,6X14 92151 92151-1654 2
BOLT,SOCKET,5X16 92154 92154-0209 5
DAMPER 92160 92160-1613 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 4
