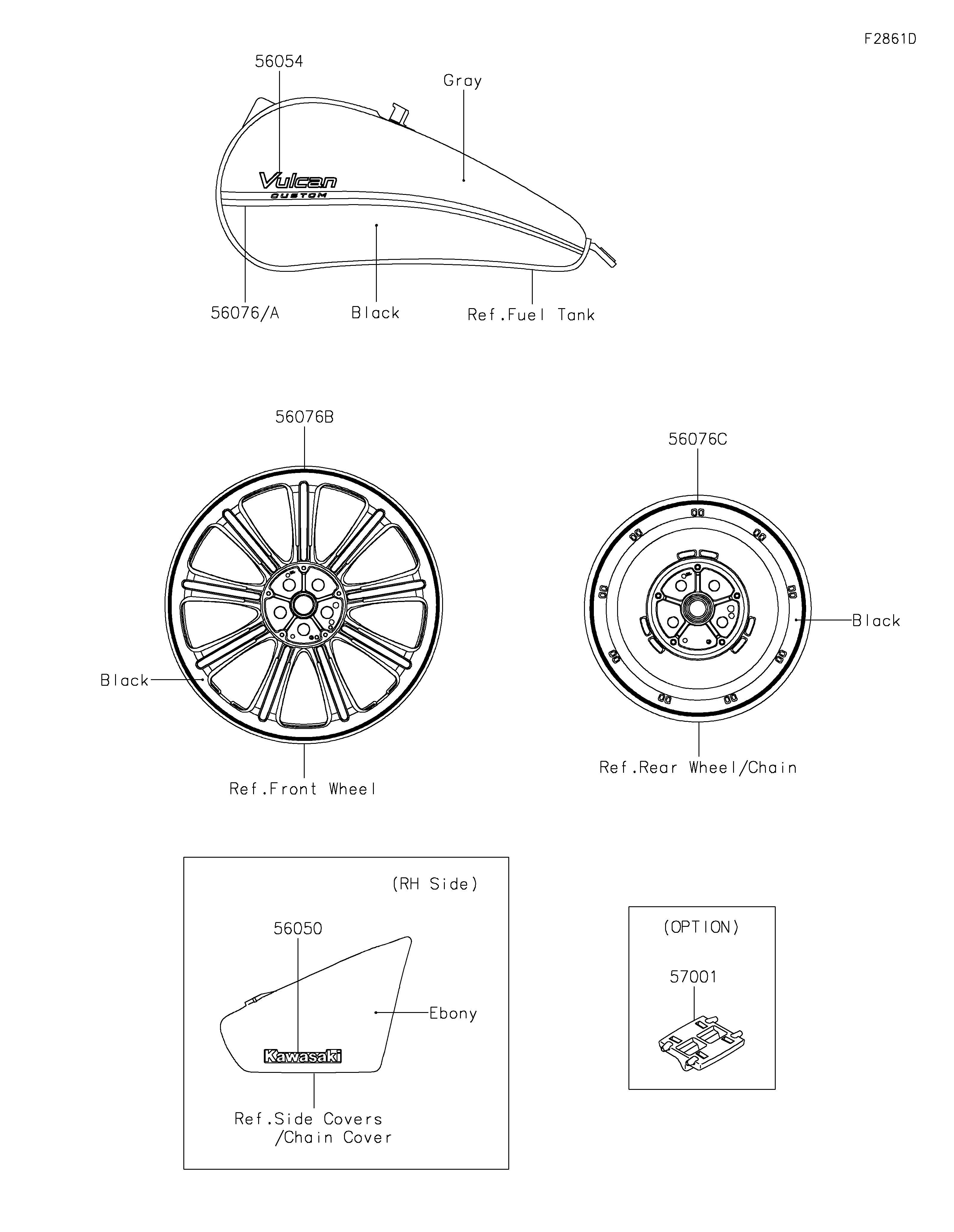

2020 VULCAN® 900 CUSTOM - Decals(Gray/Black)(CLF)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SIDE COVER,KAWASAKI | 56050 | 56050-1901 | 1 | ||
| MARK,FUEL TANK,VULCAN | 56054 | 56054-2672 | 2 | ||
| PATTERN,FUEL TANK,LH | 56076 | 56076-0679 | 1 | ||
| PATTERN,FUEL TANK,RH | 56076A | 56076-0680 | 1 | ||
| PATTERN,FR WHEEL,GOLD,6X1728 | 56076B | 56076-0681 | 2 | ||
| PATTERN,RR WHEEL,GOLD,6X1222 | 56076C | 56076-0682 | 2 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,SIDE COVER,KAWASAKI | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,VULCAN | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR WHEEL,GOLD,6X1728 | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR WHEEL,GOLD,6X1222 | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
