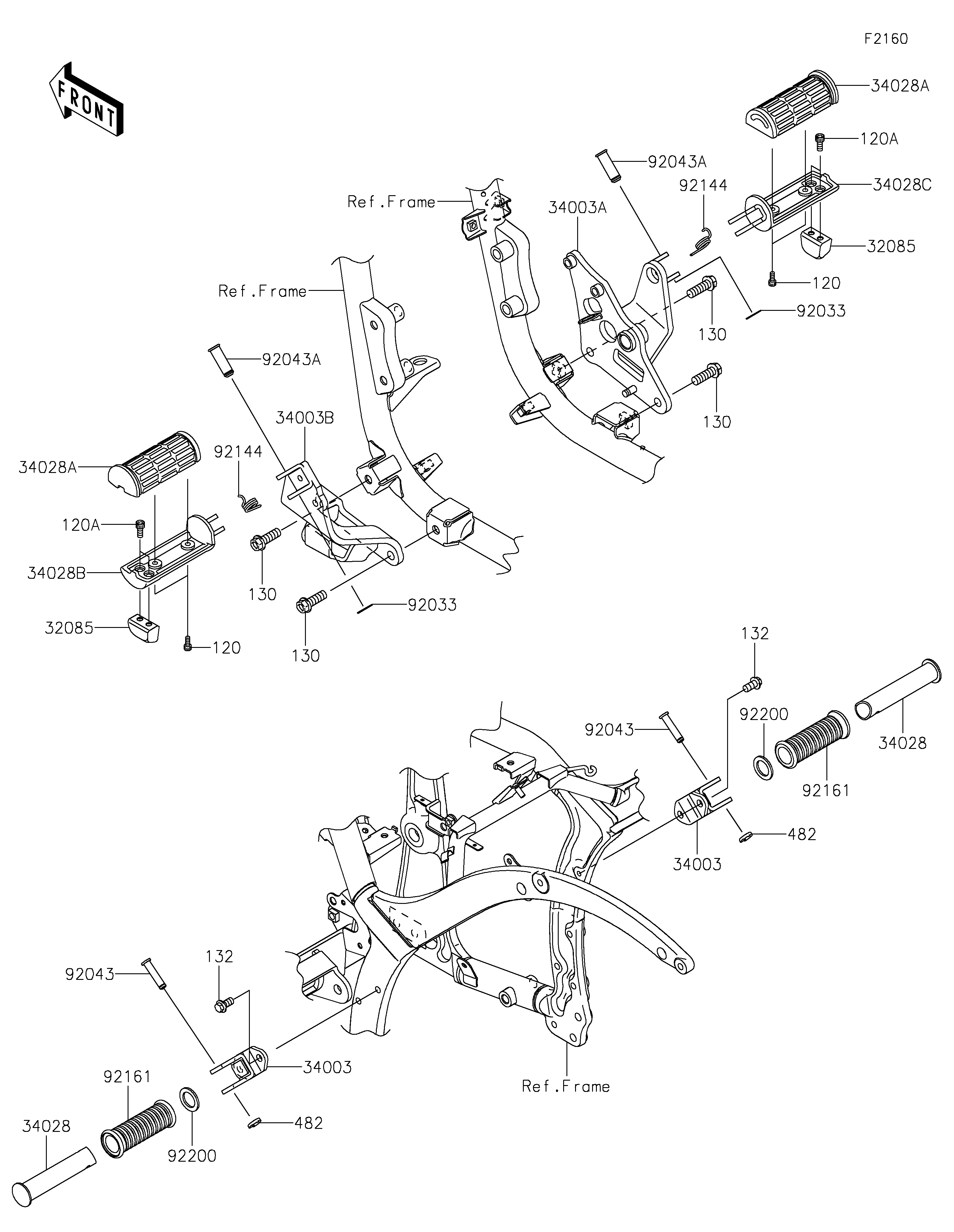

2018 VULCAN® 900 CUSTOM - Footrests

DOWNLOAD PDF
SELECT A NEW PART
120
120
120A
120A
130
130
130
130
132
132
32085
32085
34003
34003
34003A
34003B
34028
34028
34028A
34028A
34028B
34028C
482
482
92033
92033
92043
92043
92043A
92043A
92144
92144
92161
92161
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120CB0512 4
BOLT-SOCKET,6X14 120A 120CB0614 4
BOLT-FLANGED,10X30 130 130BB1030 4
BOLT-FLANGED-SMALL,8X16 132 132BB0816 4
STOPPER,BANK SENSOR 32085 32085-1534 2
HOLDER-STEP,RR,F.S.BLACK 34003 34003-0030-18R 2
HOLDER-STEP,FR,RH 34003A 34003-0045 1
HOLDER-STEP,FR,LH 34003B 34003-0051 1
STEP,RR 34028 34028-0017 2
STEP,RUBBER 34028A 34028-0076 2
STEP,FR,LH 34028B 34028-1519 1
STEP,FR,RH 34028C 34028-1520 1
CIRCLIP-TYPE-E 482 482EA7000 2
RING-SNAP,10MM 92033 92033-1166 2
PIN,8X36.5 92043 92043-1339 2
PIN,12X37 92043A 92043-1358 2
SPRING,STEP RETURN 92144 92144-1126 2
DAMPER,STEP 92161 92161-0232 2
WASHER,22.5X33X2.3 92200 92200-1482 2
