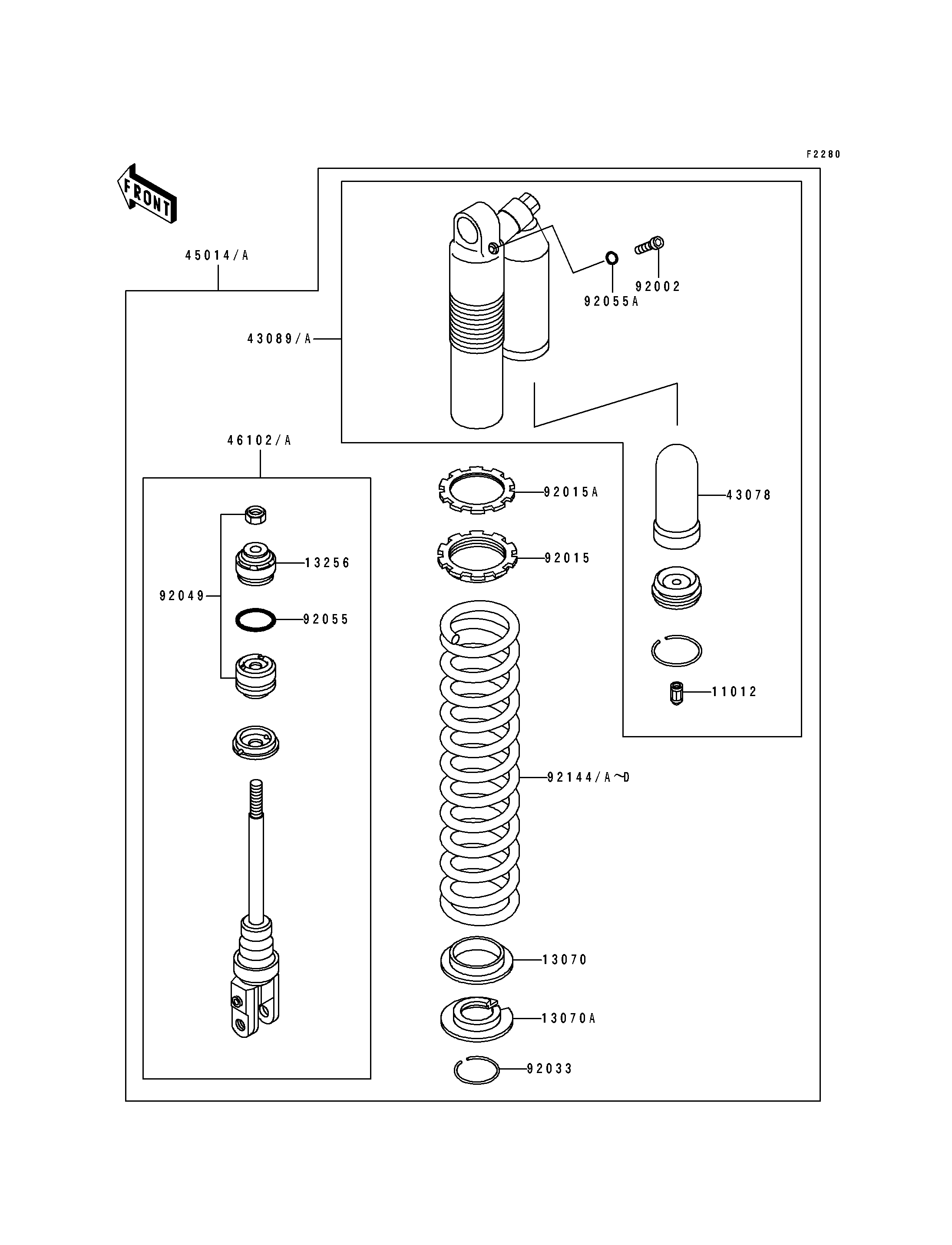

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1276 | 1 | ||
| GUIDE,SPRING | 13070 | 13070-1161 | 1 | ||
| GUIDE,SPRING | 13070A | 13070-1165 | 1 | ||
| PISTON,SHOCKABSORBER | 13256 | 13256-1054 | 1 | ||
| RESERVOIR,SHOCKABSORBER | 43078 | 43078-1094 | 1 | ||
| CYLINDER-SHOCKABSORBER | 43089A | 43089-1142 | 1 | ||
| SHOCKABSORBER | 45014A | 45014-1488 | 1 | ||
| ROD,SHOCKABSORBER | 46102A | 46102-1309 | 1 | ||
| BOLT,DRAIN | 92002 | 92002-1955 | 1 | ||
| NUT,SPRING ADJUST | 92015 | 92015-1703 | 1 | ||
| NUT,SPRING ADJUST LOCK | 92015A | 92015-1704 | 1 | ||
| RING-SNAP,SHOCKABSORBER | 92033 | 92033-1228 | 1 | ||
| SEAL-OIL | 92049 | 92049-1306 | 1 | ||
| RING-O,ROD | 92055 | 92055-1369 | 1 | ||
| RING-O | 92055A | 92055-1383 | 1 | ||
| SPRING,SHOCKABSORBER,K=4.8 | 92144A | 92144-1499 | 1 | ||
| SPRING,SHOCKABSORBER,K=4.6 | 92144B | 92144-1501 | 1 | (OPTION) | |
| SPRING,SHOCKABSORBER,K=5.0 | 92144C | 92144-1503 | 1 | (OPTION) |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,SPRING | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,SPRING | |
| REF # | 13070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON,SHOCKABSORBER | |
| REF # | 13256 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR,SHOCKABSORBER | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-SHOCKABSORBER | |
| REF # | 43089A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOCKABSORBER | |
| REF # | 45014A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,SHOCKABSORBER | |
| REF # | 46102A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,DRAIN | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,SPRING ADJUST | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,SPRING ADJUST LOCK | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,SHOCKABSORBER | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,ROD | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCKABSORBER,K=4.8 | |
| REF # | 92144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SHOCKABSORBER,K=4.6 | |
| REF # | 92144B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPRING,SHOCKABSORBER,K=5.0 | |
| REF # | 92144C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
