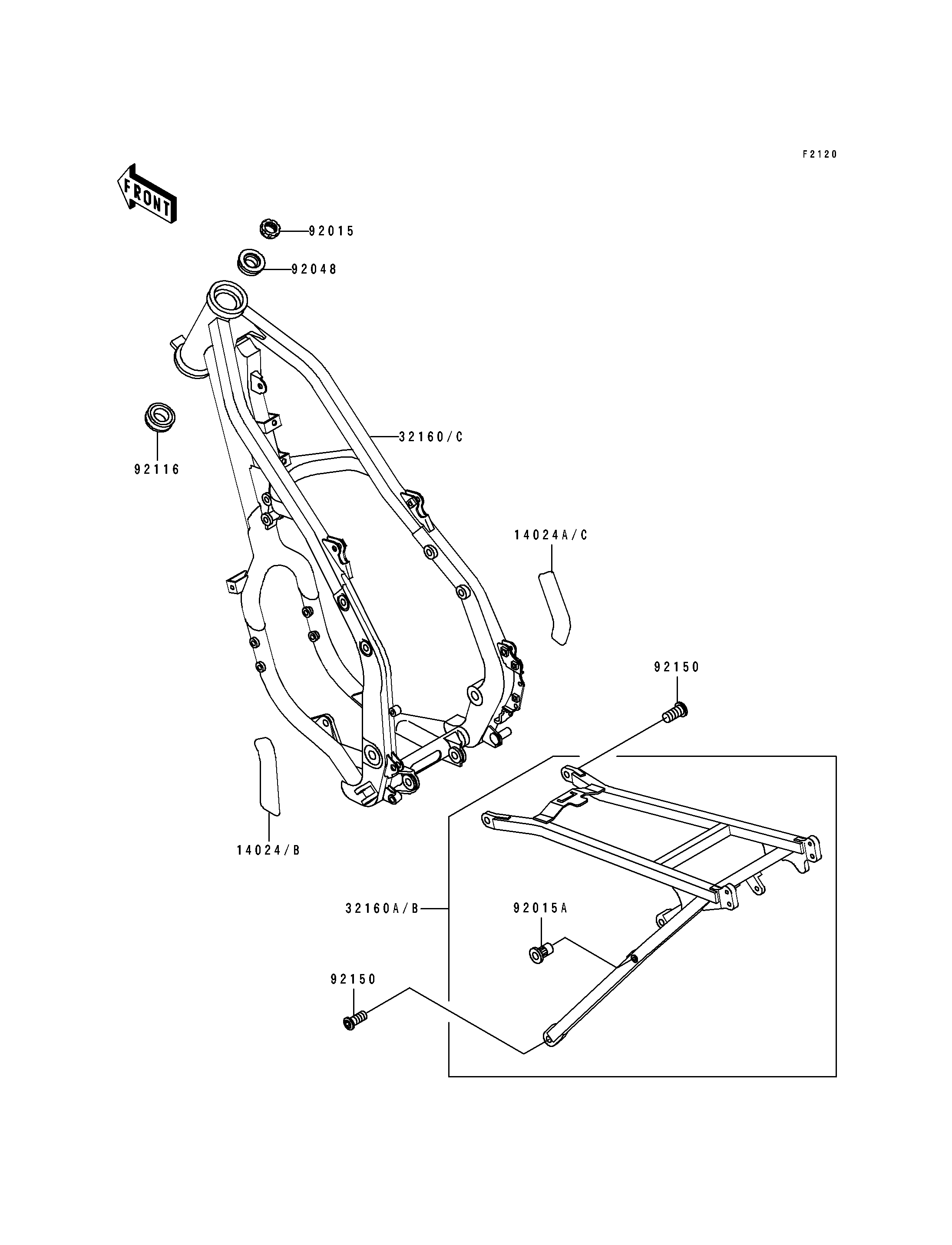

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,LH | 14024B | 14024-1976 | 1 | ||
| COVER,RH | 14024C | 14024-1977 | 1 | ||
| FRAME-COMP,RR | 32160B | 32160-1151 | 1 | ||
| FRAME-COMP,FR | 32160C | 32160-1152 | 1 | ||
| NUT,STEERING STEM,25MM | 92015 | 92015-1684 | 1 | ||
| NUT,POP,6MM | 92015A | 92015-1792 | 4 | ||
| RACE,ROLLER,32005JR RS | 92048 | 92047-017 | 1 | ||
| BEARING-ROLLER,LWR,32006JR RS | 92116 | 92116-1008 | 1 | ||
| BOLT,SOCKET,8X19 | 92150 | 92150-1266 | 4 |
