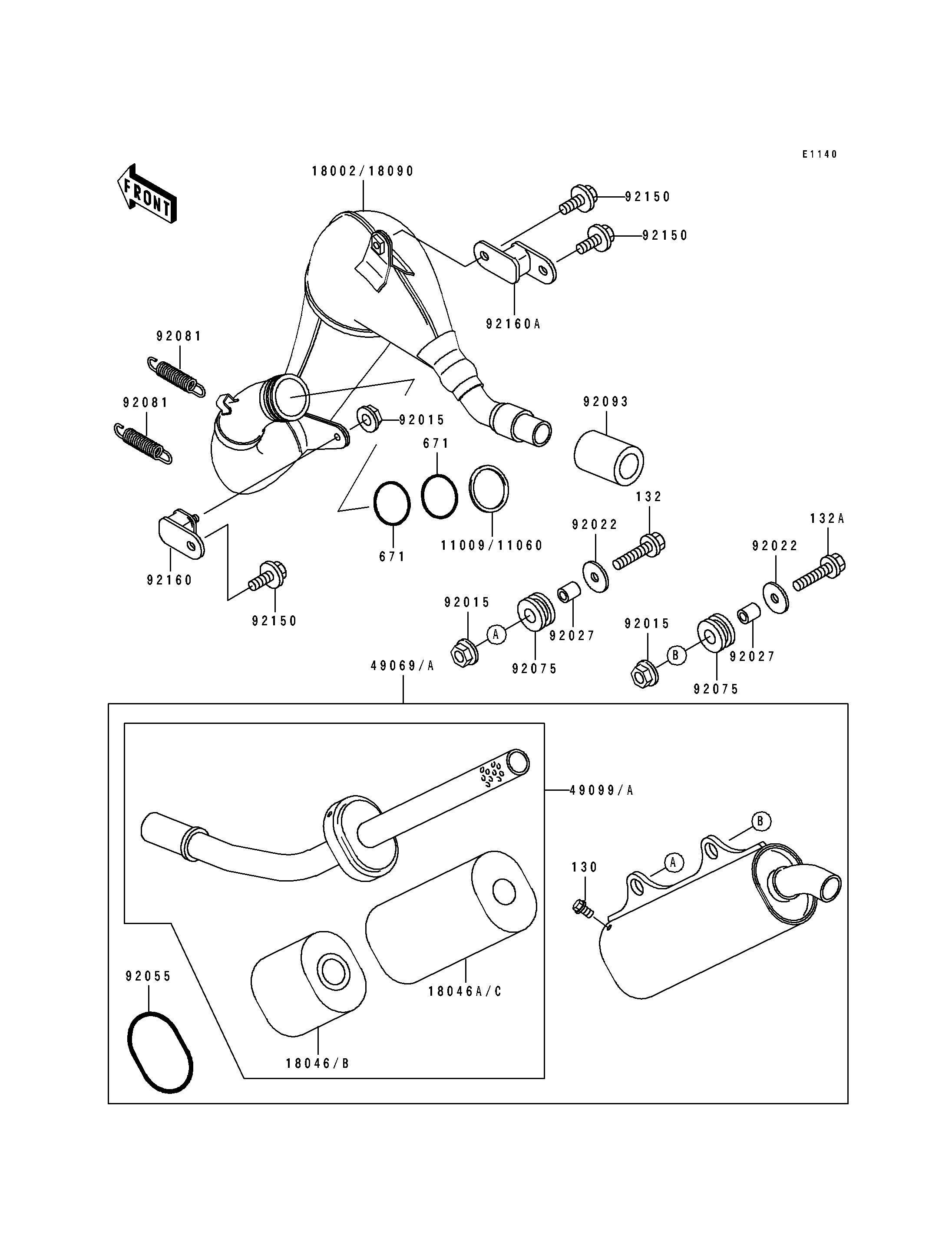

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE | 11060 | 11009-1949 | 1 | ||
| WOOL,BAFFLE PIPE,FR | 18046B | 18046-1121 | 1 | ||
| WOOL,BAFFLE PIPE,RR | 18046C | 18046-1122 | 1 | ||
| BODY-COMP-MUFFLER | 18090 | 18090-1068 | 1 | ||
| MUFFLER-ASSY | 49069A | 49069-1134 | 1 | ||
| BAFFLE-PIPE MUFFLER | 49099A | 49099-1295 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1078 | 3 | ||
| WASHER,6.5X22X1.6 | 92022 | 92022-237 | 2 | ||
| COLLAR,6.8X10X11.5 | 92027 | 92027-1210 | 2 | ||
| RING-O,BAFFLE PIPE | 92055 | 92055-1461 | 1 | ||
| DAMPER,MUFFLER FITTING | 92075 | 92075-1857 | 2 | ||
| SPRING | 92081 | 92081-1526 | 2 | ||
| SEAL | 92093 | 92093-1289 | 1 | ||
| BOLT,6X14 | 92150 | 92150-1340 | 3 | ||
| DAMPER,MUFFLER,FR | 92160 | 92160-1176 | 1 | ||
| DAMPER,MUFFLER,RR | 92160A | 92160-1201 | 1 | ||
| BOLT-FLANGED | 130 | 130G0508 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0630 | 1 | ||
| BOLT-FLANGED-SMALL | 132A | 132G0640 | 1 | ||
| O RING,50MM | 671 | 671E2550 | 2 |
| GASKET,EXHAUST PIPE | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOOL,BAFFLE PIPE,FR | |
| REF # | 18046B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOOL,BAFFLE PIPE,RR | |
| REF # | 18046C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER | |
| REF # | 18090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER-ASSY | |
| REF # | 49069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAFFLE-PIPE MUFFLER | |
| REF # | 49099A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X22X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X11.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,BAFFLE PIPE | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MUFFLER FITTING | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MUFFLER,FR | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MUFFLER,RR | |
| REF # | 92160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,50MM | |
| REF # | 671 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
