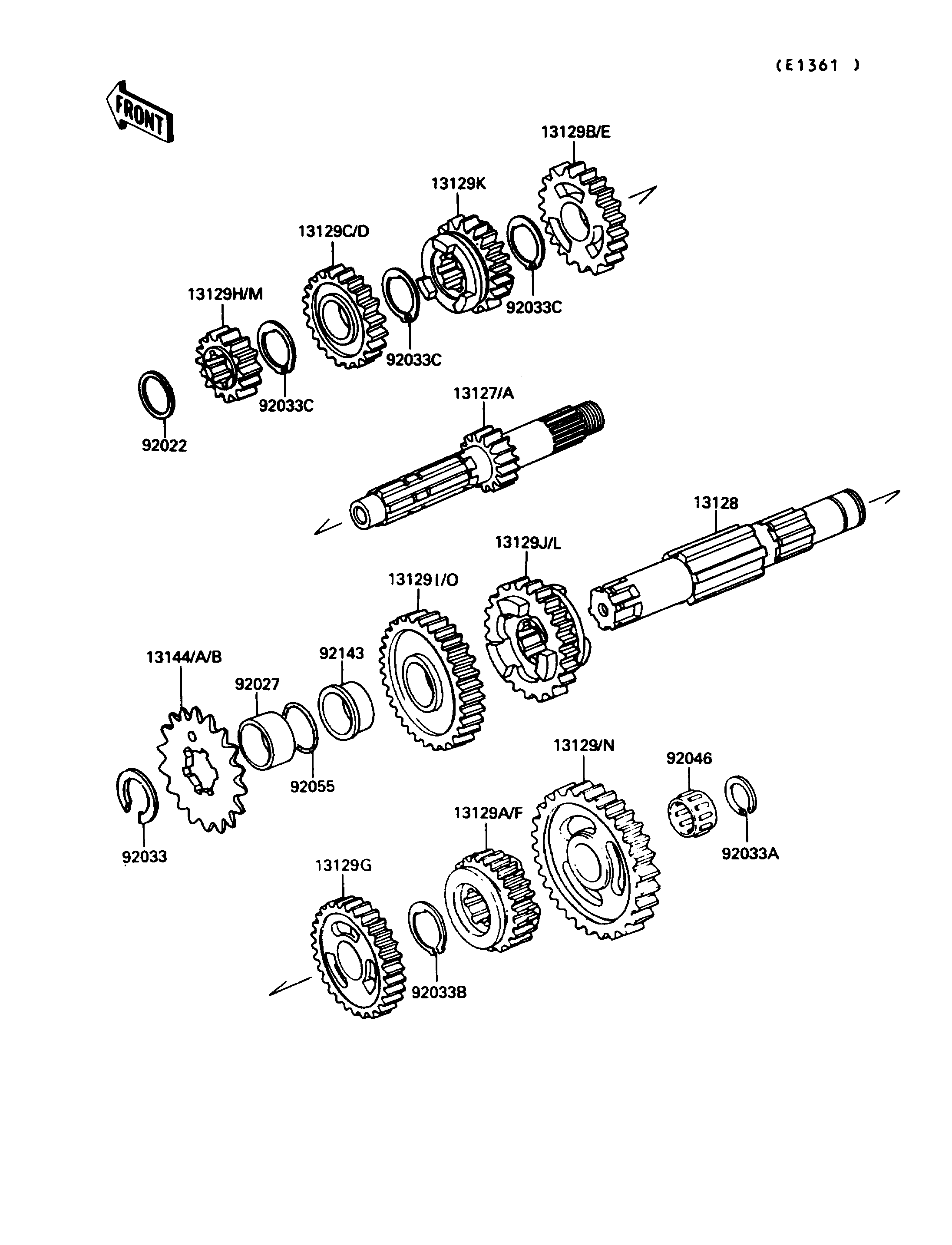

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,15T | 13127 | 13127-1162 | 1 | ||
| SHAFT-TRANSMISSION INPUT,13T | 13127A | 13127-1172 | 1 | (OPTION) | |
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1151 | 1 | ||
| GEAR,OUTPUT LOW,32T | 13129 | 13129-1160 | 1 | ||
| GEAR,OUTPUT TOP,24T | 13129A | 13129-1164 | 1 | ||
| GEAR,INPUT TOP,24T | 13129B | 13129-1206 | 1 | ||
| GEAR,INPUT 4TH,22T | 13129C | 13129-1393 | 1 | ||
| GEAR,INPUT 4TH,20T | 13129D | 13129-1526 | 1 | (OPTION) | |
| GEAR,INPUT TOP,28T | 13129E | 13129-1527 | 1 | (OPTION) | |
| GEAR,OUTPUT TOP,26T | 13129F | 13129-1529 | 1 | (OPTION) | |
| GEAR OUTPUT 3RD,25T | 13129G | 13129-1763 | 1 | ||
| GEAR,INPUT 2ND,16T | 13129H | 13129-1911 | 1 | ||
| GEAR,OUTPUT 2ND,27T | 13129I | 13129-1912 | 1 | ||
| GEAR,OUTPUT 4TH,25T | 13129J | 13129-1913 | 1 | ||
| GEAR,INPUT 3RD,18T | 13129K | 13129-1956 | 1 | ||
| GEAR,OUTPUT 4TH,22T | 13129L | 13129-1970 | 1 | (OPTION) | |
| GEAR,INPUT 2ND,17T | 13129M | 13129-1975 | 1 | (OPTION) | |
| GEAR,OUTPUT LOW,31T | 13129N | 13129-1976 | 1 | (OPTION) | |
| GEAR,OUTPUT 2ND,30T | 13129O | 13129-1977 | 1 | (OPTION) | |
| SPROCKET-OUTPUT,15T | 13144 | 13144-069 | 1 | (OPTION) | |
| SPROCKET-OUTPUT,14T | 13144A | 13144-1005 | 1 | ||
| SPROCKET-OUTPUT,13T | 13144B | 13144-1027 | 1 | (OPTION) | |
| WASHER,17.3X22X0.5 | 92022 | 92022-1799 | 1 | ||
| COLLAR,SPROCKET | 92027 | 92027-1963 | 1 | ||
| RING-SNAP,24MM | 92033 | 92033-026 | 1 | ||
| RING-SNAP,18MM | 92033A | 92033-029 | 1 | ||
| RING-SNAP,25MM | 92033B | 92033-1089 | 1 | ||
| RING-SNAP,20MM | 92033C | 92033-1231 | 3 | ||
| BEARING-NEEDLE,KT202614 | 92046 | 92046-1170 | 1 | ||
| RING-O | 92055 | 92055-035 | 1 | ||
| COLLAR | 92143 | 92143-1157 | 1 |
