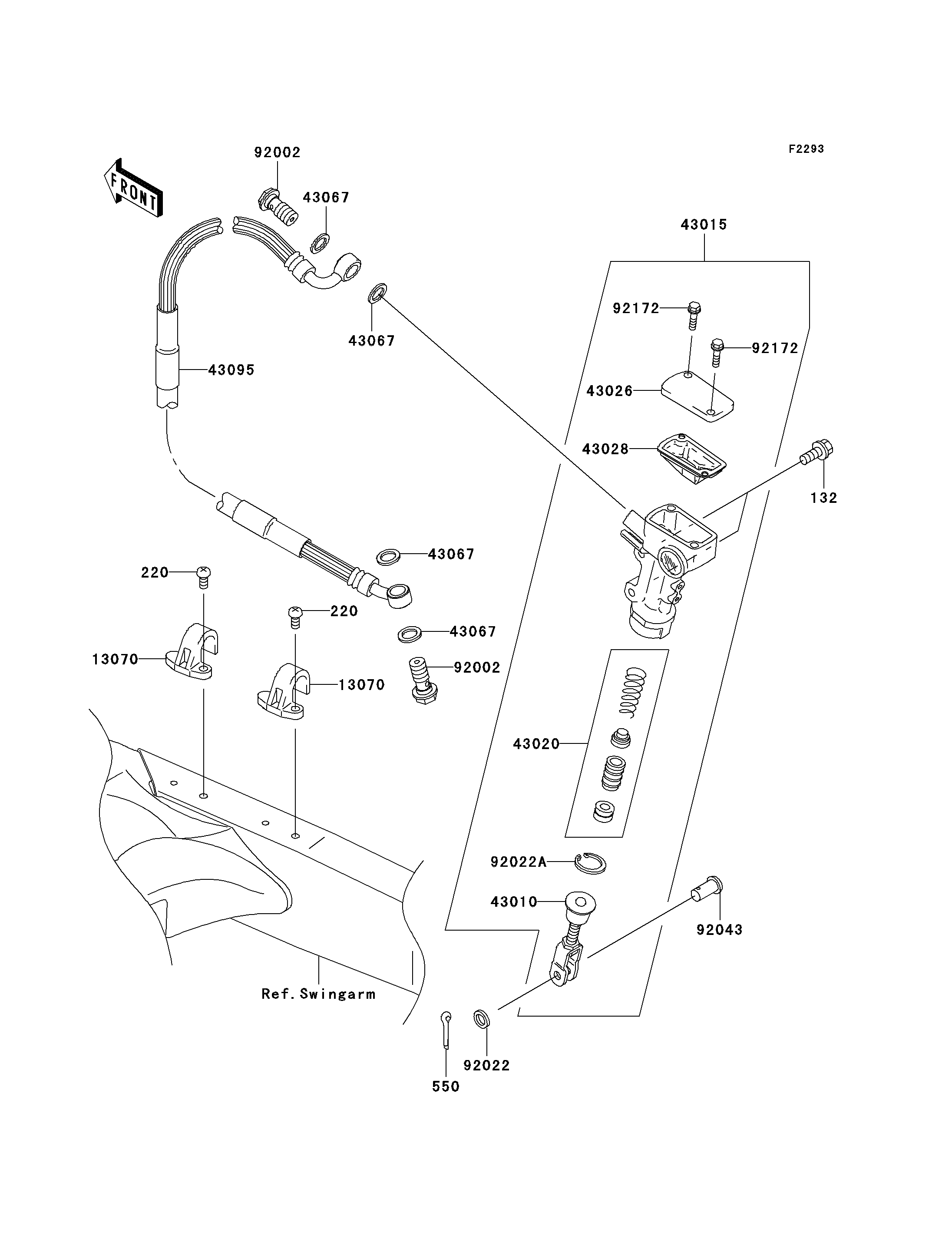

2004 KX125 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
220
220
550
13070
13070
43010
43015
43020
43026
43028
43067
43067
43067
43067
43095
92002
92002
92022
92022A
92043
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0614 2
SCREW-PAN-CROS 220 220B0510 2
PIN-COTTER,2.0X15 550 550D2015 1
GUIDE,BRAKE HOSE 13070 13070-1388 2
ROD-ASSY-BRAKE 43010 43010-0003 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0009 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1086 1
DIAPHRAGM 43028 43028-1092 1
WASHER,10.5X15X1.5 43067 43067-001 4
HOSE-BRAKE,RR 43095 43095-0046 1
BOLT,OIL,L=23 92002 92002-1888 2
WASHER,8.5X13X1 92022 92022-1028 1
WASHER,CIRCRIP 92022A 92022-1601 1
PIN 92043 92043-0004 1
SCREW 92172 92172-1064 2
