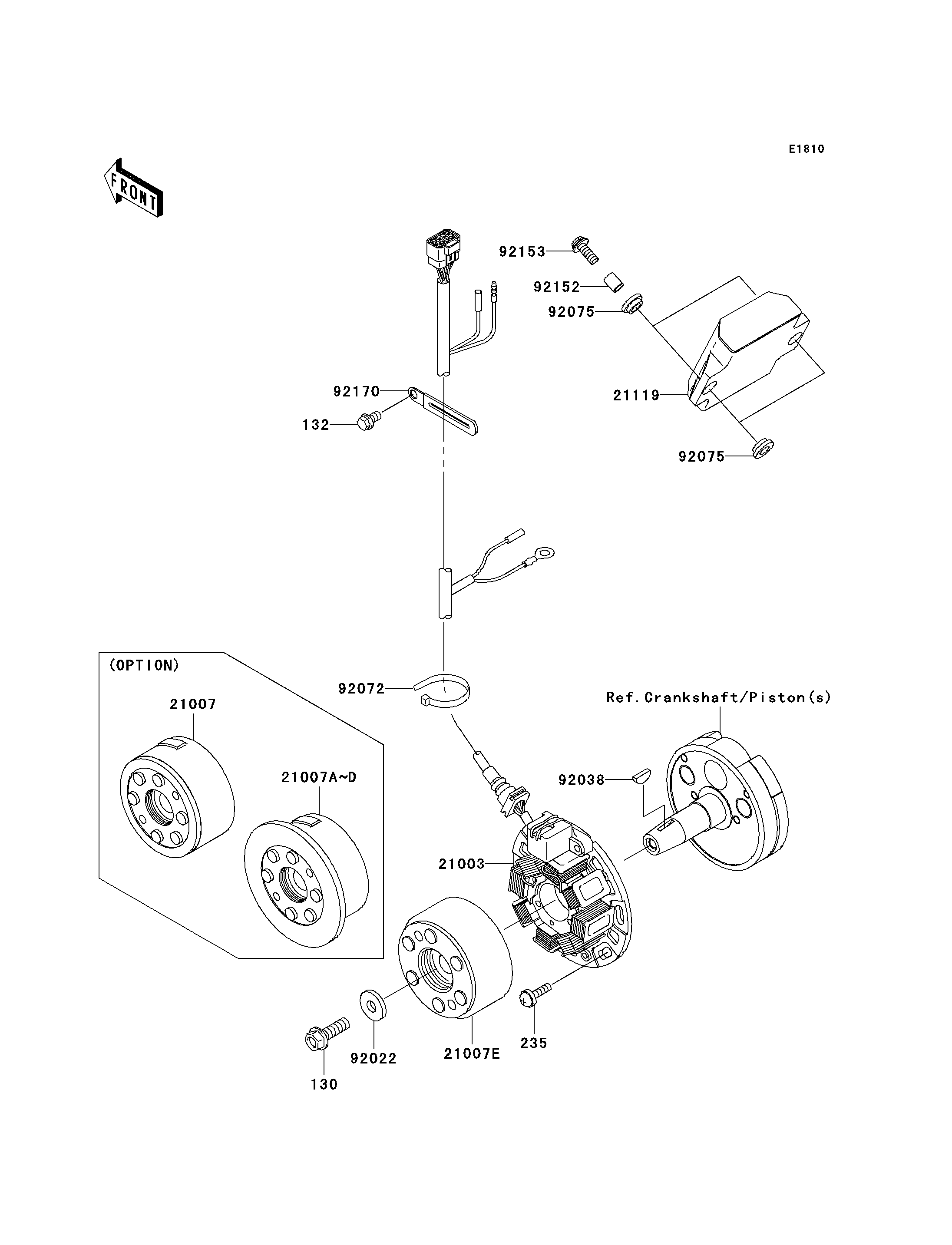

2004 KX125 - Generator

DOWNLOAD PDF
SELECT A NEW PART
130
132
235
21003
21007
21007A
21007B
21007C
21007D
21007E
21119
92022
92038
92072
92075
92075
92152
92153
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130P0825 1
BOLT-FLANGED-SMALL 132 132G0610 1
SCREW-PAN-WP-CROS 235 235B0616 3
STATOR 21003 21003-1394 1
ROTOR,I=4.0KGCM2 21007 21007-1386 1 (OPTION)
ROTOR,I=4.5KGCM2 21007A 21007-1387 1 (OPTION)
ROTOR,I=4.9KGCM2 21007B 21007-1388 1 (OPTION)
ROTOR,I=5.5KGCM2 21007C 21007-1389 1 (OPTION)
ROTOR,I=5.9KGCM2 21007D 21007-1390 1 (OPTION)
ROTOR,I=3.8KGCM2 21007E 21007-1407 1
IGNITER 21119 21119-0006 1
WASHER,8.5X22X3.2 92022 92022-276 1
KEY,WOODRUFF 92038 92038-001 1
BAND,L=140 92072 92072-1293 1
DAMPER,8MM 92075 92075-1138 4
COLLAR,IGNITER 92152 92152-1421 2
BOLT,6X20 92153 92153-0626 2
CLAMP 92170 92170-1514 1
