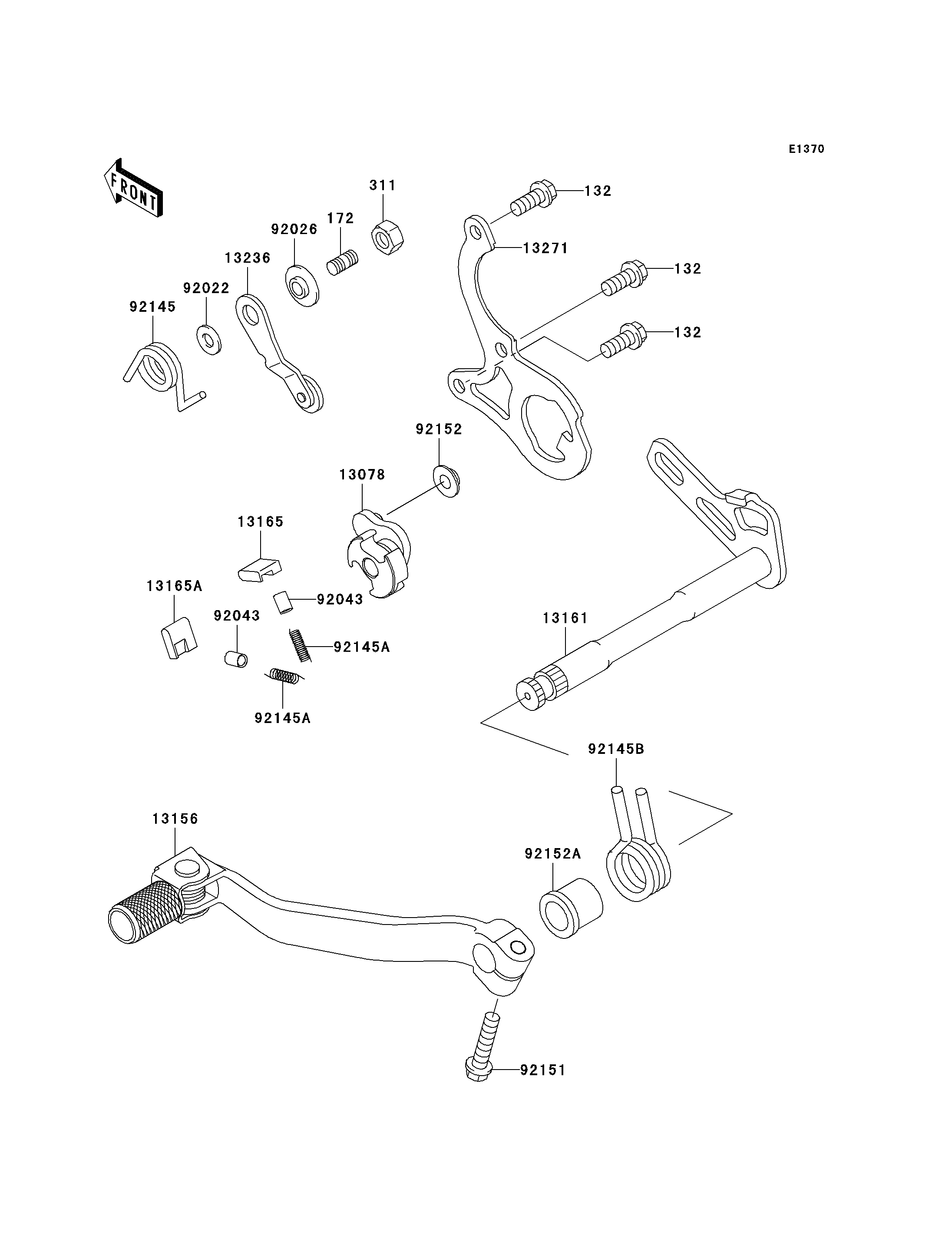

Parts Diagrams |
132
132
132
172
311
13078
13156
13161
13165
13165A
13236
13271
92022
92026
92043
92043
92145
92145A
92145A
92145B
92151
92152
92152A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132G0614 | 3 | ||
| BOLT-STUD,6X12 | 172 | 172G0612 | 1 | ||
| NUT-HEX,6MM | 311 | 311G0600 | 1 | ||
| RATCHET | 13078 | 13078-1071 | 1 | ||
| LEVER-CHANGE | 13156 | 13156-1493 | 1 | ||
| LEVER-COMP-CHANGE SHAFT | 13161 | 13161-0007 | 1 | ||
| PAWL | 13165 | 13165-1162 | 1 | ||
| PAWL | 13165A | 13165-1163 | 1 | ||
| LEVER-COMP,POSITION | 13236 | 13236-1393 | 1 | ||
| PLATE,PAWL GUIDE | 13271 | 13271-1824 | 1 | ||
| WASHER,6X12.8X1.2 | 92022 | 92022-1827 | 1 | ||
| SPACER | 92026 | 92026-1217 | 1 | ||
| PIN,PLUNGER | 92043 | 92043-1676 | 2 | ||
| SPRING,POSITION | 92145 | 92145-0064 | 1 | ||
| SPRING | 92145A | 92145-1490 | 2 | ||
| SPRING,RETURN | 92145B | 92145-1493 | 1 | ||
| BOLT,6X25 | 92151 | 92151-1130 | 1 | ||
| COLLAR | 92152 | 92152-1414 | 1 | ||
| COLLAR,RETURN SPRING | 92152A | 92152-1419 | 1 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-STUD,6X12 | |
| REF # | 172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET | |
| REF # | 13078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-CHANGE | |
| REF # | 13156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP-CHANGE SHAFT | |
| REF # | 13161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAWL | |
| REF # | 13165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAWL | |
| REF # | 13165A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP,POSITION | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,PAWL GUIDE | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6X12.8X1.2 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,PLUNGER | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,POSITION | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,RETURN | |
| REF # | 92145B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,RETURN SPRING | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
