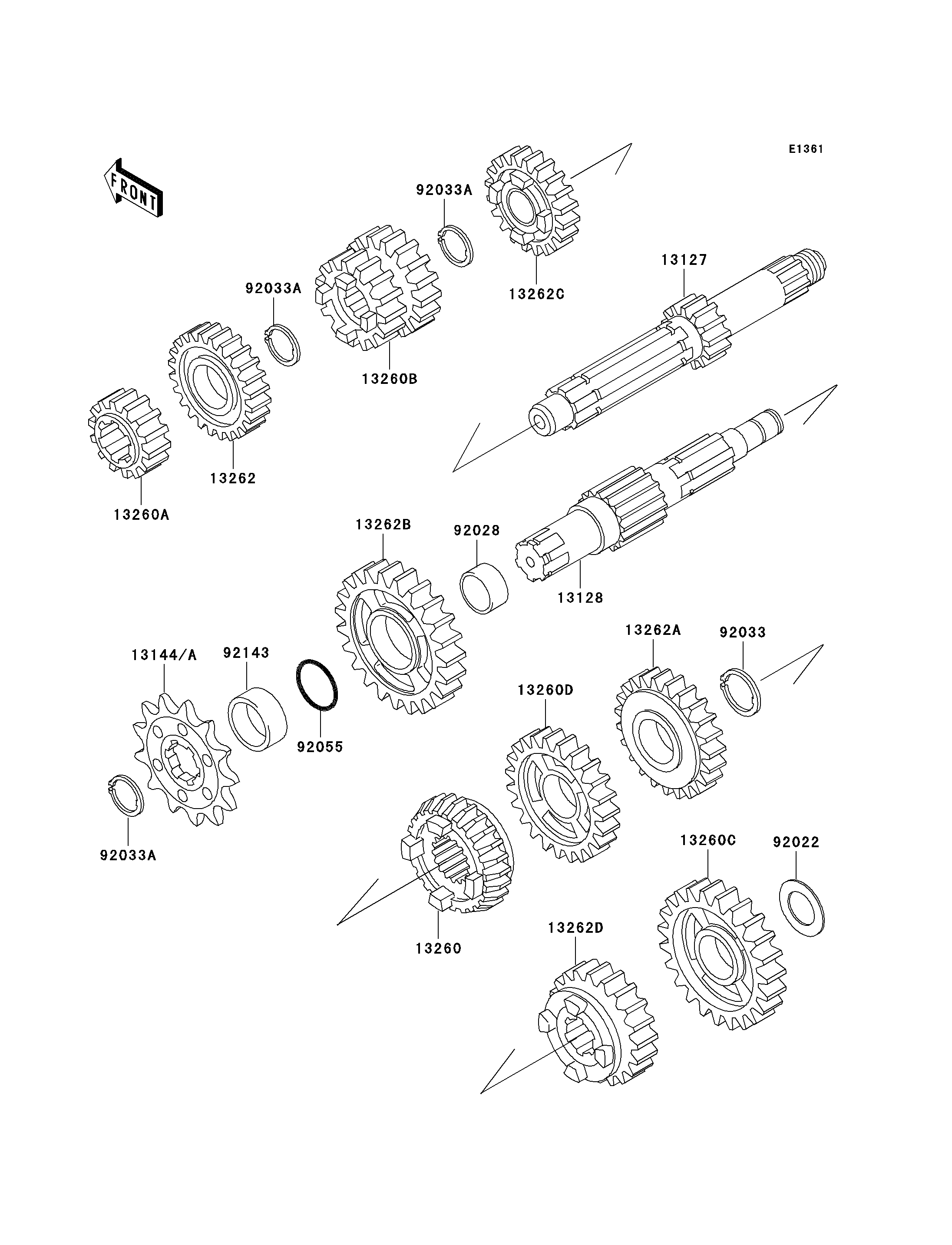

2004 KX125 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13127
13128
13144
13144A
13260
13260A
13260B
13260C
13260D
13262
13262A
13262B
13262C
13262D
92022
92028
92033
92033A
92033A
92033A
92055
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,13T 13127 13127-1293 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1257 1
SPROCKET-OUTPUT,12T 13144 13144-1293 1 (OPTION)
SPROCKET-OUTPUT 13144A 13144-1326 1
GEAR,OUTPUT TOP,25T 13260 13260-1517 1
GEAR,INPUT 2ND,14T 13260A 13260-1748 1
GEAR,INPUT 3RD&4TH,17T&17T 13260B 13260-1749 1
GEAR,OUTPUT LOW,31T 13260C 13260-1752 1
GEAR,OUTPUT 3RD,26T 13260D 13260-1754 1
GEAR,INPUT TOP,25T 13262 13262-0058 1
GEAR,OUTPUT 4TH,22T 13262A 13262-0095 1
GEAR,OUTPUT 2ND,26T 13262B 13262-0117 1
GEAR,INPUT 5TH,24T 13262C 13262-1055 1
GEAR,OUTPUT 5TH,27T 13262D 13262-1056 1
WASHER,17.3X28X1 92022 92022-255 1
BUSHING,OUTPUT,2ND 92028 92028-1732 1
RING-SNAP,25MM 92033 92033-1089 1
RING-SNAP,20MM 92033A 92033-1231 3
RING-O 92055 92055-035 1
COLLAR 92143 92143-1705 1
