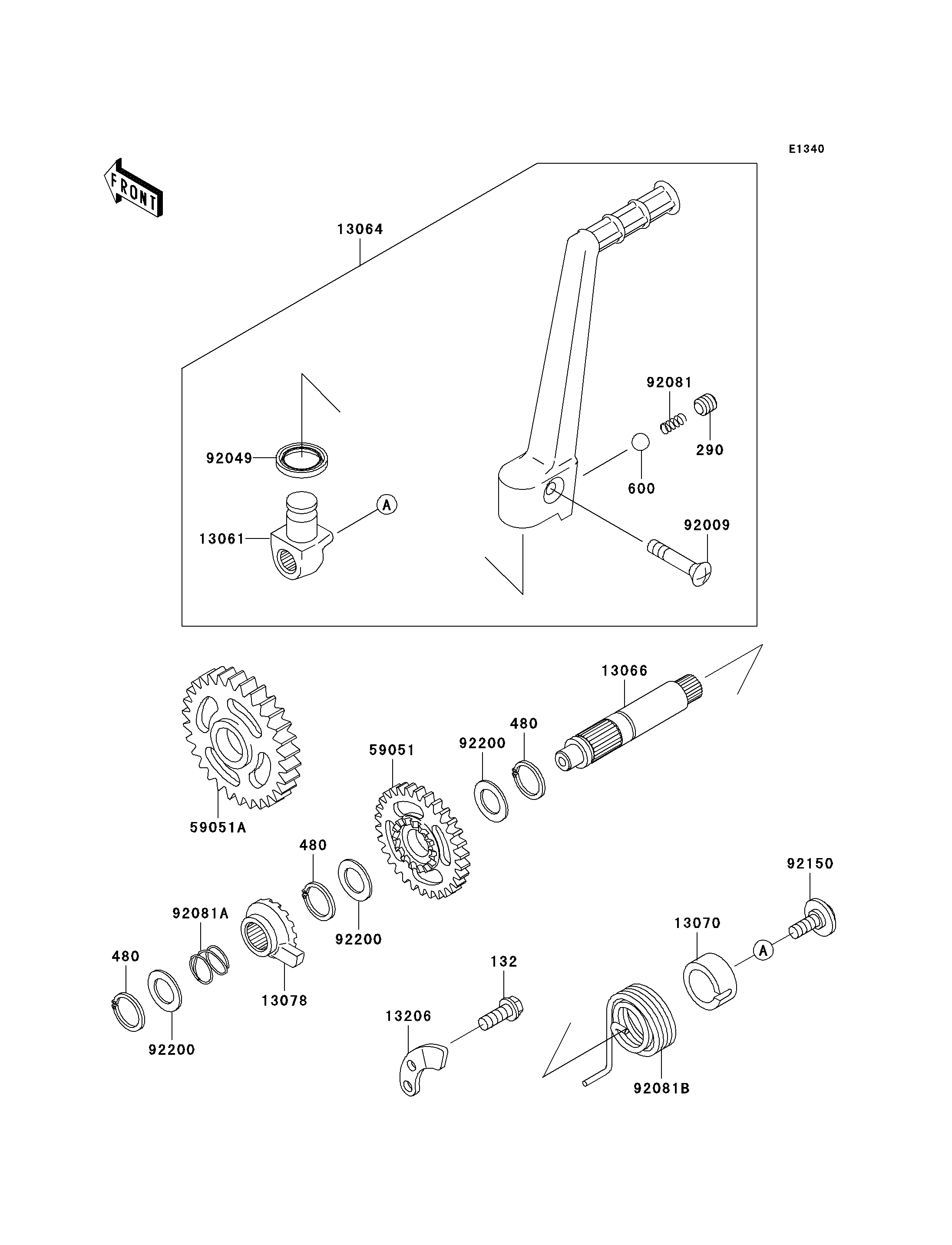

Parts Diagrams |
132
290
480
480
480
600
13061
13064
13066
13070
13078
13206
59051
59051A
92009
92049
92081
92081A
92081B
92150
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132G0616 | 1 | ||
| SCREW-SET-SOCKET | 290 | 290P0808 | 1 | ||
| CIRCLIP-TYPE-C,16MM | 480 | 480J1600 | 3 | ||
| BALL-STEEL,1/4" | 600 | 600A0800 | 1 | ||
| BOSS | 13061 | 13061-1853 | 1 | ||
| LEVER-ASSY-KICK | 13064 | 13064-0001 | 1 | ||
| SHAFT-KICK | 13066 | 13066-1101 | 1 | ||
| GUIDE,KICK SPRING | 13070 | 13070-1007 | 1 | ||
| RATCHET | 13078 | 13078-1052 | 1 | ||
| GUIDE-KICK | 13206 | 13206-1061 | 1 | ||
| GEAR-SPUR,KICK 30T | 59051 | 59051-1405 | 1 | ||
| GEAR-SPUR,IDLE 31T | 59051A | 59051-1406 | 1 | ||
| SCREW,6X27 | 92009 | 92009-1607 | 1 | ||
| SEAL-OIL,KICK PEDAL | 92049 | 92049-1387 | 1 | ||
| SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
| SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
| SPRING,KICKSTARTER | 92081B | 92081-1768 | 1 | ||
| BOLT,SOCKET,6X16 | 92150 | 92150-1673 | 1 | ||
| WASHER,KICKSHAFT | 92200 | 92200-1209 | 3 |
