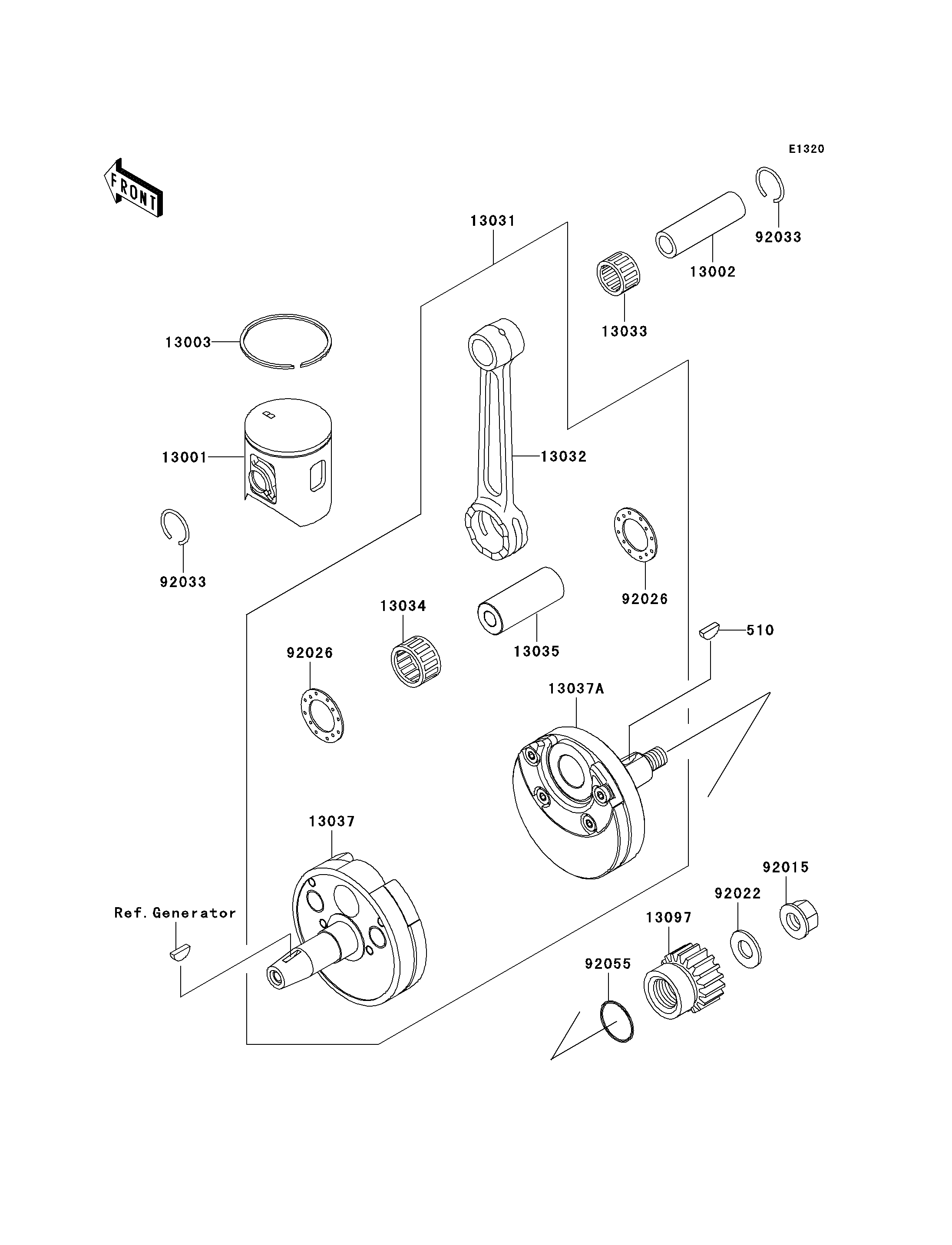

2004 KX125 - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
510
13001
13002
13003
13031
13032
13033
13034
13035
13037
13037A
13097
92015
92022
92026
92026
92033
92033
92055
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
KEY-WOODRUFF 510 510A5100 1
PISTON-ENGINE,SIZE B 13001 13001-0009 1
PIN-PISTON 13002 13002-1099 1
RING-PISTON TOP 13003 13003-0020 1
CRANKSHAFT-COMP 13031 13031-0017 1
ROD-CONNECTING 13032 13032-0010 1
BEARING-SMALL END 13033 13033-1057 1
BEARING-BIG END,B4 13034 13034-1099 1
PIN-CRANK 13035 13035-1096 1
CRANKSHAFT,LH 13037 13037-0017 1
CRANKSHAFT,RH 13037A 13037-0018 1
GEAR-PRIMARY SPUR 13097 13097-0007 1
NUT,FLANGED,12MM 92015 92015-1156 1
WASHER 92022 92022-1831 1
SPACER 92026 92026-1546 2
RING-SNAP 92033 92033-1335 2
RING-O 92055 92055-086 1
