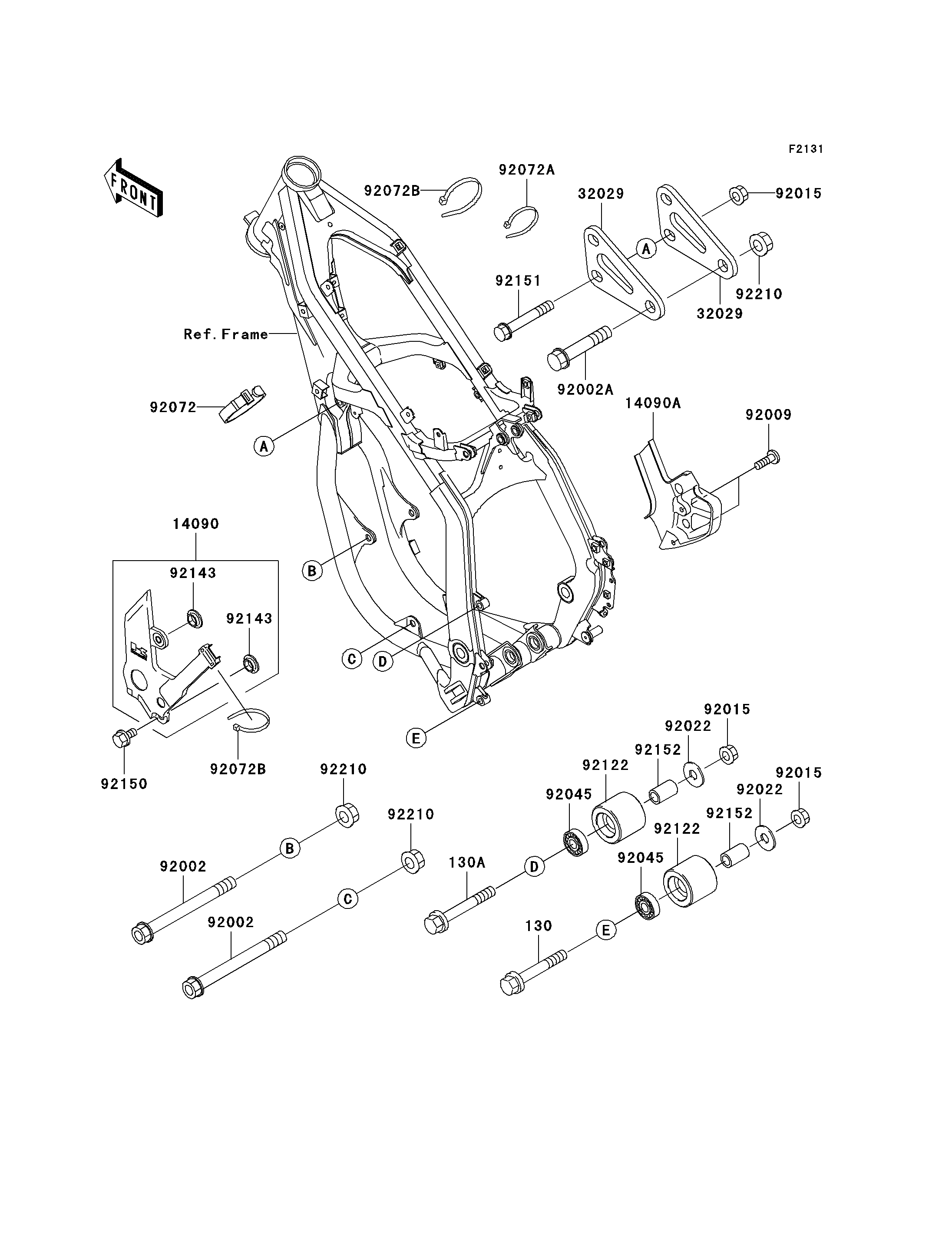

2002 KX125 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130A
14090
14090A
32029
32029
92002
92002
92002A
92009
92015
92015
92015
92022
92022
92045
92045
92072
92072A
92072B
92072B
92122
92122
92143
92143
92150
92151
92152
92152
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X55 130 130G0855 1
BOLT-FLANGED,8X60 130A 130G0860 1
COVER,FRAME PIVOT,LH,F.BLACK 14090 14090-1970-6Z 1
COVER,FRAME PIVOT,RH,F.BLACK 14090A 14090-1971-6Z 1
BRACKET-ENGINE 32029 32029-1896 2
BOLT,FLANGED,10X105 92002 92002-1491 2
BOLT,FLANGED,10X53 92002A 92002-1936 1
SCREW,6X18,WHITE 92009 92009-1111 2
NUT,8MM 92015 92015-1432 4
WASHER,8.5X22X1.5 92022 92022-1629 2
BEARING-BALL,608LLU/2A 92045 92045-1009 2
BAND,L=149 92072 92072-031 1
BAND,L=186 92072A 92072-056 1
BAND,L=202 92072B 92072-1195 4
ROLLER,CHAIN GUIDE 92122 92122-1216 2
COLLAR 92143 92143-1196 2
BOLT,6X12 92150 92150-1435 1
BOLT,FLANGED,8X52 92151 92151-1377 2
COLLAR,8.5X12.5X20.5 92152 92152-1340 2
NUT,LOCK,FLANGED,10MM 92210 92210-1080 3
