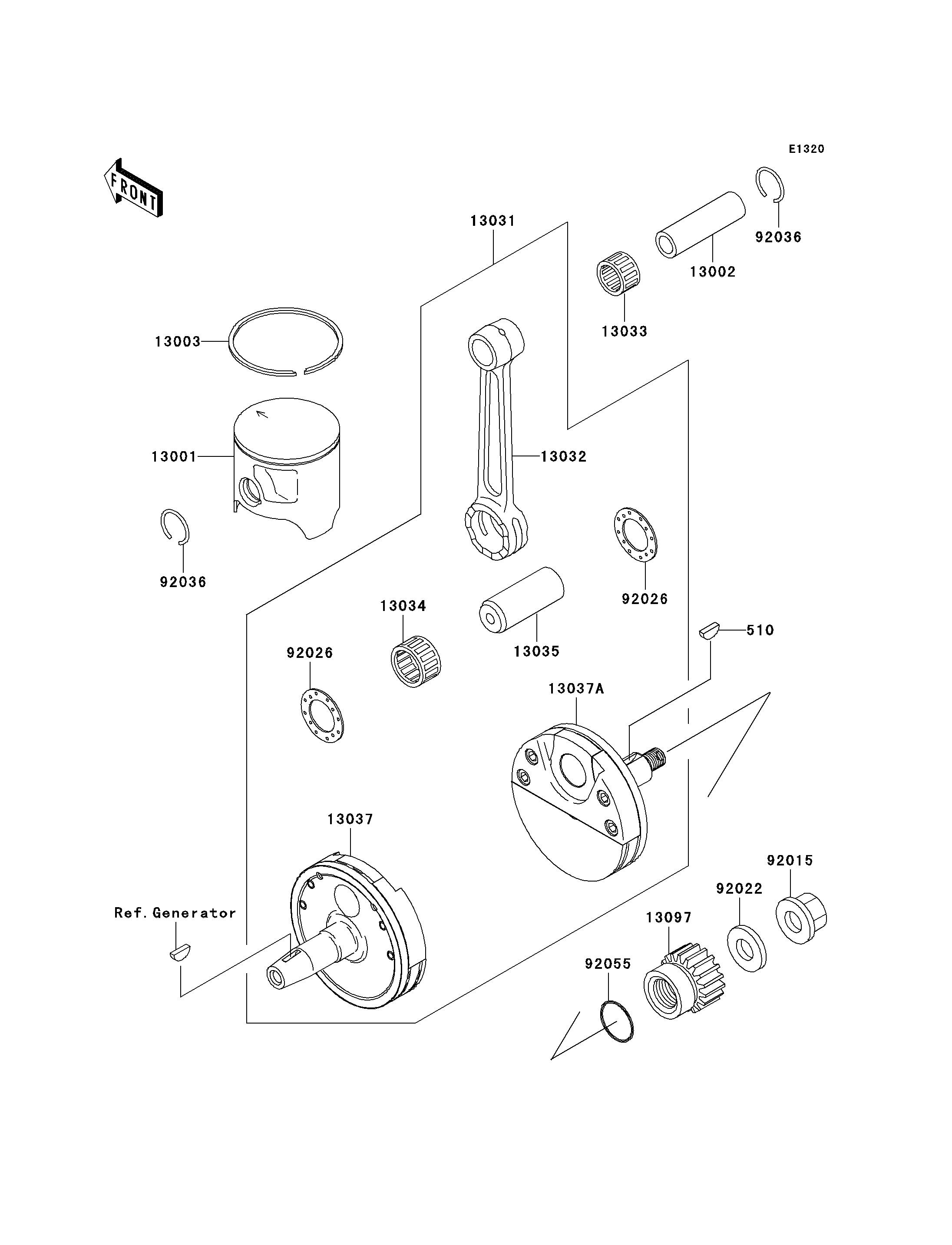

Parts Diagrams |
510
13001
13002
13003
13031
13032
13033
13034
13035
13037
13037A
13097
92015
92022
92026
92026
92036
92036
92055
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| KEY-WOODRUFF | 510 | 510A5100 | 1 | ||
| PISTON-ENGINE | 13001 | 13001-1607 | 1 | ||
| PIN-PISTON | 13002 | 13002-1099 | 1 | ||
| RING-PISTON TOP | 13003 | 13003-1356 | 1 | ||
| CRANKSHAFT-COMP | 13031 | 13031-1494 | 1 | ||
| ROD-CONNECTING | 13032 | 13032-1253 | 1 | ||
| BEARING-SMALL END | 13033 | 13033-1057 | 1 | ||
| BEARING-BIG END,B4 | 13034 | 13034-1099 | 1 | ||
| PIN-CRANK | 13035 | 13035-1010 | 1 | ||
| CRANKSHAFT,LH | 13037 | 13037-1651 | 1 | ||
| CRANKSHAFT,RH | 13037A | 13037-1653 | 1 | ||
| GEAR-PRIMARY SPUR,20T | 13097 | 13097-1399 | 1 | ||
| NUT,FLANGED,12MM | 92015 | 92015-1156 | 1 | ||
| WASHER | 92022 | 92022-1831 | 1 | ||
| SPACER | 92026 | 92026-1546 | 2 | ||
| RING-SNAP | 92036 | 92036-005 | 2 | ||
| RING-O | 92055 | 92055-086 | 1 |
