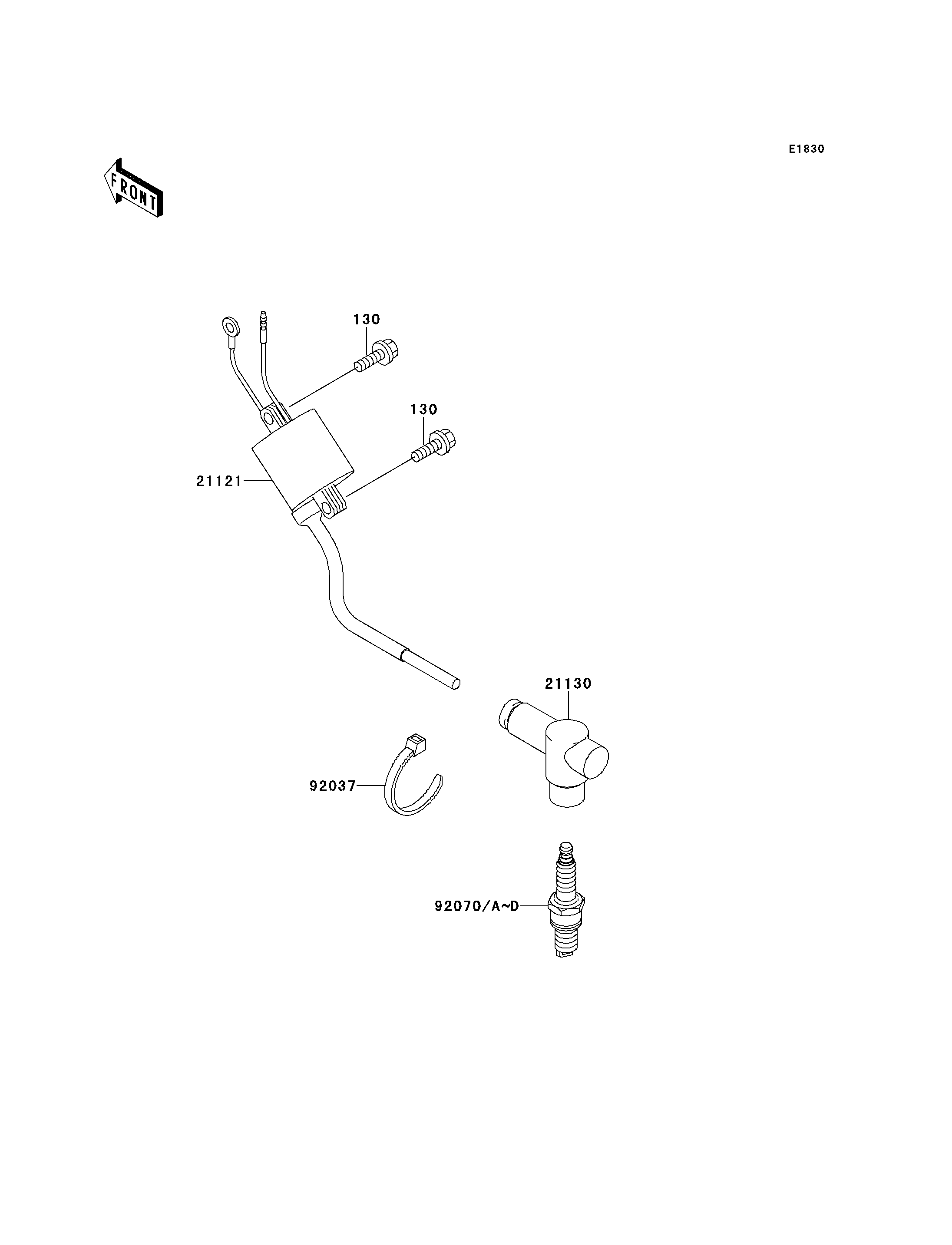

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130G0520 | 2 | ||
| COIL-IGNITION | 21121 | 21121-1282 | 1 | ||
| CAP-SPARK PLUG | 21130 | 21130-1077 | 1 | ||
| CLAMP | 92037 | 92037-1173 | 1 | ||
| PLUG-SPARK,W31ESR-ZU(ND) | 92070 | 1 | (OPTION) | ||
| PLUG-SPARK,BR9EVX(NGK),SOLID | 92070A | 92070-1228 | 1 | ||
| PLUG-SPARK,R6385-9P(NGK) | 92070B | 92070-1236 | 1 | (OPTION) | |
| PLUG-SPARK,R6252E-9(NGK) | 92070C | 92070-1238 | 1 | (OPTION) | |
| PLUG-SPARK,R6252K-105NGK,SOLID | 92070D | 92070-1241 | 1 | (OPTION) |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COIL-IGNITION | |
| REF # | 21121 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-SPARK PLUG | |
| REF # | 21130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,W31ESR-ZU(ND) | |
| REF # | 92070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,BR9EVX(NGK),SOLID | |
| REF # | 92070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG-SPARK,R6385-9P(NGK) | |
| REF # | 92070B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,R6252E-9(NGK) | |
| REF # | 92070C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PLUG-SPARK,R6252K-105NGK,SOLID | |
| REF # | 92070D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
