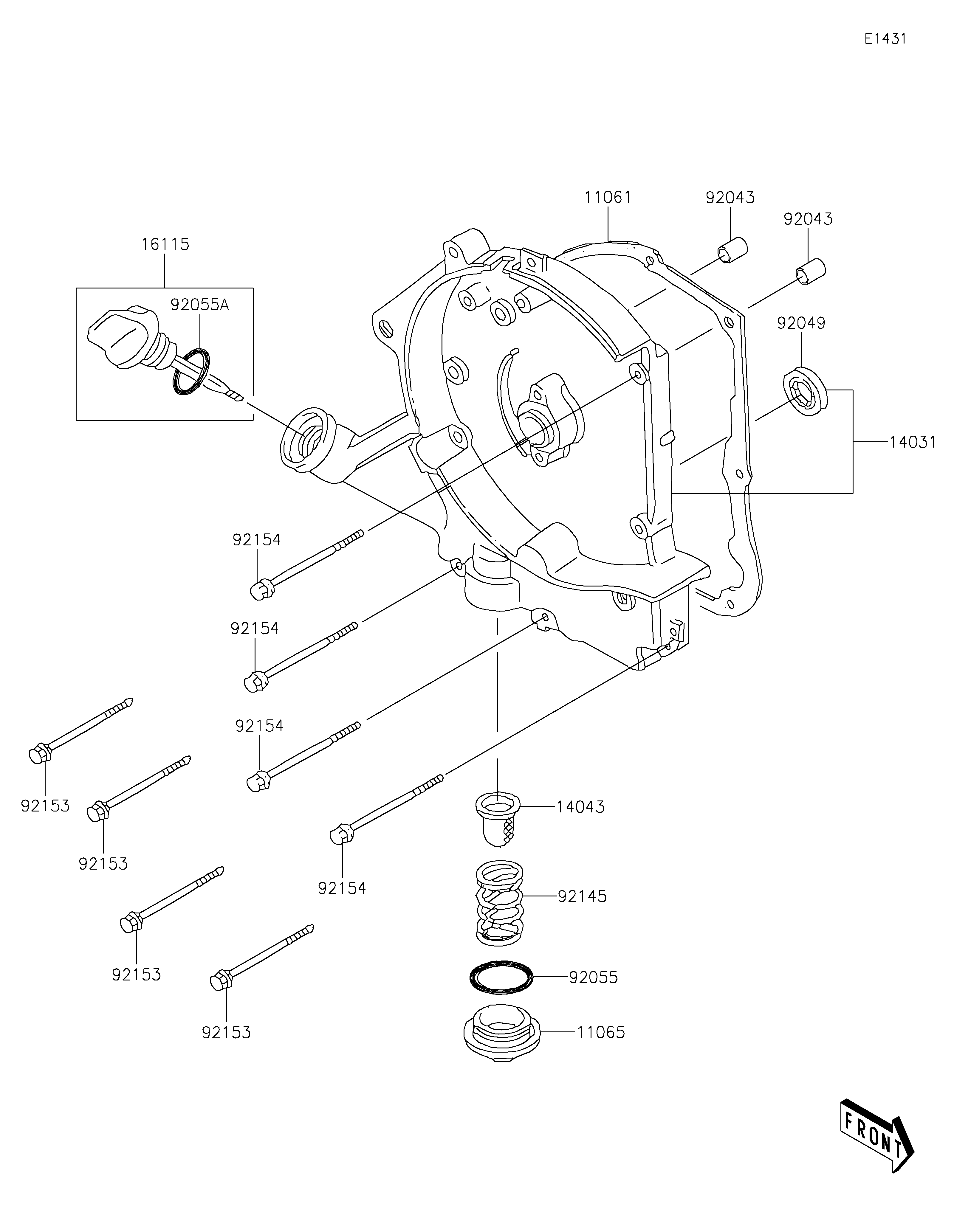

2020 KFX®50 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11065
14031
14043
16115
92043
92043
92049
92055
92055A
92145
92153
92153
92153
92153
92154
92154
92154
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR 11061 11061-Y004 1
CAP 11065 11065-Y006 1
COVER-GENERATOR 14031 14031-Y002 1
FILTER,OIL 14043 14043-Y001 1
CAP-OIL FILLER 16115 16115-Y001 1
PIN,8X14 92043 92043-Y012 2
SEAL-OIL,16.4X30X5 92049 92049-Y002 1
RING-O,30.8MM 92055 92055-Y005 1
RING-O,18X3 92055A 92055-Y011 1
SPRING 92145 92145-Y005 1
BOLT,FLANGE,6X85 92153 92153-Y055 4
BOLT,FLANGE,6X100 92154 92154-Y144 4
