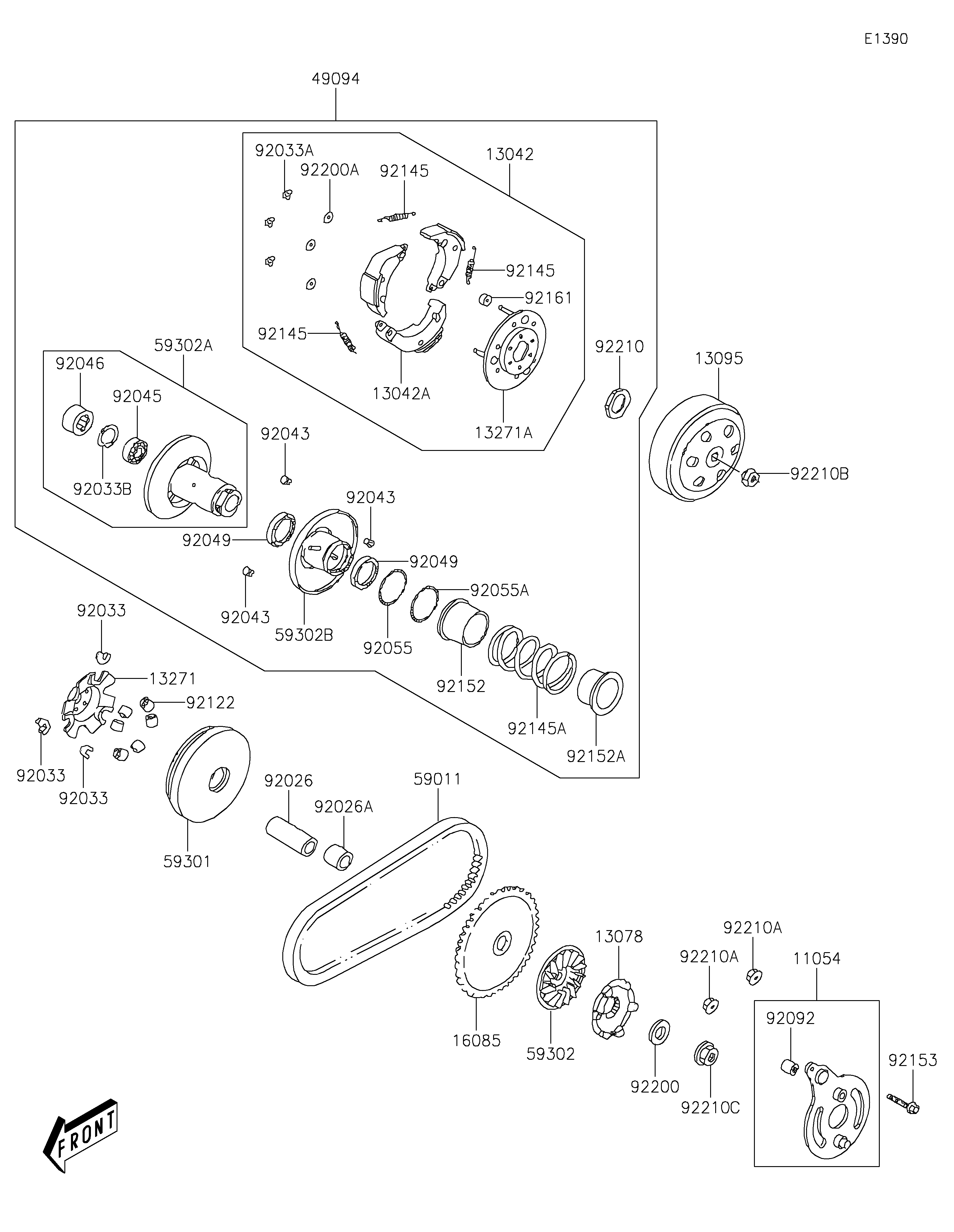

2020 KFX®50 - Belt Converter

DOWNLOAD PDF
SELECT A NEW PART
11054
13042
13042A
13078
13095
13271
13271A
16085
49094
59011
59301
59302
59302A
59302B
92026
92026A
92033
92033
92033
92033A
92033B
92043
92043
92043
92045
92046
92049
92049
92055
92055A
92092
92122
92145
92145
92145
92145A
92152
92152A
92153
92161
92200
92200A
92210
92210A
92210A
92210B
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ENG HANGER 11054 11054-Y006 1
WEIGHT,ASSY 13042 13042-Y001 1
WEIGHT,CLUTCH 13042A 13042-Y003 3
RATCHET,KICK STARTER 13078 13078-Y001 1
HOUSING-COMP-CLUTCH 13095 13095-Y001 1
PLATE,MOVABLE DRIVE 13271 13271-Y004 1
PLATE,DRIVE COMP 13271A 13271-Y005 1
GEAR 16085 16085-Y003 1
CONVERTER-ASSY-DRIVEN 49094 49094-Y002 1
BELT,DRIVE 59011 59011-Y001 1
SHEAVE-MOVABLE 59301 59301-Y001 1
SHEAVE-COMP,FIEXED DRIVE 59302 59302-Y002 1
SHEAVE-COMP,FIXED 59302A 59302-Y003 1
SHEAVE-COMP,MOVABLE 59302B 59302-Y005 1
SPACER 92026 92026-Y001 1
SPACER 92026A 92026-Y003 1
RING-SNAP 92033 92033-Y005 3
RING-SNAP,6MM 92033A 92033-Y007 3
RING-SNAP 92033B 92033-Y013 1
PIN,GUIDE 92043 92043-Y003 3
BEARING-BALL,6901U 92045 92045-Y001 1
BEARING-NEEDLE,17X25X18 92046 92046-Y001 1
SEAL-OIL,34X39X3 92049 92049-Y007 2
RING-O,36X1.5 92055 92055-Y004 1
RING-O,39.8X2.2 92055A 92055-Y006 1
BUSHING-RUBBER 92092 92092-Y002 1
ROLLER 92122 92122-Y002 6
SPRING,CLUTCH 92145 92145-Y006 3
SPRING 92145A 92145-Y008 1
COLLAR,SEAL 92152 92152-Y002 1
COLLAR,SPRING 92152A 92152-Y004 1
BOLT,FLANGE,8X50 92153 92153-Y037 1
DAMPER 92161 92161-Y002 3
WASHER,12MM 92200 92200-Y003 1
WASHER,6MM 92200A 92200-Y005 3
NUT,28MM 92210 92210-Y002 1
NUT,8MM 92210A 92210-Y013 2
NUT,FLANGE,10MM 92210B 92210-Y058 1
NUT,12MM 92210C 92210-Y077 1
