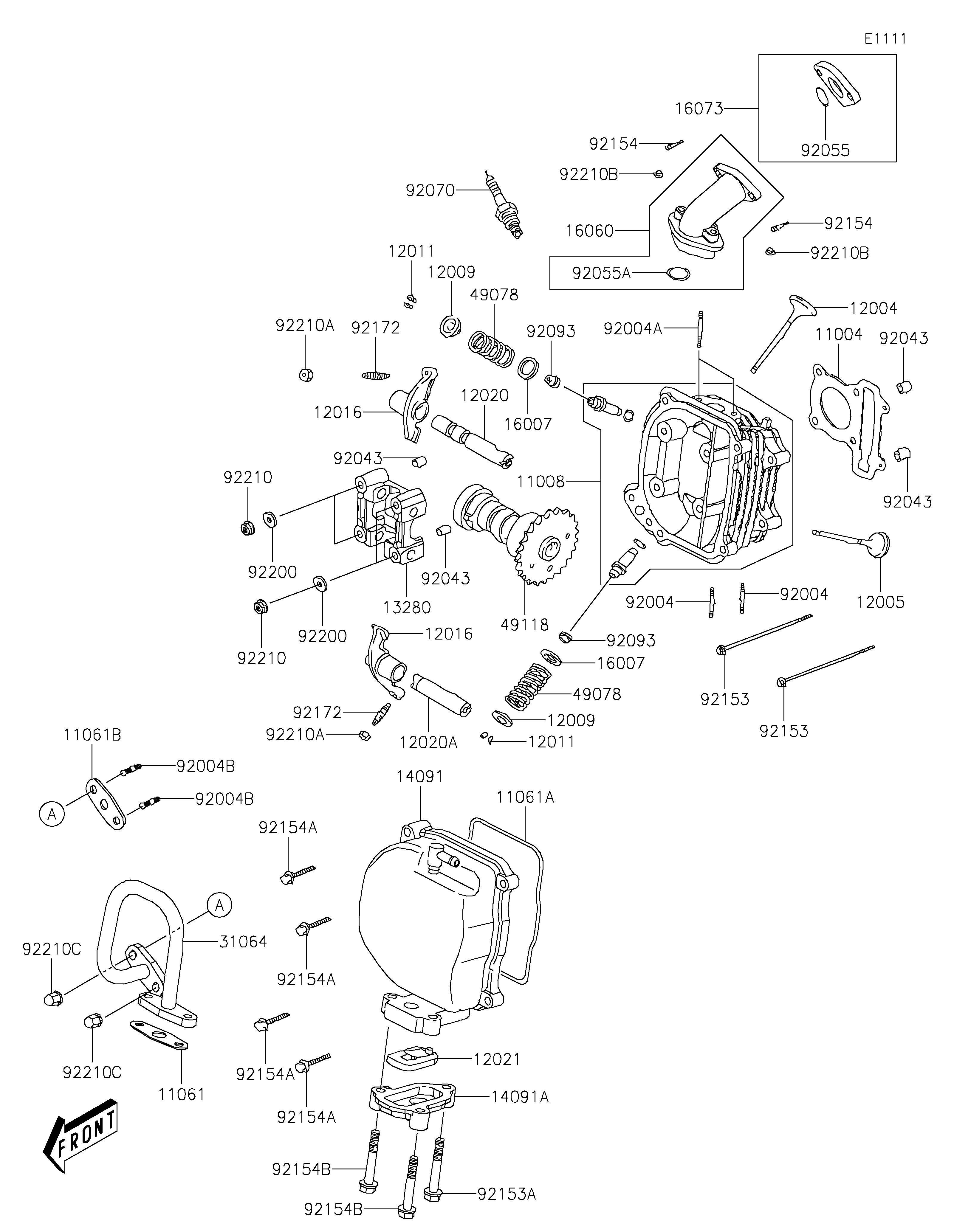

2020 KFX®50 - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11004
11008
11008
11061
11061
11061A
11061A
11061B
11061B
12004
12004
12005
12005
12009
12009
12009
12009
12011
12011
12011
12011
12016
12016
12016
12016
12020
12020
12020A
12020A
12021
12021
13280
13280
14091
14091
14091A
14091A
16007
16007
16007
16007
16060
16060
16073
16073
31064
31064
49078
49078
49078
49078
49118
49118
92004
92004
92004
92004
92004A
92004A
92004B
92004B
92004B
92004B
92043
92043
92043
92043
92043
92043
92043
92043
92055
92055
92055A
92055A
92070
92070
92093
92093
92093
92093
92153
92153
92153
92153
92153A
92153A
92154
92154
92154
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154B
92154B
92154B
92154B
92172
92172
92172
92172
92200
92200
92200
92200
92210
92210
92210
92210
92210A
92210A
92210A
92210A
92210B
92210B
92210B
92210B
92210C
92210C
92210C
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-Y001 1
HEAD-COMP-CYLINDER 11008 11008-Y003 1
GASKET 11061 11061-Y018 1
GASKET,CYLINDER HEAD COVER 11061A 11061-Y019 1
GASKET 11061B 11061-Y020 1
VALVE-INTAKE 12004 12004-Y001 1
VALVE-EXHAUST 12005 12005-Y001 1
RETAINER-VALVE SPRING 12009 12009-Y001 2
COLLET 12011 12011-Y001 4
ARM-ROCKER 12016 12016-Y002 2
SHAFT-ROCKER,IN 12020 12020-Y002 1
SHAFT-ROCKER,EX 12020A 12020-Y004 1
VALVE-ASSY-REED 12021 12021-Y001 1
HOLDER,CAMSHAFT 13280 13280-Y001 1
COVER,CYLINDER HEAD 14091 14091-Y014 1
COVER,REED VALVE 14091A 14091-Y015 1
SEAT-SPRING 16007 16007-Y001 2
PIPE-INTAKE 16060 16060-Y003 1
INSULATOR 16073 16073-Y002 1
PIPE-COMP 31064 31064-Y003 1
SPRING-ENGINE VALVE,OUTER 49078 49078-Y001 2
CAMSHAFT-COMP 49118 49118-Y001 1
STUD,6X32 92004 92004-Y005 2
STUD,6X50 92004A 92004-Y007 2
STUD,6X28 92004B 92004-Y011 2
PIN,8X14 92043 92043-Y006 4
RING-O,23X2.4 92055 92055-Y007 1
RING-O,22X2.0 92055A 92055-Y008 1
PLUG-SPARK,CR7HSA 92070 92070-Y002 1
SEAL 92093 92093-Y025 2
BOLT,FLANGE,6X85 92153 92153-Y055 2
BOLT,FLANGE,6X25 92153A 92153-Y065 1
BOLT,FLANGE,6X25 92154 92154-Y066 2
BOLT,FLANGE,6X25 92154A 92154-Y130 4
BOLT,FLANGE,6X40 92154B 92154-Y131 2
SCREW 92172 92172-Y003 2
WASHER,7MM 92200 92200-Y006 4
NUT,7MM 92210 92210-Y003 4
NUT 92210A 92210-Y004 2
NUT,6MM 92210B 92210-Y026 2
NUT,6MM 92210C 92210-Y035 2
