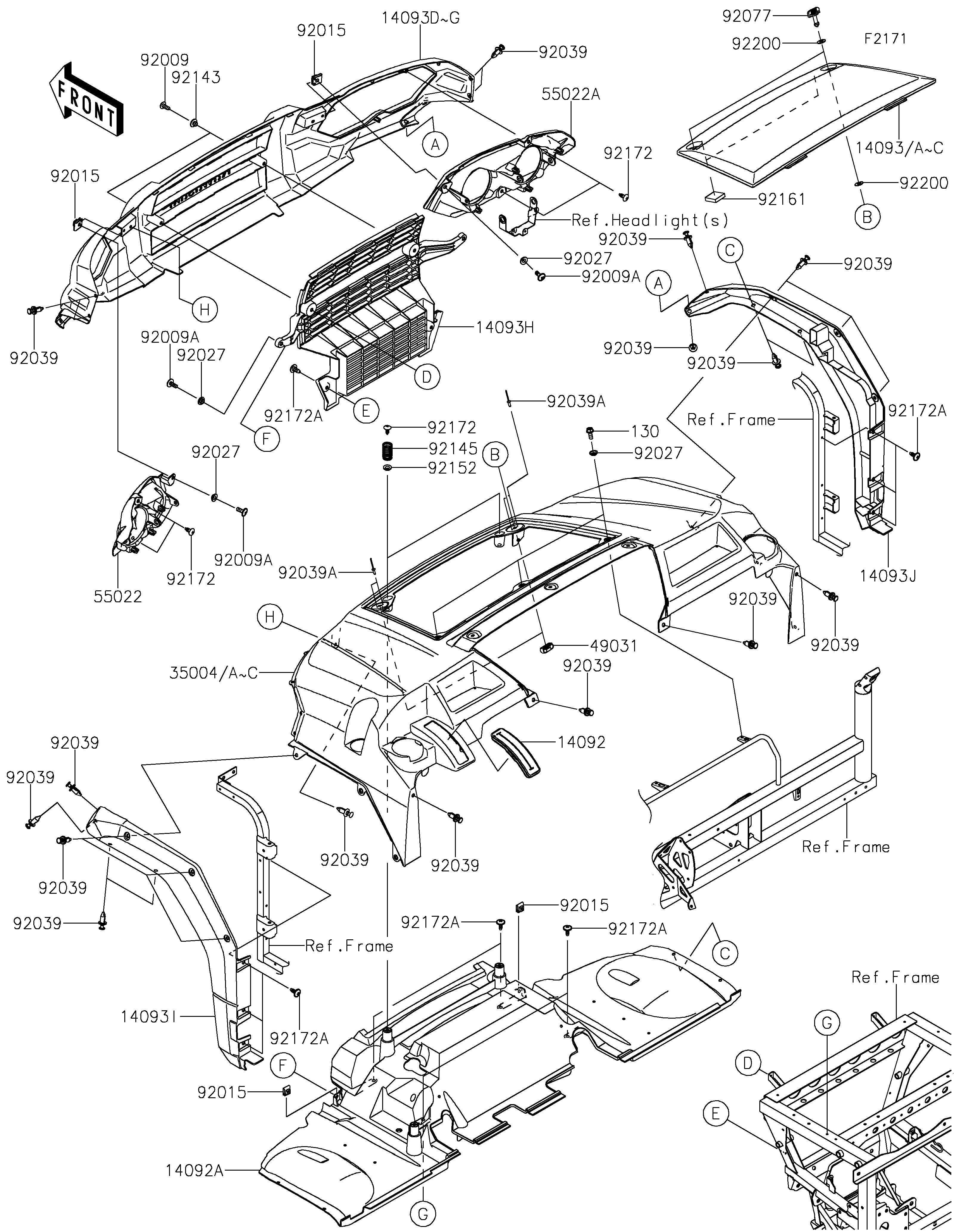

2018 MULE PRO-FXR™ - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
14092
14092A
14093A
14093C
14093E
14093G
14093H
14093I
14093J
35004A
35004C
49031
55022
55022A
92009
92009A
92009A
92009A
92015
92015
92015
92015
92027
92027
92027
92027
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039A
92039A
92077
92143
92145
92152
92161
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130CA0616 3
COVER,CENTER CONSOLE,TOP 14092 14092-0791 1
COVER,TOP,FR INNER 14092A 14092-1194 1
COVER,OPEN,A.SILVER 14093A 14093-0019-57N 1
COVER,OPEN,C.P.RED 14093C 14093-0019-V9 1
COVER,FR GRILLE,A.SILVER 14093E 14093-0583-57N 1
COVER,FR GRILLE,C.P.RED 14093G 14093-0583-V9 1
COVER,RADIATOR 14093H 14093-0584 1
COVER,SIDE,LH 14093I 14093-0596 1
COVER,SIDE,RH 14093J 14093-0597 1
FENDER-FRONT,A.SILVER 35004A 35004-0337-57N 1
FENDER-FRONT,C.P.RED 35004C 35004-0337-V9 1
LATCH 49031 49031-0008 2
COVER-HEAD LAMP,LH 55022 55022-0322 1
COVER-HEAD LAMP,RH 55022A 55022-0323 1
SCREW,TAPPING,6X16 92009 92009-1166 2
SCREW,6X16 92009A 92009-1621 4
NUT,CLAMP,6MM 92015 92015-1678 4
COLLAR,L=4.6 92027 92027-1168 7
RIVET 92039 92039-0776 24
RIVET,3.2X9.5 92039A 92039-0785 4
KNOB 92077 92077-0030 2
COLLAR 92143 92143-1057 2
SPRING,17X65 92145 92145-1727 2
COLLAR 92152 92152-0140 2
DAMPER,40X40X10 92161 92161-1861 2
SCREW,6X16 92172 92172-0284 6
SCREW,6X16 92172A 92172-0711 12
WASHER 92200 92200-0503 4
