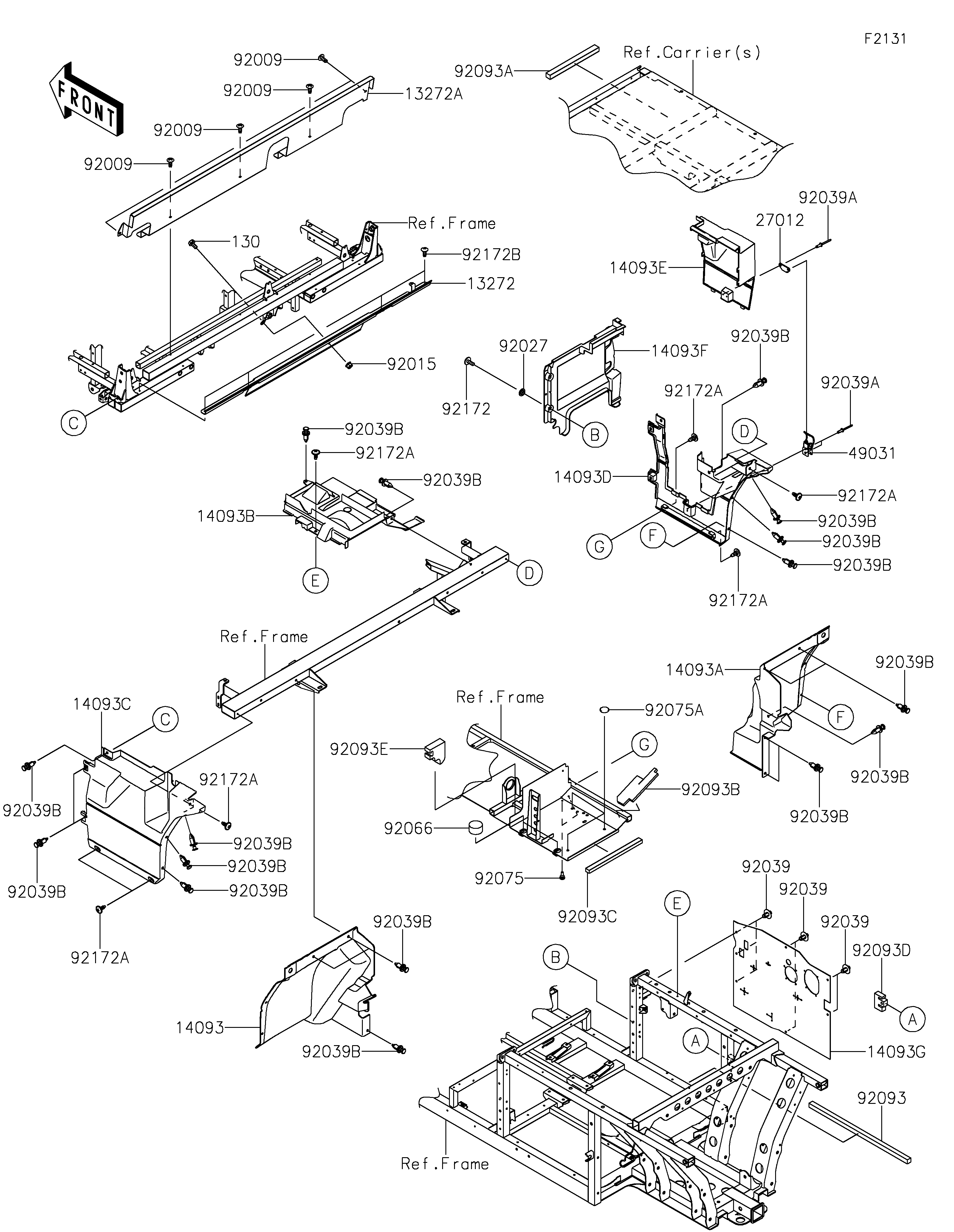

2018 MULE PRO-FXR™ - Frame Fittings(Rear)

DOWNLOAD PDF
SELECT A NEW PART
130
13272
13272A
14093
14093A
14093B
14093C
14093D
14093E
14093F
14093G
27012
49031
92009
92009
92009
92009
92015
92027
92039
92039
92039
92039A
92039A
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92066
92075
92075A
92093
92093A
92093B
92093C
92093D
92093E
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BA0612 1
PLATE,SEAT BACK,LWR 13272 13272-2318 1
PLATE,SEAT BACK,UPP 13272A 13272-2319 1
COVER,RR,FLOOR,MUD,LH 14093 14093-0388 1
COVER,RR,FLOOR,MUD,RH 14093A 14093-0389 1
COVER,DUST 14093B 14093-0590 1
COVER,RR SIDE,LH 14093C 14093-0591 1
COVER,RR SIDE,RH 14093D 14093-0592 1
COVER,A/C,RH 14093E 14093-0593 1
COVER,FR ENG 14093F 14093-0594 1
COVER 14093G 14093-0633 1
HOOK,STRIKER 27012 27012-0806 1
LATCH,TOGGLE 49031 49031-0015 1
SCREW,TAPPING,6X16 92009 92009-1166 5
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
COLLAR,L=4.6 92027 92027-1168 2
RIVET 92039 92039-0086 7
RIVET 92039A 92039-0747 4
RIVET 92039B 92039-0776 23
PLUG,36X20 92066 92066-0812 2
DAMPER,6X10X15 92075 92075-1808 2
DAMPER,RUBBER 92075A 92075-261 3
SEAL,DUST,20X20X565 92093 92093-0631 1
SEAL,DUST,20X25X280 92093A 92093-0633 1
SEAL,DUST,69X207X10 92093B 92093-0645 1
SEAL,DUST,15X305X20 92093C 92093-0646 1
SEAL,52X72X20 92093D 92093-0651 1
SEAL,99X85X30 92093E 92093-0715 1
SCREW,6X16 92172 92172-0236 2
SCREW,6X16 92172A 92172-0711 7
SCREW,TAPPING,6X16 92172B 92172-0739 4
