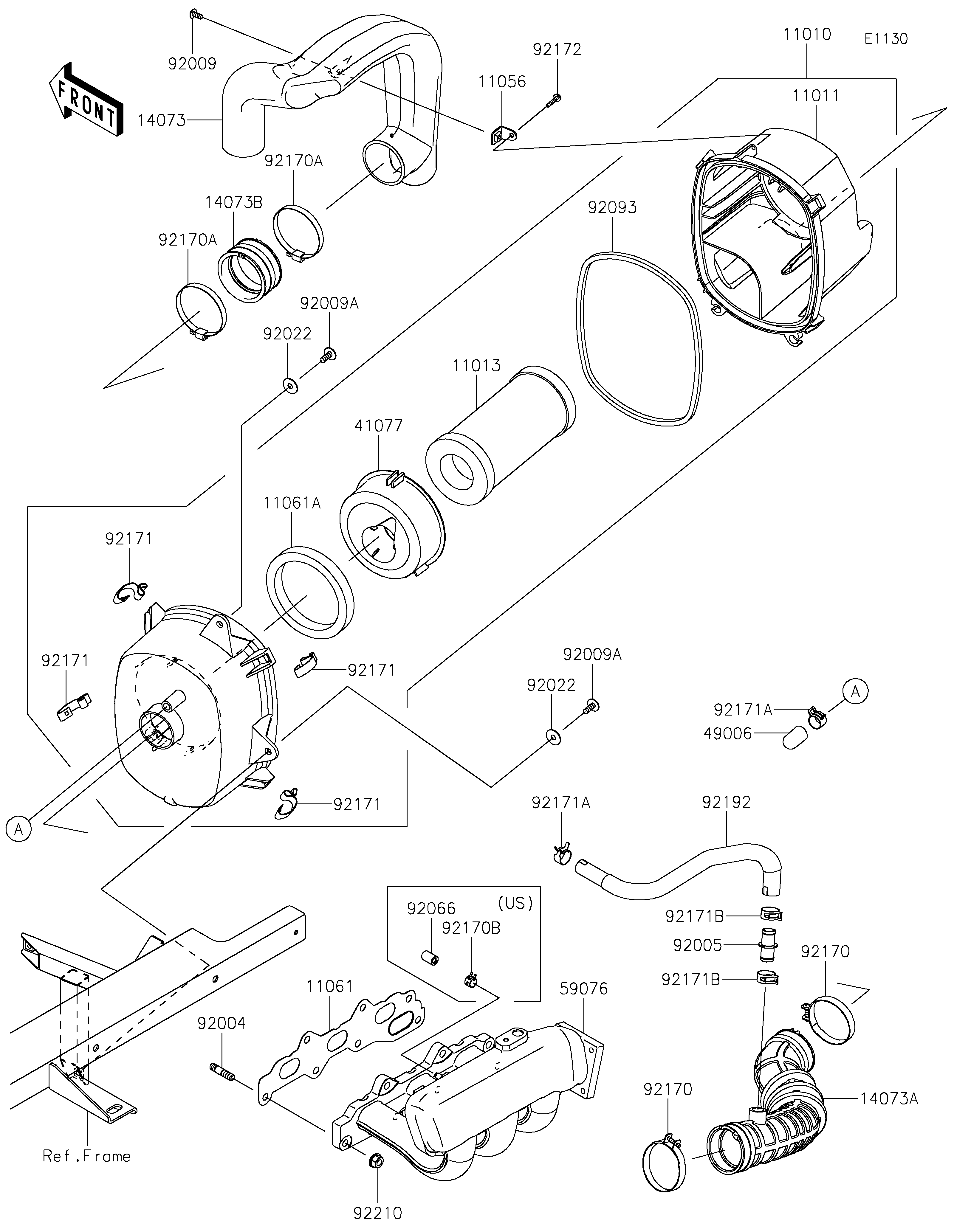

2018 MULE PRO-FX™ - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11011
11013
11056
11061
11061A
14073
14073A
14073B
41077
49006
59076
92004
92005
92009
92009A
92009A
92022
92022
92093
92170
92170
92170A
92170A
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92172
92192
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0860 1
CASE-AIR FILTER,UPP 11011 11011-0857 1
ELEMENT-AIR FILTER 11013 11013-1290 1
BRACKET,AIR FILTER 11056 11056-3734 1
GASKET,INTAKE MANIFOLD 11061 11061-0956 1
GASKET,ADAPTER 11061A 11061-0961 1
DUCT,INTAKE 14073 14073-0786 1
DUCT,INTAKE 14073A 14073-0992 1
DUCT,JOINT 14073B 14073-1775 1
ADAPTER,ELEMENT 41077 41077-0719 1
BOOT 49006 49006-0555 1
MANIFOLD-INTAKE 59076 59076-0017 1
STUD 92004 92004-0734 7
FITTING,DUCT-BREATHER TUBE 92005 92005-0992 1
SCREW,5X12 92009 92009-1154 1
SCREW,6X16 92009A 92009-1621 2
WASHER,PLAIN,6.5X20X1 92022 92022-165 2
SEAL,AIR FILTER 92093 92093-0607 1
CLAMP 92170 92170-1448 2
CLAMP 92170A 92170-1764 2
CLAMP 92171 92171-0225 4
CLAMP 92171A 92171-0533 2
CLAMP,18.8MM 92171B 92171-2056 2
SCREW,TAPPING,5X20 92172 92172-0009 1
TUBE,BREATHER 92192 92192-2365 1
NUT 92210 92210-0944 7
