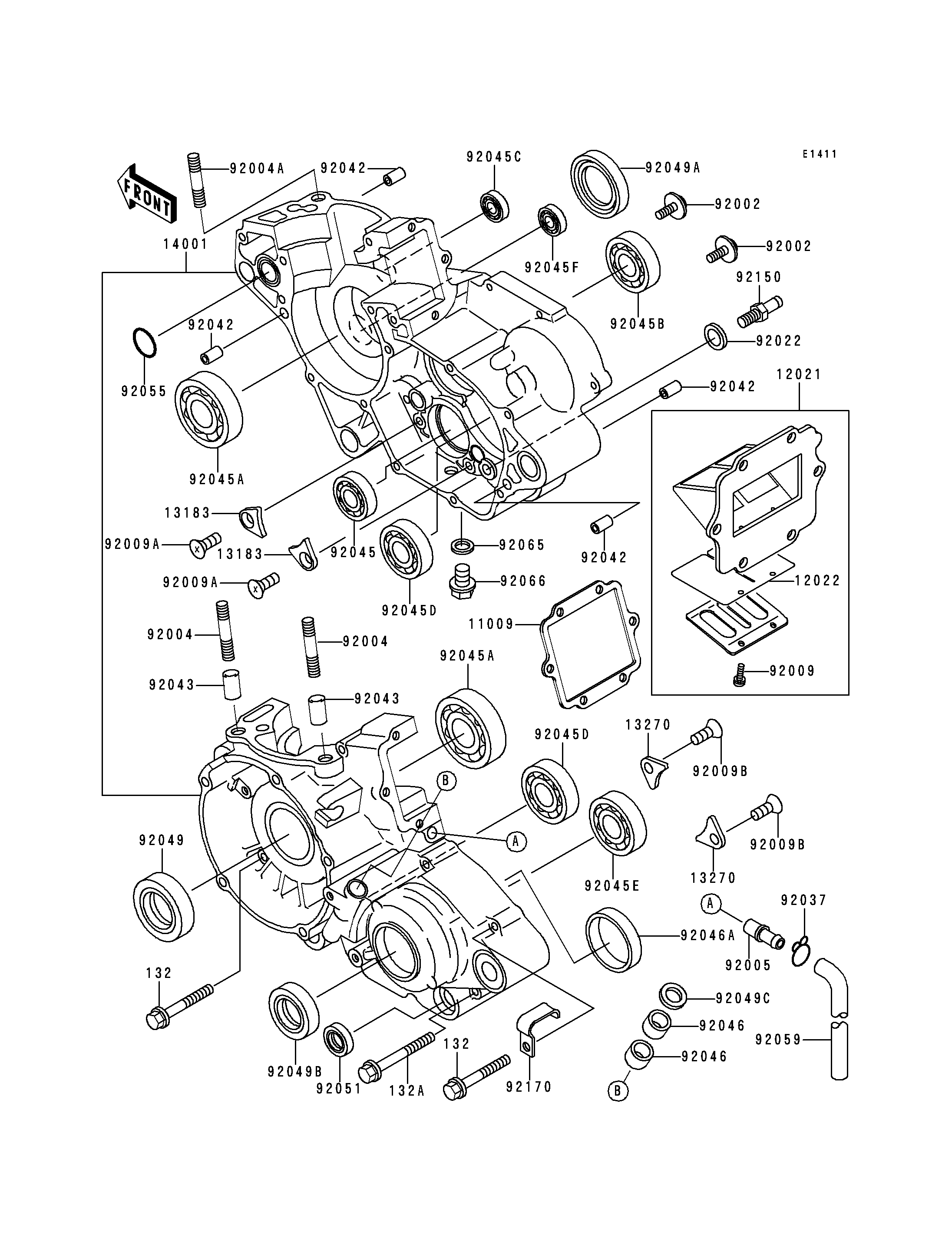

1998 KX125 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0640 13
BOLT-FLANGED-SMALL 132A 132G0675 1
GASKET,REED VALVE 11009 11009-1941 1
VALVE-ASSY-REED 12021 12021-1111 1
VALVE-REED 12022 12022-1080 2
PLATE 13183 13183-1182 2
PLATE 13270 13270-1638 2
SET-CRANKCASE 14001 14001-1235 1
BOLT,6X16 92002 92002-1659 2
STUD,8X35 92004 92004-1244 3
STUD,8X28.5 92004A 92004-1245 1
FITTING,BREATHER 92005 92005-1127 1
SCREW,3X6 92009 92009-1371 4
SCREW,6X10 92009A 92009-1563 2
SCREW,6X8 92009B 92009-1708 2
WASHER,10.2X18X1.0,SK5 92022 92022-1415 1
CLAMP 92037 92037-1610 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
PIN,8.2X10X14 92043 92043-1264 2
BEARING-BALL,6905Z 92045 92045-1058 1
BEARING-BALL 92045A 92045-1209 2
BEARING-BALL,6204X15C 92045B 92045-1298 1
BEARING-BALL,608MC3 92045C 92045-1305 1
BEARING-BALL,SC03A53C3 92045D 92045-1334 2
BEARING-BALL,SX04A81C3 92045E 92045-1335 1
BEARING-BALL 92045F 92045-1345 1
BEARING-NEEDLE,HK1010 92046 92046-1160 2
BEARING-NEEDLE,7E-HKS33X38X8 92046A 92046-1221 1
SEAL-OIL 92049 92049-1300 1
SEAL-OIL 92049A 92049-1301 1
SEAL-OIL 92049B 92049-1413 1
SEAL-OIL 92049C 92049-1414 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O 92055 92055-086 1
TUBE,6X9X420 92059 92059-1946 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG,DRAIN 92066 92066-1437 1
BOLT,RETURN SPRING 92150 92150-1803 1
CLAMP 92170 92170-1555 1
