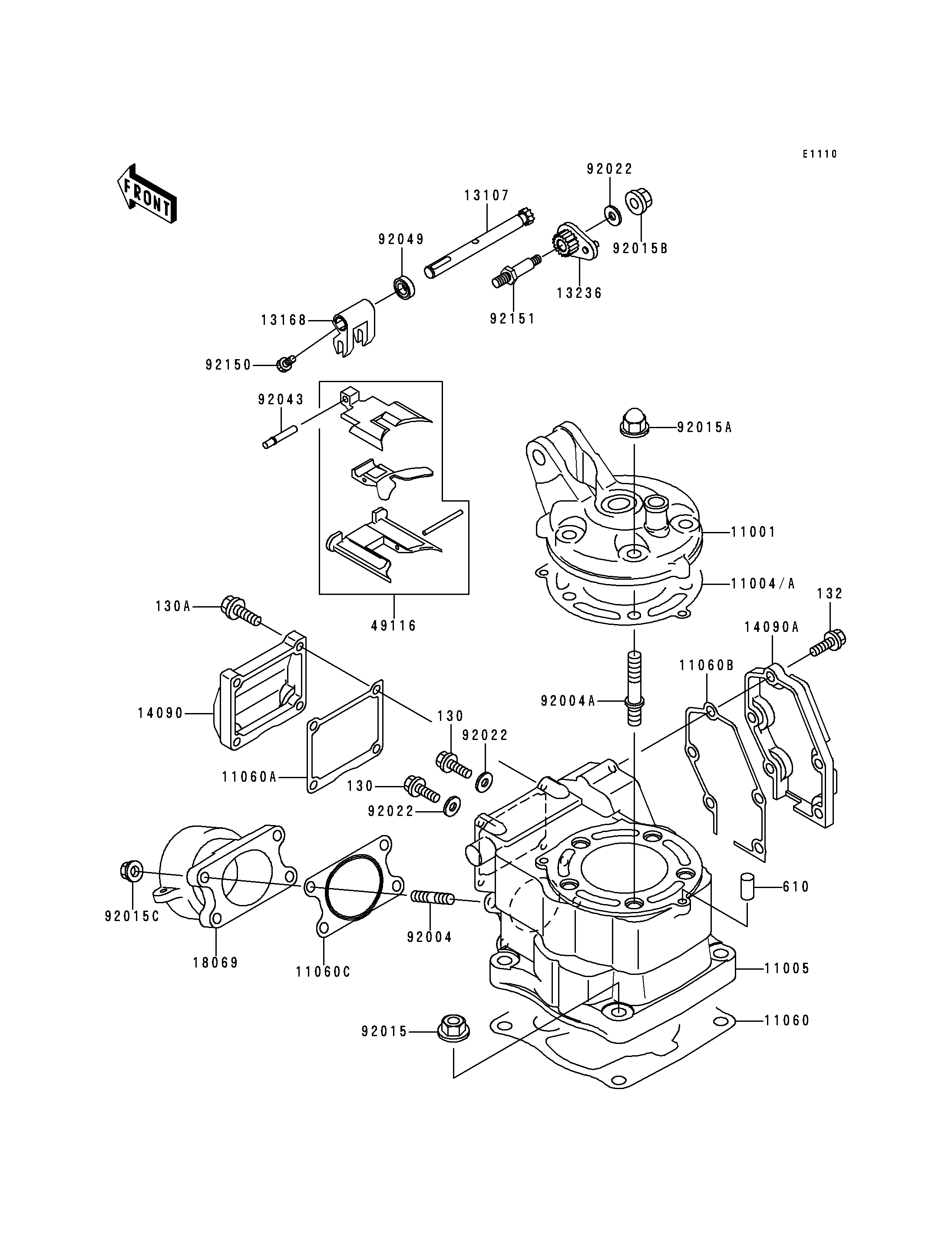

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130G0508 | 2 | ||
| BOLT-FLANGED | 130A | 130G0520 | 4 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0616 | 5 | ||
| ROLLER,4X8 | 610 | 610A0408 | 2 | ||
| HEAD-CYLINDER | 11001 | 11001-1435 | 1 | ||
| GASKET-HEAD,T=0.46 | 11004 | 11004-1252 | 1 | (OPTION) | |
| GASKET-HEAD,T=0.26 | 11004A | 11004-1300 | 1 | ||
| CYLINDER-ENGINE | 11005 | 11005-1852 | 1 | ||
| GASKET,CYLINDER BASE | 11060 | 11060-1769 | 1 | ||
| GASKET,CENTER COVER | 11060A | 11060-1788 | 1 | ||
| GASKET,RH COVER | 11060B | 11060-1789 | 1 | ||
| GASKET | 11060C | 11060-1790 | 1 | ||
| SHAFT | 13107 | 13107-1374 | 1 | ||
| LEVER,MAIN VALVE | 13168 | 13168-1499 | 1 | ||
| LEVER-COMP | 13236 | 13236-1308 | 1 | ||
| COVER,CENTER | 14090 | 14090-1828 | 1 | ||
| COVER,RH | 14090A | 14090-1829 | 1 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1140 | 1 | ||
| VALVE-ASSY | 49116 | 49116-1156 | 1 | ||
| STUD,6X18 | 92004 | 92004-1154 | 4 | ||
| STUD,8X28 | 92004A | 92004-1236 | 5 | ||
| NUT,8MM | 92015 | 92015-1143 | 4 | ||
| NUT,CAP,8MM | 92015A | 92015-1151 | 5 | ||
| NUT,LOCK,5MM | 92015B | 92015-1221 | 1 | ||
| NUT,FLANGED,6MM | 92015C | 92015-1367 | 4 | ||
| WASHER,5.2X13X1 | 92022 | 92022-1380 | 3 | ||
| PIN,MAIN VALVE | 92043 | 92043-1470 | 1 | ||
| SEAL-OIL,SD088144 | 92049 | 92049-1238 | 1 | ||
| BOLT,SOCKET,4X8 | 92150 | 92150-1888 | 1 | ||
| BOLT | 92151 | 92151-1257 | 1 |
