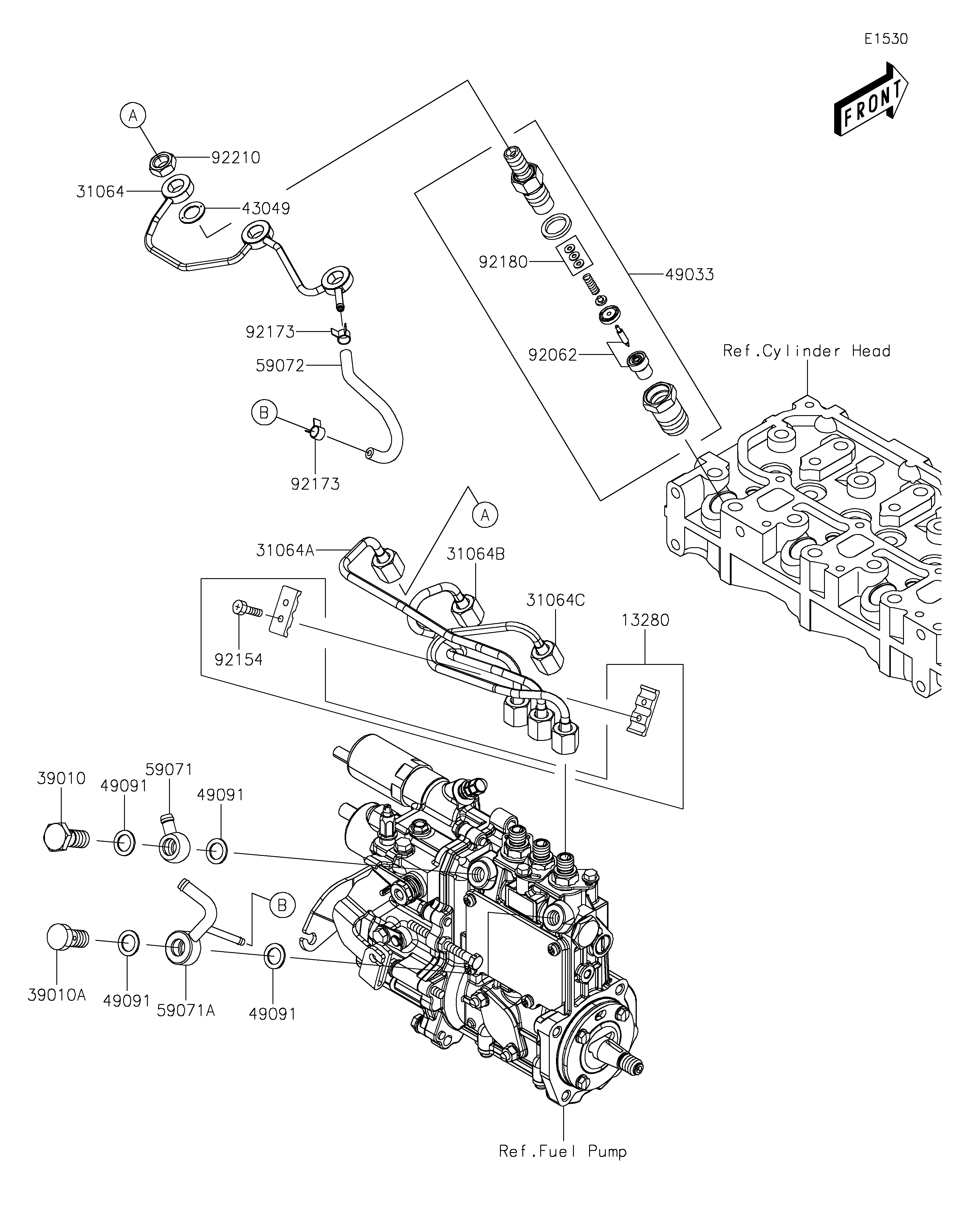

2017 MULE PRO-DXT™ DIESEL - Fuel Injection
13280
31064
31064A
31064B
31064C
39010
39010A
43049
49033
49091
49091
49091
49091
59071
59071A
59072
92062
92154
92173
92173
92180
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER | 13280 | 13280-0862 | 1 | ||
PIPE-COMP,RETURN | 31064 | 31064-0681 | 1 | ||
PIPE-COMP,INJECTION,NO.1 | 31064A | 31064-0682 | 1 | ||
PIPE-COMP,INJECTION,NO.2 | 31064B | 31064-0683 | 1 | ||
PIPE-COMP,INJECTION,NO.3 | 31064C | 31064-0684 | 1 | ||
BOLT-EYE,PIPE JOINT | 39010 | 39010-0001 | 1 | ||
BOLT-EYE,PIPE JOINT | 39010A | 39010-0002 | 1 | ||
PACKING | 43049 | 43049-0045 | 3 | ||
NOZZLE-INJECTION | 49033 | 49033-0039 | 3 | ||
WASHER-SEAL | 49091 | 49091-0007 | 4 | ||
JOINT | 59071 | 59071-0738 | 1 | ||
JOINT,OVER FLOW | 59071A | 59071-0739 | 1 | ||
JOINT-EYE | 59072 | 59072-0004 | 1 | ||
NOZZLE | 92062 | 92062-0038 | 3 | ||
BOLT,4X14 | 92154 | 92154-2115 | 2 | ||
CLAMP | 92173 | 92173-1551 | 2 | ||
SHIM,SET | 92180 | 92180-0971 | 3 | ||
NUT | 92210 | 92210-1469 | 3 |
HOLDER | |
REF # | 13280 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-COMP,RETURN | |
REF # | 31064 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-COMP,INJECTION,NO.1 | |
REF # | 31064A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-COMP,INJECTION,NO.2 | |
REF # | 31064B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-COMP,INJECTION,NO.3 | |
REF # | 31064C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-EYE,PIPE JOINT | |
REF # | 39010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-EYE,PIPE JOINT | |
REF # | 39010A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PACKING | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NOZZLE-INJECTION | |
REF # | 49033 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WASHER-SEAL | |
REF # | 49091 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
JOINT | |
REF # | 59071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT,OVER FLOW | |
REF # | 59071A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT-EYE | |
REF # | 59072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NOZZLE | |
REF # | 92062 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT,4X14 | |
REF # | 92154 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92173 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHIM,SET | |
REF # | 92180 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
