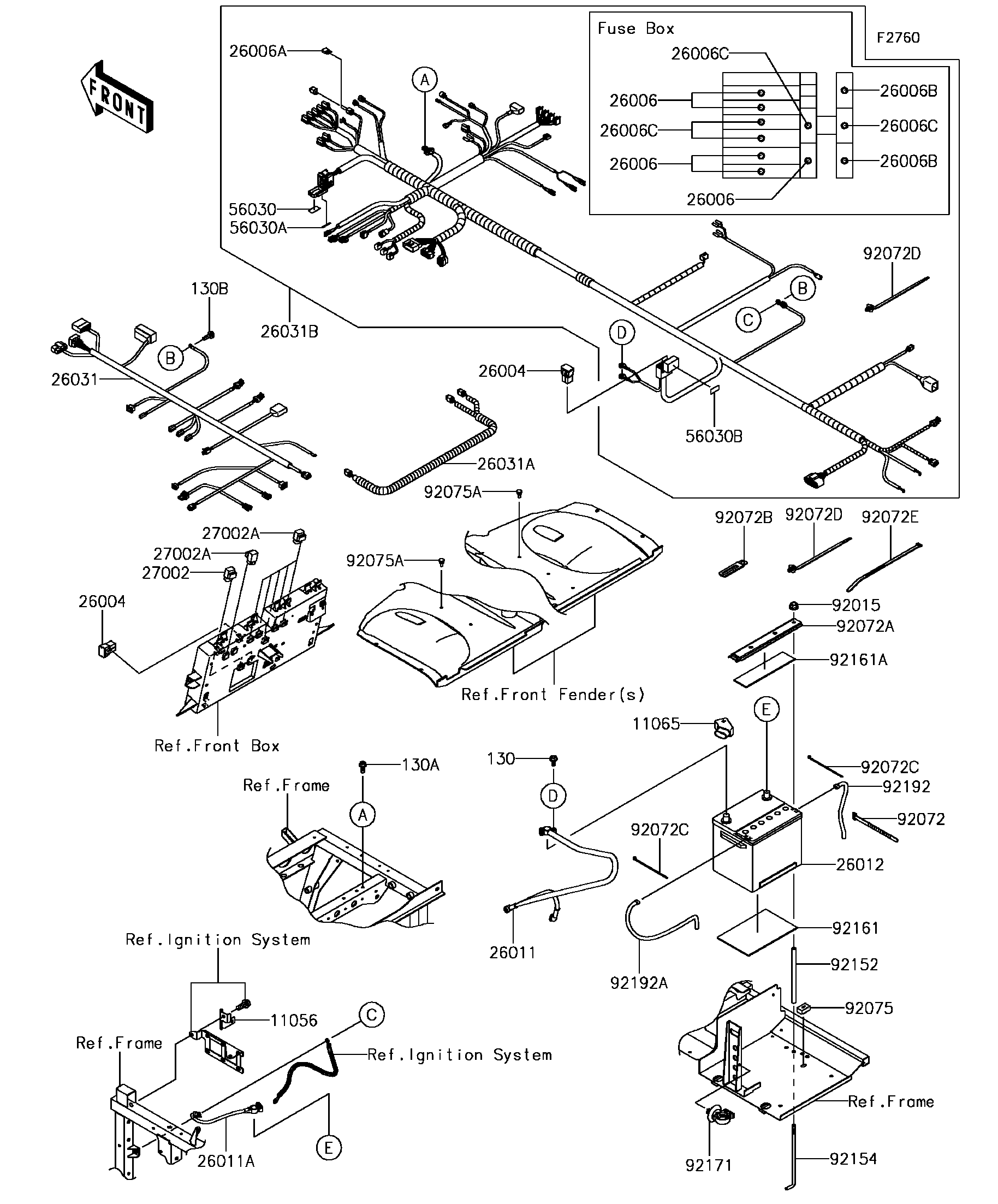

2017 Mule PRO-FXT - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11056
11065
130
130A
130B
26004
26004
26006
26006
26006
26006A
26006B
26006B
26006C
26006C
26006C
26011
26011A
26012
26031
26031A
26031B
27002
27002A
27002A
56030
56030A
56030B
92015
92072
92072A
92072B
92072C
92072C
92072D
92072D
92072E
92075
92075A
92075A
92152
92154
92161
92161A
92171
92192
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-4397 1
CAP 11065 11065-0850 1
BOLT-FLANGED,6X14 130 130BA0614 1
BOLT-FLANGED,6X16 130A 130BA0616 1
BOLT-FLANGED,6X18 130B 130BA0618 1
FUSE-ASSY,60A 26004 26004-0024 3
FUSE,MINI BLADE,10A,RED 26006 26006-0009 5
FUSE,MINI BLADE,2A,GRAY 26006A 26006-0052 2
FUSE,MINI BLADE,30A,GREEN 26006B 26006-1080 2
FUSE,MINI BLADE,20A,YELLOW 26006C 26006-3704 4
WIRE-LEAD,BATTERY(+) 26011 26011-0851 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0912 1
BATTERY,12V 32AH 26012 26012-0619 1
HARNESS 26031 26031-1644 1
HARNESS,SUB 26031A 26031-1647 1
HARNESS,MAIN 26031B 26031-1855 1
RELAY-ASSY 27002 27002-0022 2
RELAY-ASSY 27002A 27002-1062 6
LABEL,FUSE BOX1 56030 56030-0850 1
LABEL,FUSE BOX2 56030A 56030-0854 1
LABEL,FUSE CASE 56030B 56030-0891 1
NUT,FLANGED,8MM 92015 92015-1406 1
BAND,L=123 92072 92072-030 1
BAND 92072A 92072-0767 1
BAND 92072B 92072-0770 4
BAND,92X2.4 92072C 92072-0791 2
BAND 92072D 92072-1414 29
BAND,L=292.1 92072E 92072-3509 14
DAMPER 92075 92075-099 1
DAMPER,6X10X15 92075A 92075-1808 2
COLLAR,9.4X12.7X190.8 92152 92152-1852 1
BOLT,BATTERY 92154 92154-1650 1
DAMPER 92161 92161-0578 1
DAMPER 92161A 92161-1753 1
CLAMP 92171 92171-0453 1
TUBE,BREATHER,7X10X240 92192 92192-1646 1
TUBE,BREATHER,7X10X450 92192A 92192-1694 1
