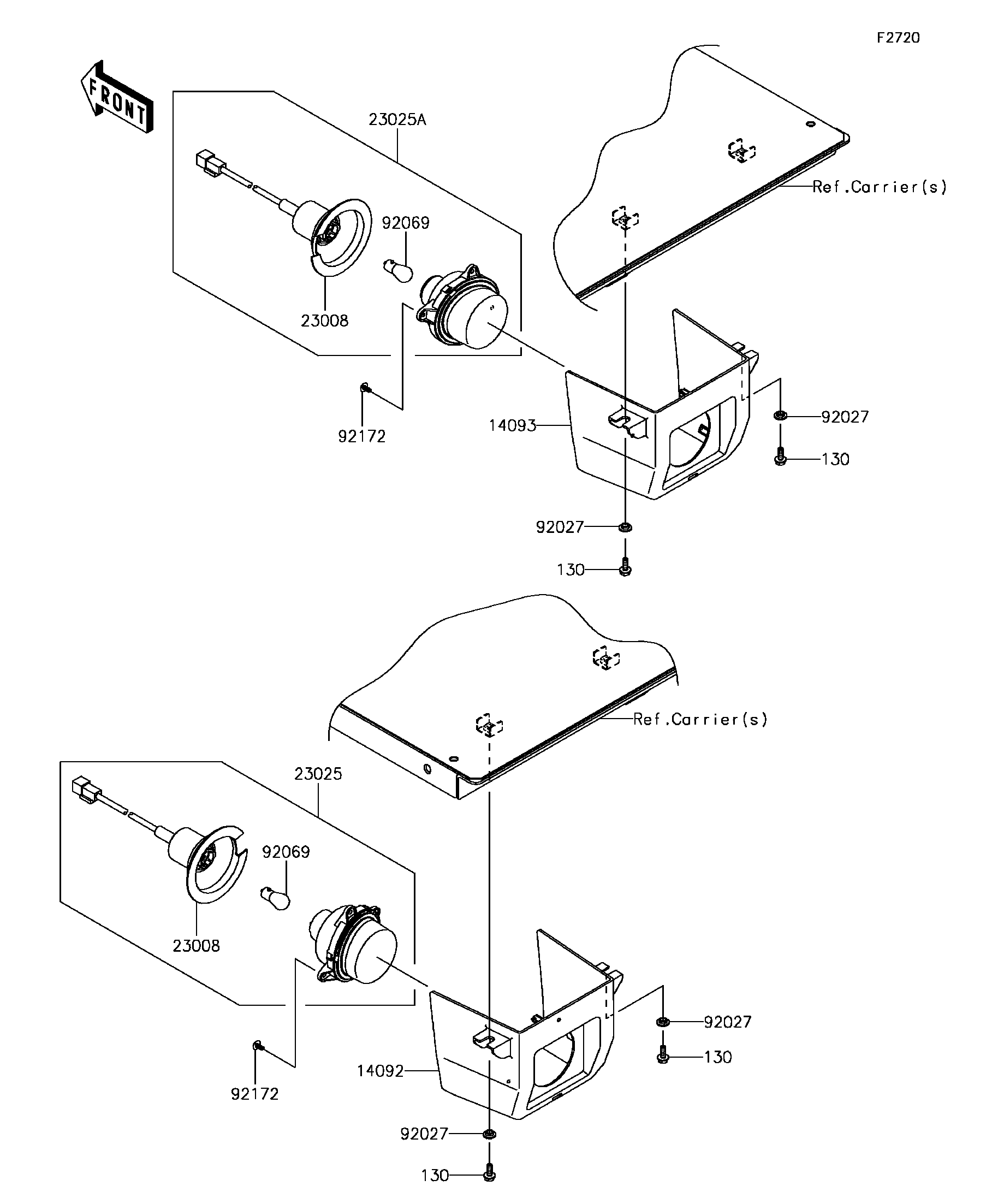

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130CA0616 | 4 | ||
| COVER,TAIL LAMP,LH | 14092 | 14092-1183 | 1 | ||
| COVER,TAIL LAMP,RH | 14093 | 14093-0091 | 1 | ||
| SOCKET-ASSY | 23008 | 23008-0162 | 2 | ||
| LAMP-TAIL,LH | 23025 | 23025-0334 | 1 | ||
| LAMP-TAIL,RH | 23025A | 23025-0341 | 1 | ||
| COLLAR,L=4.6 | 92027 | 92027-1168 | 4 | ||
| BULB,12V 21/5W | 92069 | 92069-0072 | 2 | ||
| SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 6 |
