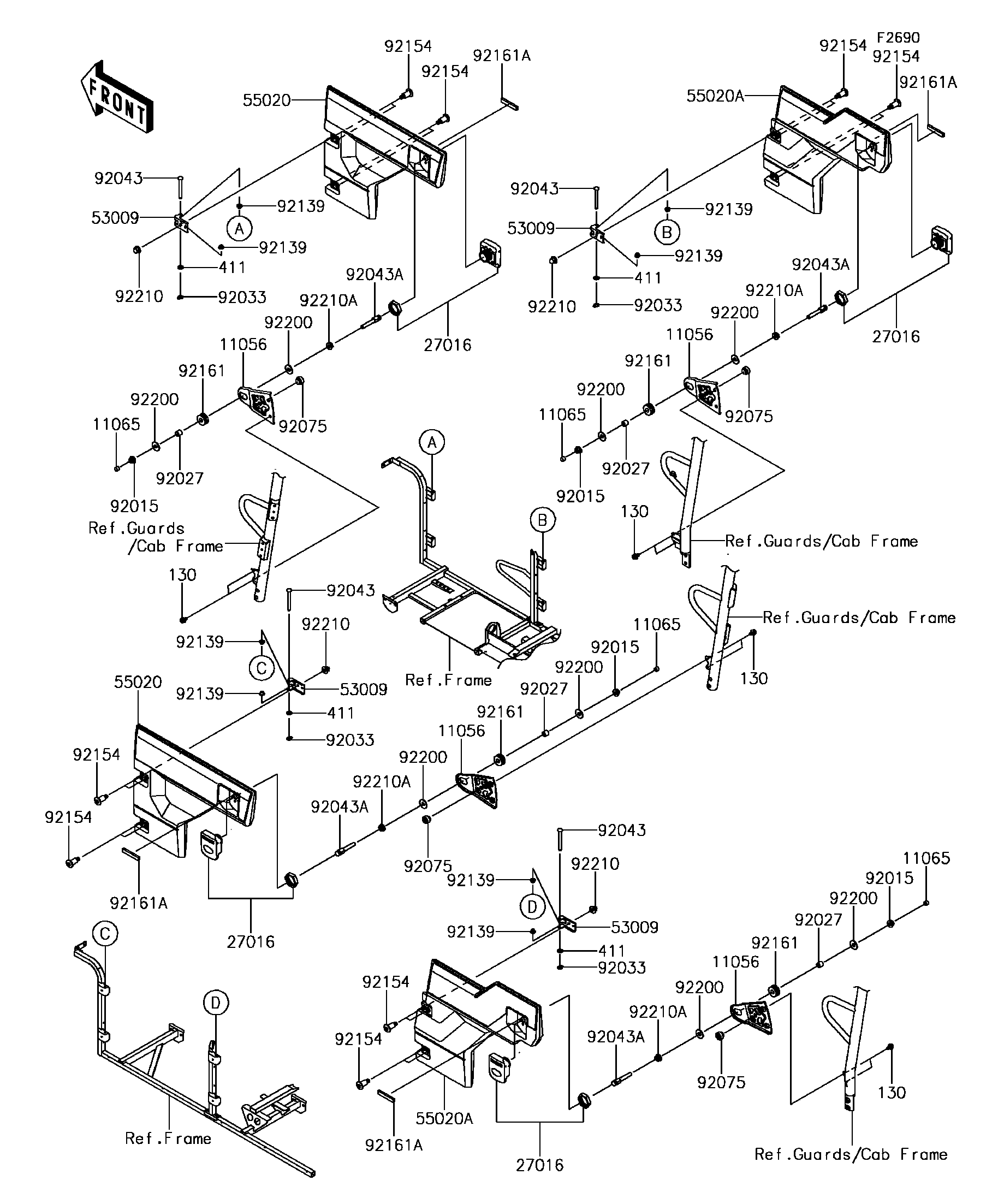

2017 Mule PRO-FXT - Door

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056
11056
11065
11065
11065
11065
130
130
130
130
27016
27016
27016
27016
411
411
411
411
53009
53009
53009
53009
55020
55020
55020A
55020A
92015
92015
92015
92015
92027
92027
92027
92027
92033
92033
92033
92033
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92075
92075
92075
92075
92139
92139
92139
92139
92139
92139
92139
92139
92154
92154
92154
92154
92154
92154
92154
92154
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92200
92200
92200
92200
92200
92200
92200
92200
92210
92210
92210
92210
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,DOOR GUARD 11056 11056-2856 4
CAP 11065 11065-7504 4
BOLT-FLANGED,6X10 130 130BA0610 8
LOCK-ASSY 27016 27016-0084 4
WASHER-PLAIN,6MM 411 411AB0600 8
HINGE 53009 53009-0303 8
GUARD,FR,F.BLACK 55020 55020-0936-6Z 2
GUARD,RR,F.BLACK 55020A 55020-0937-6Z 2
NUT,8MM 92015 92015-1432 4
COLLAR,8.8X12X10.7 92027 92027-102 4
RING-SNAP 92033 92033-0719 8
PIN,6X56 92043 92043-0743 8
PIN,DOOR LOCK 92043A 92043-0788 4
DAMPER 92075 92075-1598 4
BUSHING,6X8X6 92139 92139-0709 16
BOLT,SOCKET,8X30 92154 92154-1369 16
DAMPER,10X26X11.5 92161 92161-1691 4
DAMPER,9X52X5 92161A 92161-1837 4
WASHER,8.5X23X1.6 92200 92200-1156 8
NUT,CAP,8MM 92210 92210-0488 16
NUT,FLANGED,8MM 92210A 92210-0555 4
