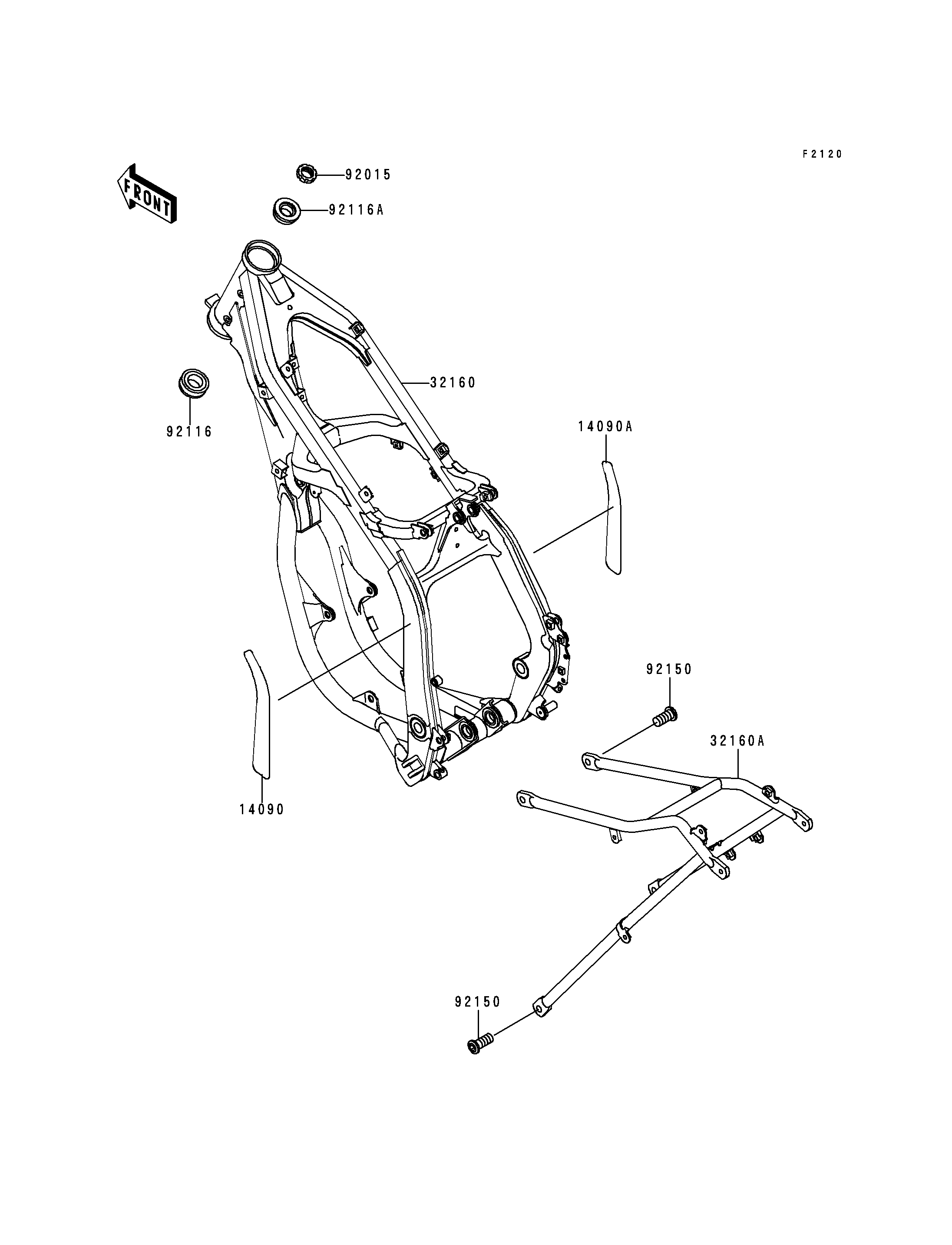

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,LH | 14090 | 14090-1474 | 1 | ||
| COVER,RH | 14090A | 14090-1475 | 1 | ||
| FRAME-COMP,FR,L.GREEN | 32160 | 32160-1307-CC | 1 | ||
| FRAME-COMP,RR,L.GREEN | 32160A | 32160-1308-CC | 1 | ||
| NUT,STEERING STEM,28MM | 92015 | 92015-1861 | 1 | ||
| BEARING-ROLLER,HI-CAP32006JRRS | 92116 | 92116-1069 | 1 | ||
| BEARING-ROLLER,HI-CAP320/28JRR | 92116A | 92116-1076 | 1 | ||
| BOLT,SOCKET,8X20 | 92150 | 92150-1760 | 4 |
| COVER,LH | |
| REF # | 14090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RH | |
| REF # | 14090A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,FR,L.GREEN | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,RR,L.GREEN | |
| REF # | 32160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING STEM,28MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HI-CAP32006JRRS | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HI-CAP320/28JRR | |
| REF # | 92116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X20 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
