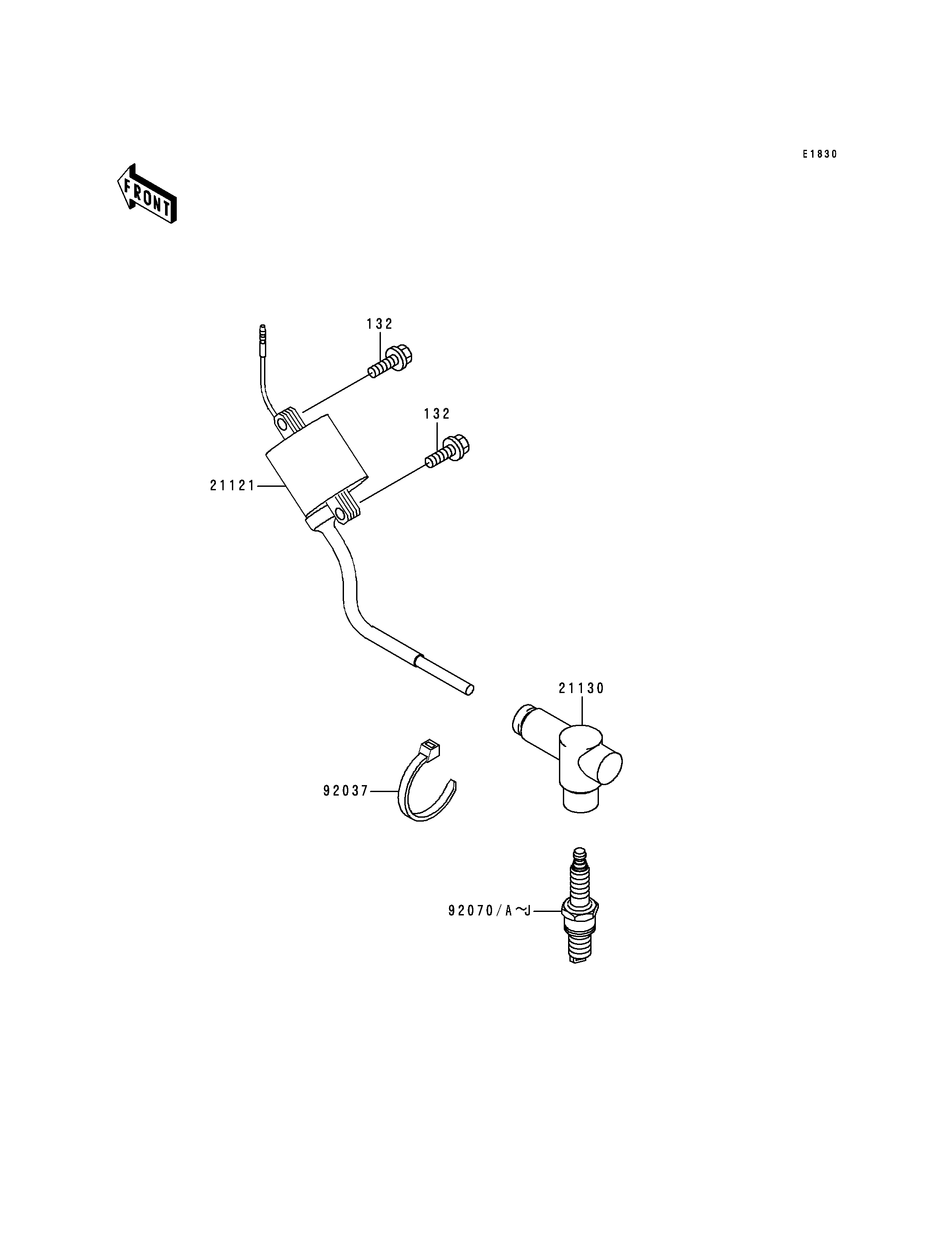

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132G0618 | 2 | ||
| COIL-IGNITION | 21121 | 21121-1234 | 1 | ||
| CAP-SPARK PLUG | 21130 | 21130-1073 | 1 | ||
| CLAMP | 92037 | 92037-1173 | 1 | ||
| PLUG-SPARK,R4630A-105(NGK) | 92070 | 92070-1185 | 1 | (OPTION) | |
| PLUG-SPARK,B10EVX(NGK) | 92070A | 92070-1186 | 1 | (OPTION) | |
| PLUG-SPARK,W31ES-ZU(ND) | 92070B | 1 | |||
| PLUG-SPARK,W31ESR-ZU(ND) | 92070C | 1 | (OPTION) | ||
| PLUG-SPARK,R6252E-9(NGK) | 92070D | 92070-1197 | 1 | (OPTION) | |
| PLUG-SPARK,R6254E-9(NGK) | 92070E | 92070-1198 | 1 | (OPTION) | |
| PLUG-SPARK,R6254K-105(NGK) | 92070F | 92070-1204 | 1 | (OPTION) | |
| PLUG-SPARK,R6252K-105(NGK) | 92070G | 92070-1205 | 1 | (OPTION) | |
| PLUG-SPARK,R4630A-9(NGK) | 92070H | 92070-1206 | 1 | (OPTION) | |
| PLUG-SPARK,B9EVX(NGK) | 92070I | 92070-1212 | 1 | ||
| PLUG-SPARK,BR9EVX(NGK) | 92070J | 92070-1213 | 1 |
