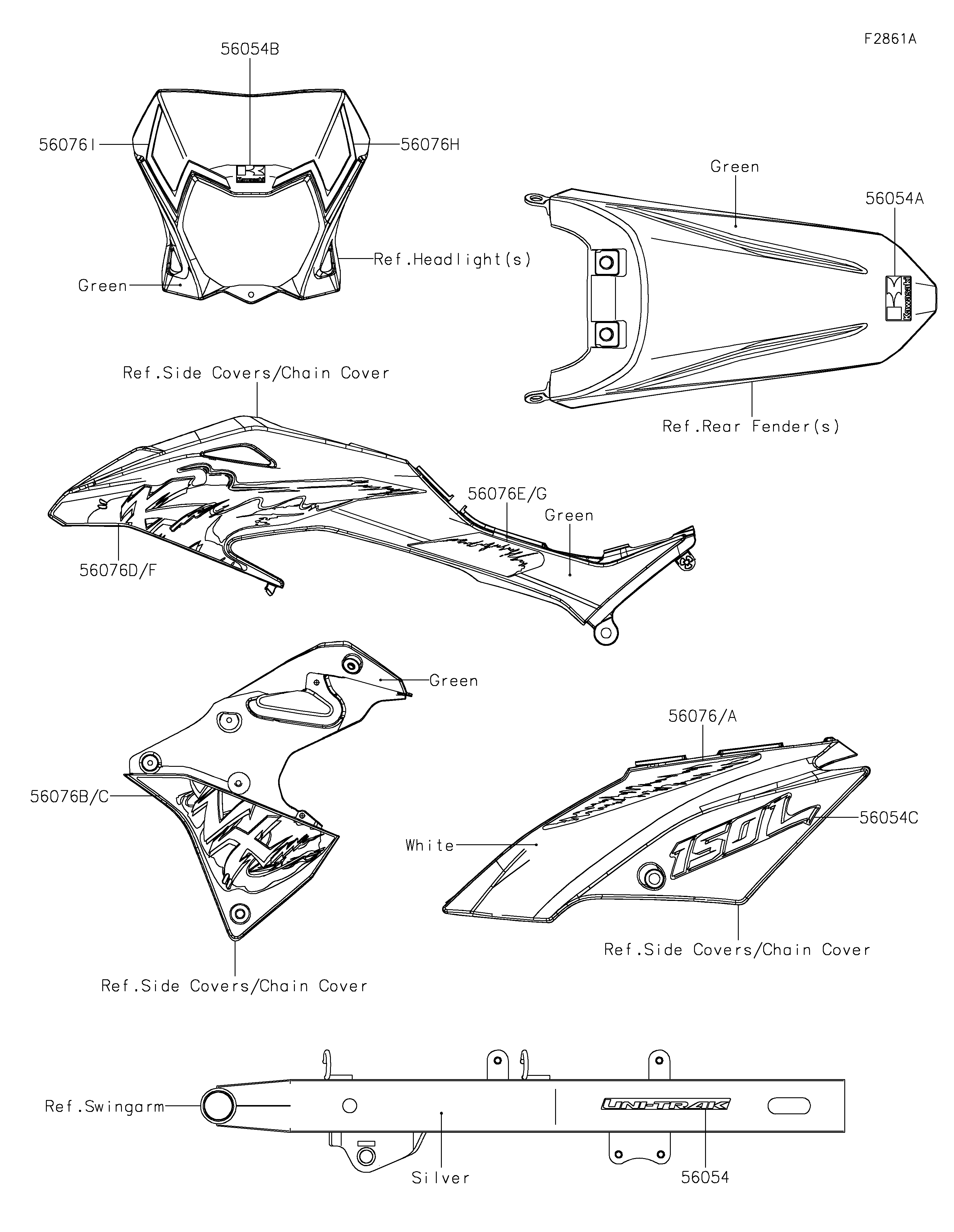

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,UNI-TRAK | 56054 | 56054-1540 | 2 | ||
| MARK,RR FENDER,K | 56054A | 56054-2451 | 1 | ||
| MARK,HEAD LAMP COVER,K | 56054B | 56054-2452 | 1 | ||
| MARK,SIDE COVER,150L | 56054C | 56054-2685 | 2 | ||
| PATTERN,SIDE COVER,LH | 56076 | 56076-0785 | 1 | ||
| PATTERN,SIDE COVER,RH | 56076A | 56076-0786 | 1 | ||
| PATTERN,SHROUD,LWR,LH | 56076B | 56076-0787 | 1 | ||
| PATTERN,SHROUD,LWR,RH | 56076C | 56076-0788 | 1 | ||
| PATTERN,SHROUD,UPP,LH,FR | 56076D | 56076-0789 | 1 | ||
| PATTERN,SHROUD,UPP,LH,RR | 56076E | 56076-0790 | 1 | ||
| PATTERN,SHROUD,UPP,RH,FR | 56076F | 56076-0791 | 1 | ||
| PATTERN,SHROUD,UPP,RH,RR | 56076G | 56076-0792 | 1 | ||
| PATTERN,HEAD LAMP COVER,LH | 56076H | 56076-0793 | 1 | ||
| PATTERN,HEAD LAMP COVER,RH | 56076I | 56076-0794 | 1 |
