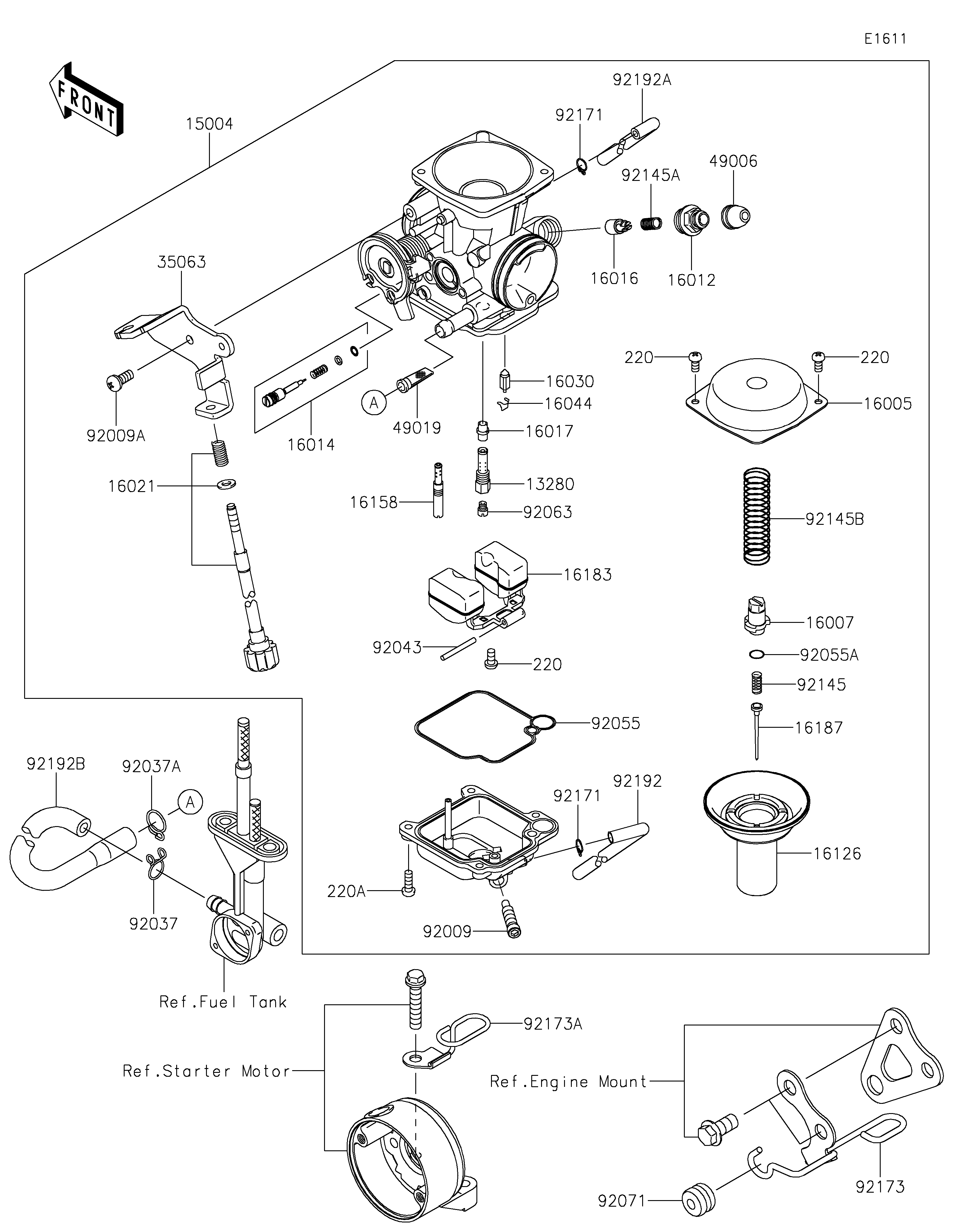

2020 KLX®150L - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
13280
15004
16005
16007
16012
16014
16016
16017
16021
16030
16044
16126
16158
16183
16187
220
220
220
220A
35063
49006
49019
92009
92009A
92037
92037A
92043
92055
92055A
92063
92071
92145
92145A
92145B
92171
92171
92173
92173A
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13280 13280-0235 1
CARBURETOR-ASSY 15004 15004-0911 1
TOP-CHAMBER 16005 16005-0003 1
SEAT-SPRING 16007 16007-0020 1
CAP-STARTER PLUNGER 16012 16012-0003 1
SCREW-PILOT AIR 16014 16014-0016 1
PLUNGER,STARTER 16016 16016-0014 1
JET-NEEDLE 16017 16017-0017 1
SCREW-THROTTLE STOP 16021 16021-0022 1
VALVE-FLOAT 16030 16030-0005 1
CLAMP,FLOAT VALVE 16044 16044-007 1
VALVE 16126 16126-0020 1
JET-SLOW 16158 16158-0007 1
FLOAT-ASSY 16183 16183-0004 1
NEEDLE-JET 16187 16187-0573 1
SCREW-PAN-CROS,4X8 220 220AA0408 3
SCREW-PAN-CROS,4X12 220A 220AA0412 4
STAY 35063 35063-0684 1
BOOT 49006 49006-0039 1
FILTER-FUEL 49019 49019-1097 1
SCREW,DRAIN,6X0.75 92009 92009-1551 1
SCREW,PLATE 92009A 92009-1865 1
CLAMP,TUBE 92037 92037-147 1
CLAMP 92037A 92037-1935 1
PIN,FLOAT 92043 92043-1207 1
RING-O,CHAMBER GASKET 92055 92055-0084 1
RING-O 92055A 92055-1223 1
JET-MAIN,#112 92063 92063-0020 1
GROMMET 92071 92071-0038 1
SPRING 92145 92145-0309 1
SPRING,COIL 92145A 92145-0313 1
SPRING 92145B 92145-0936 1
CLAMP 92171 92171-0494 2
CLAMP 92173 92173-1066 1
CLAMP 92173A 92173-1430 1
TUBE 92192 92192-0233 1
TUBE 92192A 92192-0876 1
TUBE,TAP-ASSY-CARBURETOR 92192B 92192-1726 1
