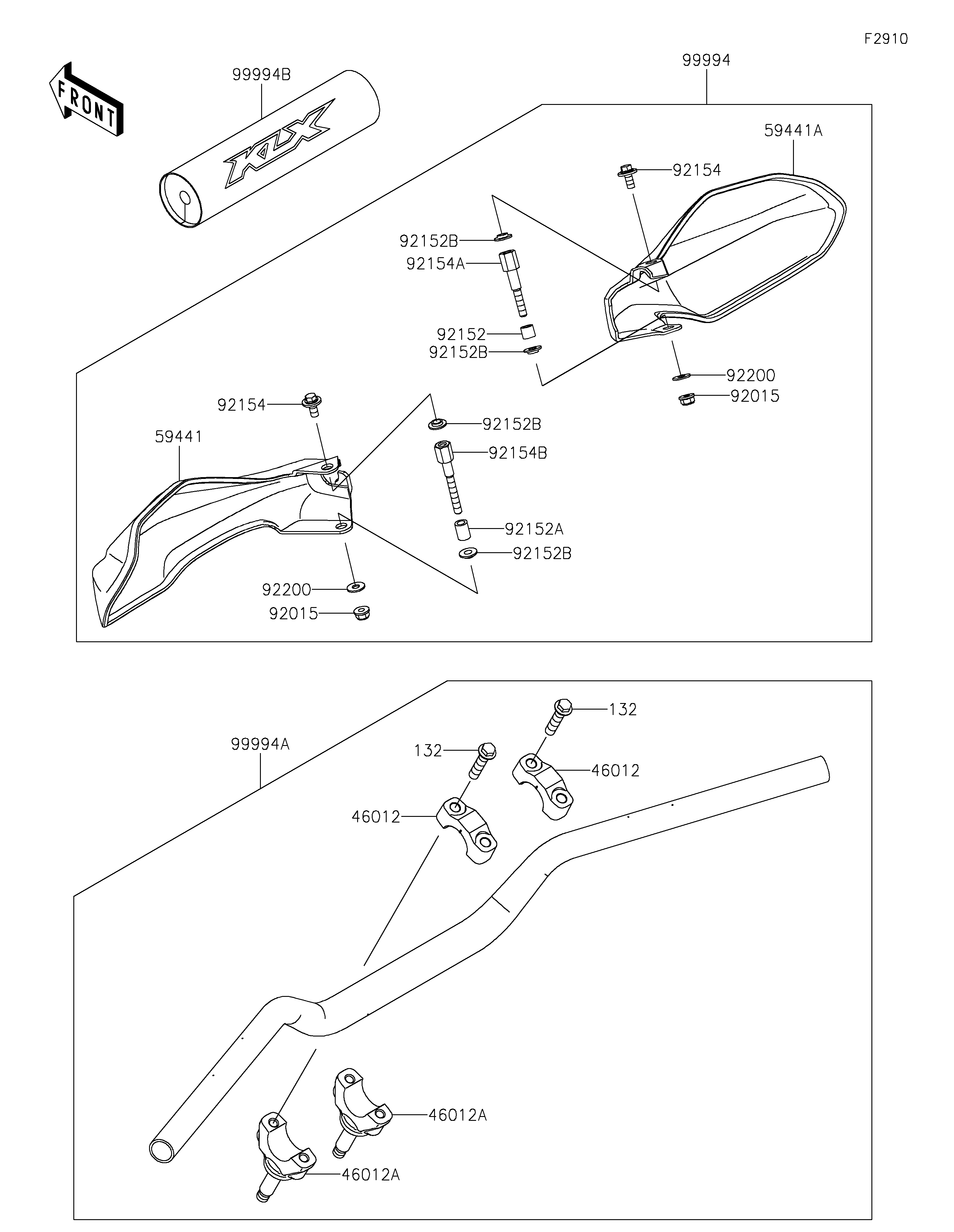

2020 KLX®300R - Accessory

DOWNLOAD PDF
SELECT A NEW PART
132
132
46012
46012
46012A
46012A
59441
59441A
92015
92015
92152
92152A
92152B
92152B
92152B
92152B
92154
92154
92154A
92154B
92200
92200
99994
99994A
99994B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X35 132 132BA0835 4
HOLDER-HANDLE,UPP,FAT BAR,BLK 46012 46012-0020-18R 2
HOLDER-HANDLE,LWR,FAT BAR,BLK 46012A 46012-0021-18R 2
COVER-HANDLE,LH,EBONY 59441 59441-0047-6C 1
COVER-HANDLE,RH,EBONY 59441A 59441-0048-6C 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
COLLAR,6.5X10.5X9.3 92152 92152-1992 1
COLLAR,6.5X10.5X14 92152A 92152-2302 1
COLLAR,6.5X15X3.4 92152B 92152-2314 4
BOLT,FLANGED,6X14 92154 92154-1231 2
BOLT 92154A 92154-1670 1
BOLT 92154B 92154-3974 1
WASHER,6.2X15X1.2 92200 92200-1762 2
HAND COVER,EBONY 99994 99994-1272-6C 1
FAT TYPE HANDLE BAR,P.SILVER 99994A 99994-1273-458 1
HANDLE-BAR PAD 99994B 99994-1274 1
