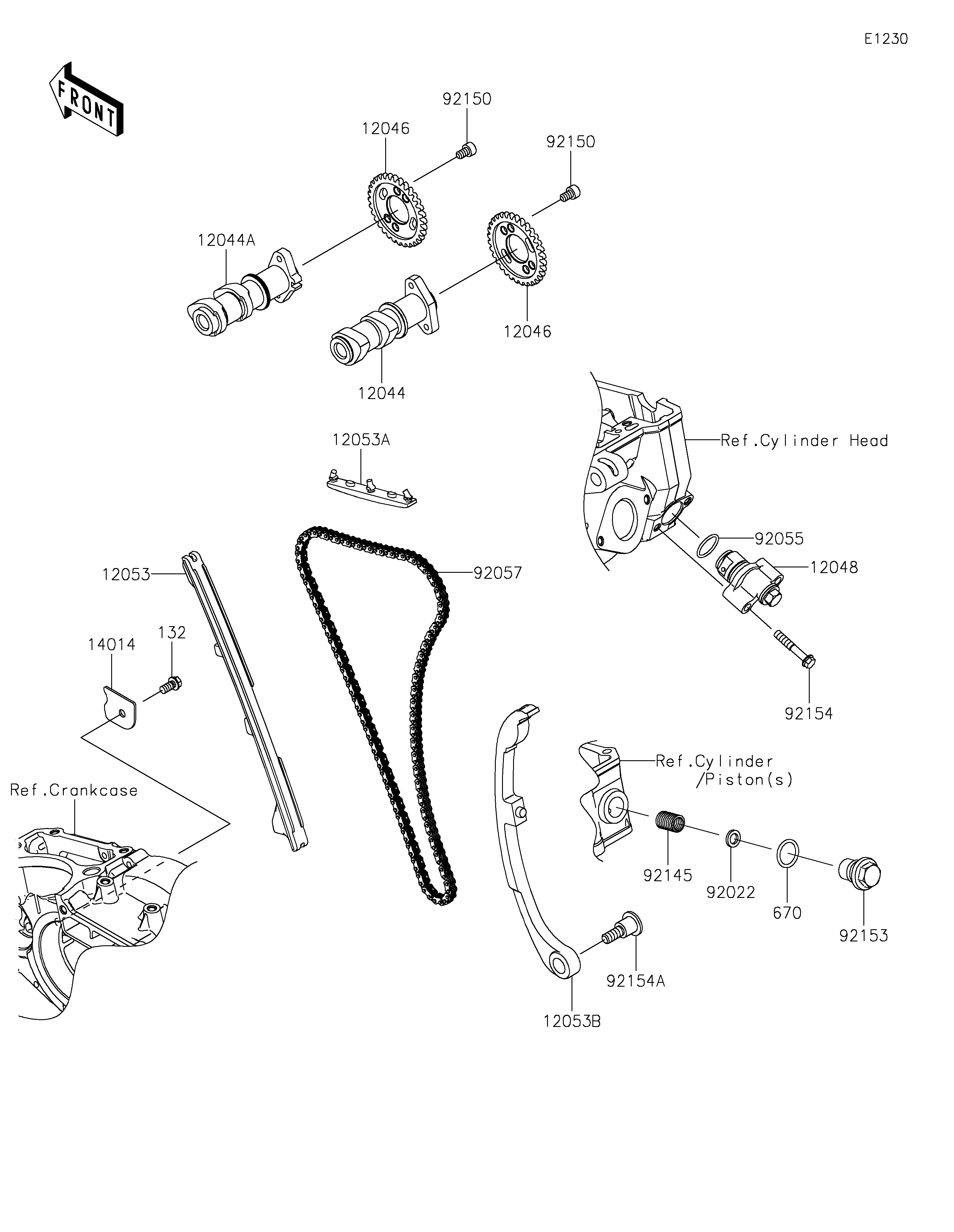

2020 KLX®300R - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
12044
12044A
12046
12046
12048
12053
12053A
12053B
132
14014
670
92022
92055
92057
92145
92150
92150
92153
92154
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAMSHAFT-VALVE,INTAKE 12044 12044-0786 1
CAMSHAFT-VALVE,EXHAUST 12044A 12044-0787 1
SPROCKET,CAMSHAFT,32T 12046 12046-0576 2
TENSIONER-ASSY 12048 12048-0054 1
GUIDE-CHAIN,FR 12053 12053-0204 1
GUIDE-CHAIN,UPP 12053A 12053-1317 1
GUIDE-CHAIN,RR 12053B 12053-1391 1
BOLT-FLANGED-SMALL,6X12 132 132BB0612 1
PLATE-POSITION 14014 14014-1130 1
O RING,18MM 670 670B2018 1
WASHER,8.5X13.5X2 92022 92022-1108 1
RING-O,18.8X1.9 92055 92055-086 1
CHAIN,CAM,92RH2010 92057 92057-0668 1
SPRING,TENSIONER 92145 92145-0993 1
BOLT,SOCKET,6X10 92150 92150-1650 4
BOLT,TENSIONER 92153 92153-0650 1
BOLT,FLANGED,6X35 92154 92154-0807 2
BOLT 92154A 92154-1307 1
