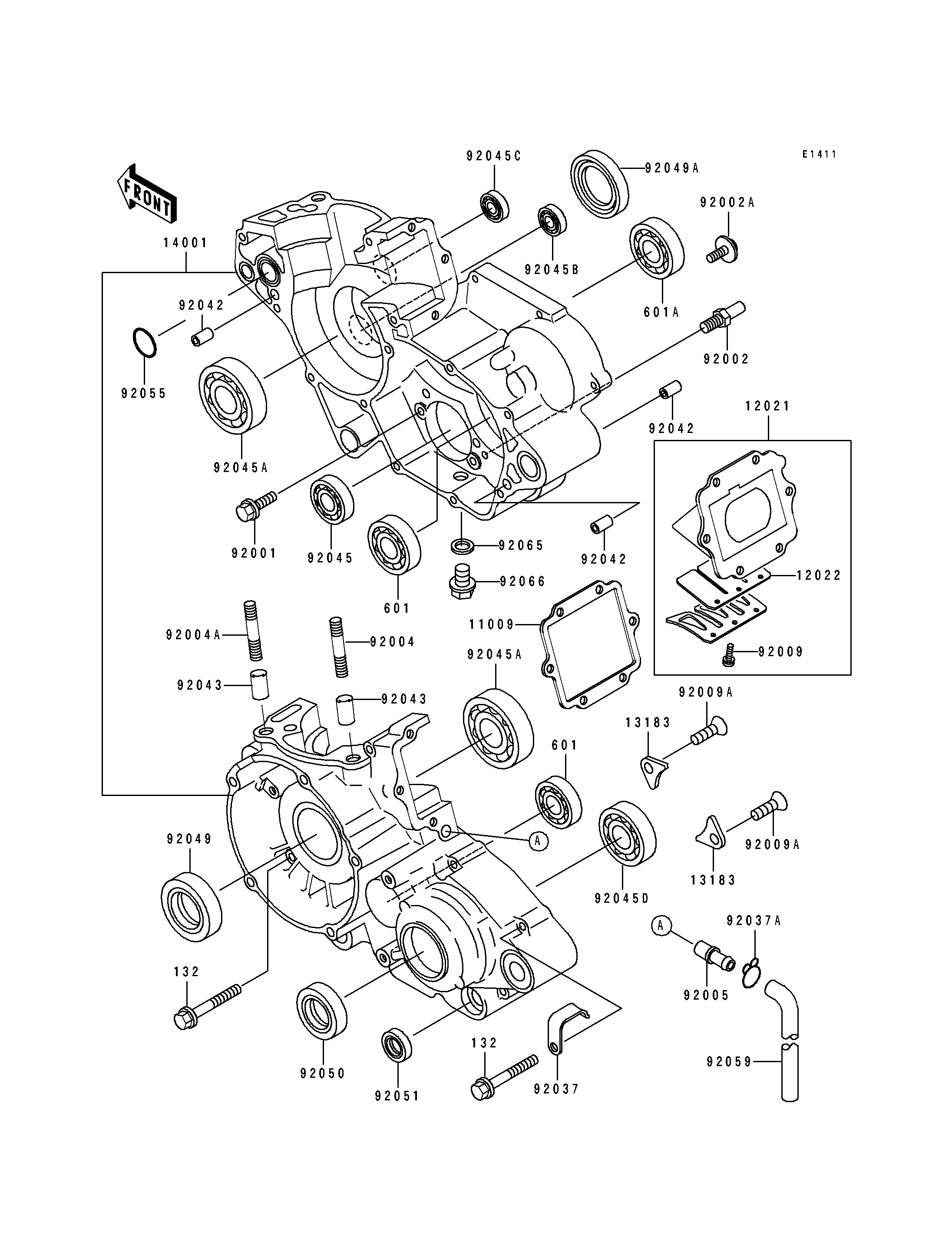

1993 KX125 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,REED VALVE 11009 11009-1941 1
VALVE-ASSY-REED 12021 12021-1095 1
VALVE-REED 12022 12022-1071 2
PLATE 13183 13183-1182 2
SET-CRANKCASE 14001 14001-5313 1
BOLT,W/WASHER,6X14 92001 92001-1829 2
BOLT,8X15 92002 92002-1601 1
BOLT,6X16 92002A 92002-1659 2
STUD,8X40 92004 92004-1210 2
STUD,8X45 92004A 92004-1211 2
FITTING,BREATHER 92005 92005-1127 1
SCREW,REED VALVE 92009 92009-1014 6
SCREW,6X10 92009A 92009-1563 2
CLAMP,HARNESS 92037 92037-1318 1
CLAMP 92037A 92037-1610 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
PIN,8.2X10X14 92043 92043-1264 2
BEARING-BALL,#6905 92045 92045-036 1
BEARING-BALL 92045A 92045-1209 2
BEARING-BALL 92045B 92045-1211 1
BEARING-BALL 92045C 92045-1212 1
BEARING-BALL,SX04A29C3 92045D 92045-1252 1
SEAL-OIL 92049 92049-1300 1
SEAL-OIL 92049A 92049-1301 1
SEAL-OIL,SC25376 92050 92050-013 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O 92055 92055-086 1
TUBE,6X9X420 92059 92059-1946 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
PLUG,DRAIN 92066 92066-1388 1
BOLT-FLANGED-SMALL 132 132G0640 13
BEARING-BALL,#6202C3 601 601B6202 2
BEARING-BALL,#6303C3 601A 601B6303 1
