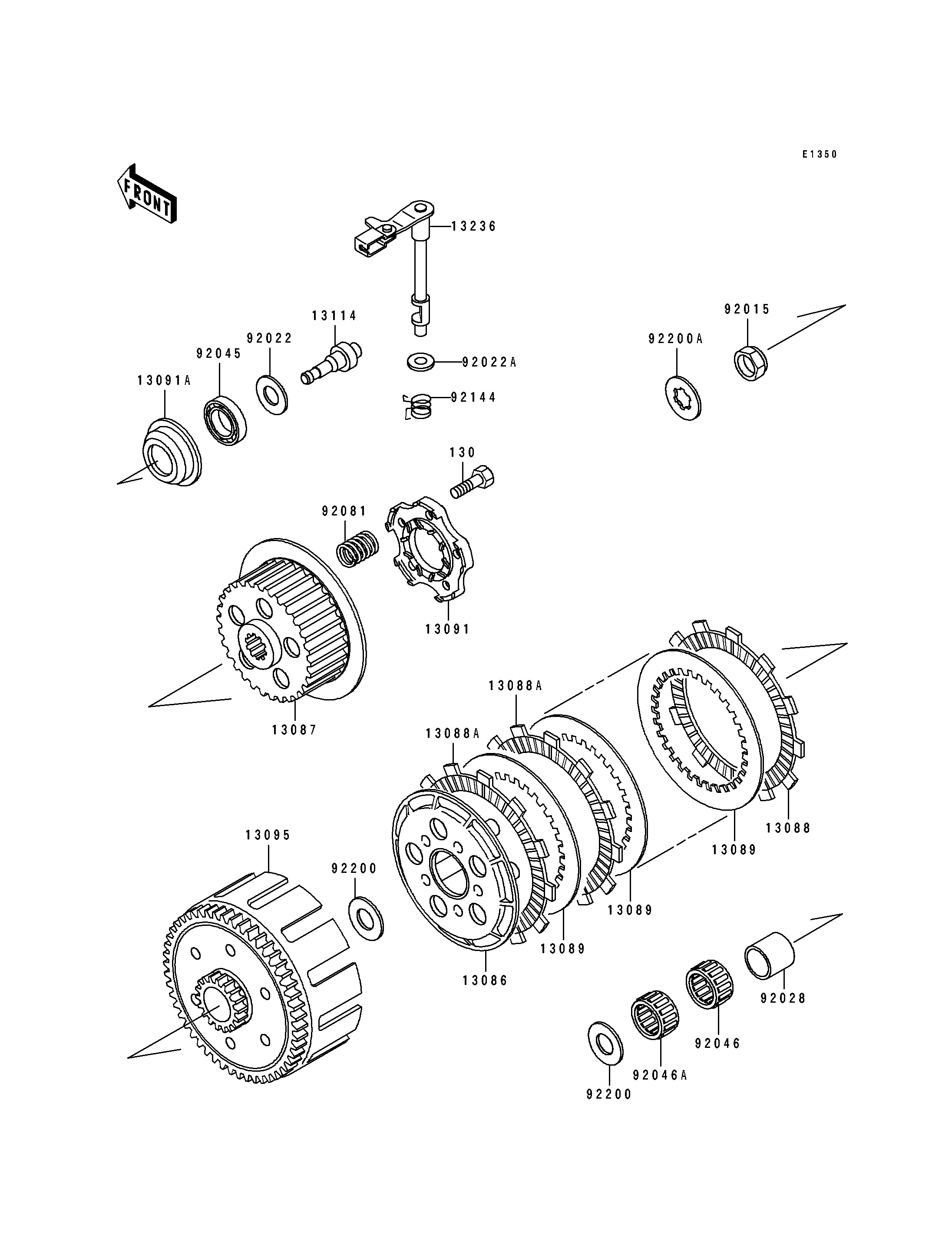

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WHEEL-CLUTCH | 13086 | 13086-1062 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1120 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1090 | 6 | ||
| PLATE-FRICTION | 13088A | 13088-1101 | 2 | ||
| PLATE-CLUTCH | 13089 | 13089-1094 | 7 | ||
| HOLDER,CLUTCH SPRING | 13091 | 13091-1502 | 1 | ||
| HOLDER,CLUTCH PUSHER | 13091A | 13091-1712 | 1 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-1258 | 1 | ||
| PUSHER-CLUTCH | 13114 | 13114-1063 | 1 | ||
| LEVER-COMP,RELEASE | 13236 | 13236-1230 | 1 | ||
| NUT,16MM | 92015 | 92015-1820 | 1 | ||
| WASHER,10.2X14.5X1.0 | 92022 | 92022-1181 | 1 | ||
| WASHER,12.3X20X0.5 | 92022A | 92022-269 | 1 | ||
| BUSHING,17X22X25.3 | 92028 | 92028-1588 | 1 | ||
| BEARING-BALL,6000 | 92045 | 92045-1225 | 1 | ||
| BEARING-NEEDLE,K22X26X13 | 92046 | 92046-1130 | 1 | ||
| BEARING-NEEDLE,K22X26X11 | 92046A | 92046-1198 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-155 | 5 | ||
| SPRING,CLUTCH RELEASE | 92144 | 92144-1287 | 1 | ||
| WASHER,17.3X30X2.0 | 92200 | 92200-1030 | 2 | ||
| WASHER | 92200A | 92200-1054 | 1 | ||
| BOLT-FLANGED,6X25 | 130 | 130G0625 | 5 |
| WHEEL-CLUTCH | |
| REF # | 13086 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB-CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH SPRING | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,CLUTCH PUSHER | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-COMP-CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUSHER-CLUTCH | |
| REF # | 13114 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP,RELEASE | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,16MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.2X14.5X1.0 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,12.3X20X0.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,17X22X25.3 | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6000 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,K22X26X13 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,K22X26X11 | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH RELEASE | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,17.3X30X2.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
