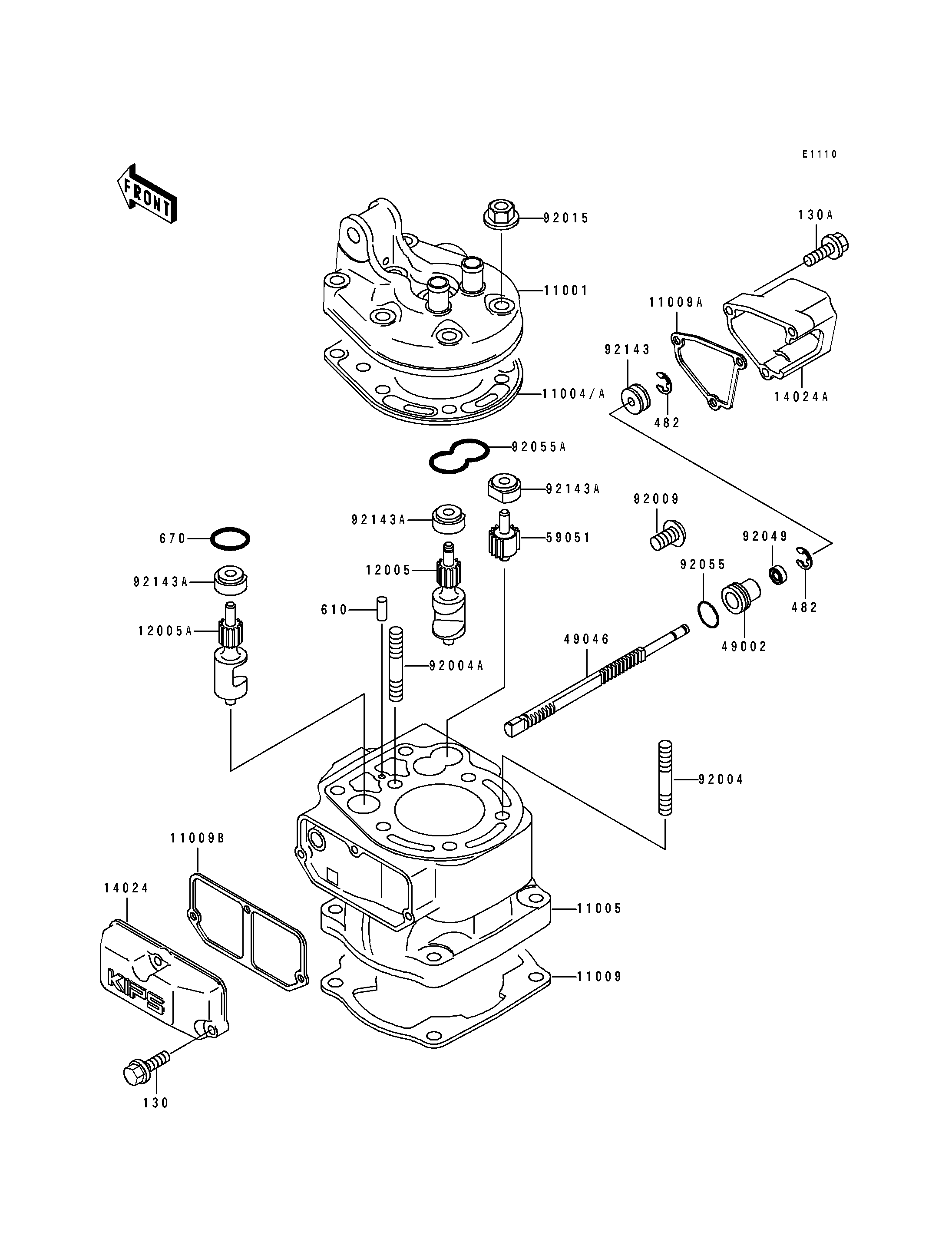

1990 KX125 - Cylinder Head/Cylinder(KX125-H1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HEAD-CYLINDER | 11001 | 11001-1316 | 1 | ||
| GASKET-HEAD,T=0.26 | 11004 | 11004-1204 | 1 | ||
| GASKET-HEAD,T=0.46 | 11004A | 11004-1225 | 1 | (OPTION) | |
| CYLINDER-ENGINE | 11005 | 11005-1602 | 1 | ||
| GASKET,CYLINDER BASE | 11009 | 11009-1824 | 1 | ||
| GASKET,RH,GOVERNOR | 11009A | 11009-1692 | 1 | ||
| GASKET,LH,RESONATOR | 11009B | 11009-1815 | 1 | ||
| VALVE-EXHAUST,RH | 12005 | 12005-1145 | 1 | ||
| VALVE-EXHAUST,LH | 12005A | 12005-1153 | 1 | ||
| COVER,RESONATOR | 14024 | 14024-1565 | 1 | ||
| COVER,GOVERNOR | 14024A | 14024-1844 | 1 | ||
| GUIDE-VALVE | 49002 | 49002-1100 | 1 | ||
| ROD-GOVERNOR | 49046 | 49046-1067 | 1 | ||
| GEAR-SPUR,IDLE | 59051 | 59051-1222 | 1 | ||
| STUD,8X32 | 92004 | 92004-1197 | 6 | ||
| STUD,8X32 | 92004A | 92004-1201 | 1 | ||
| SCREW,5X10 | 92009 | 92009-1502 | 1 | ||
| NUT,8MM | 92015 | 92015-1143 | 11 | ||
| SEAL-OIL,RSO-5.5X11X4 | 92049 | 92049-1206 | 1 | ||
| RING-O,14.5X1.5 | 92055 | 92055-1399 | 1 | ||
| RING-O | 92055A | 92055-1439 | 1 | ||
| COLLAR | 92143 | 92143-1056 | 1 | ||
| COLLAR,VALVE | 92143A | 92143-1296 | 3 | ||
| BOLT-FLANGED | 130 | 130G0520 | 3 | ||
| BOLT-FLANGED | 130A | 130G0525 | 3 | ||
| CIRCLIP-TYPE-E,4MM | 482 | 482J4000 | 2 | ||
| ROLLER,4X8 | 610 | 610A0408 | 1 | ||
| O RING,15MM | 670 | 670B2015 | 1 |
| HEAD-CYLINDER | |
| REF # | 11001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-HEAD,T=0.26 | |
| REF # | 11004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-HEAD,T=0.46 | |
| REF # | 11004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| CYLINDER-ENGINE | |
| REF # | 11005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,RH,GOVERNOR | |
| REF # | 11009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,LH,RESONATOR | |
| REF # | 11009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,RH | |
| REF # | 12005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-EXHAUST,LH | |
| REF # | 12005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RESONATOR | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,GOVERNOR | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-VALVE | |
| REF # | 49002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-GOVERNOR | |
| REF # | 49046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,IDLE | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,8X32 | |
| REF # | 92004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| STUD,8X32 | |
| REF # | 92004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,RSO-5.5X11X4 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,14.5X1.5 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,VALVE | |
| REF # | 92143A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-E,4MM | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROLLER,4X8 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,15MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
