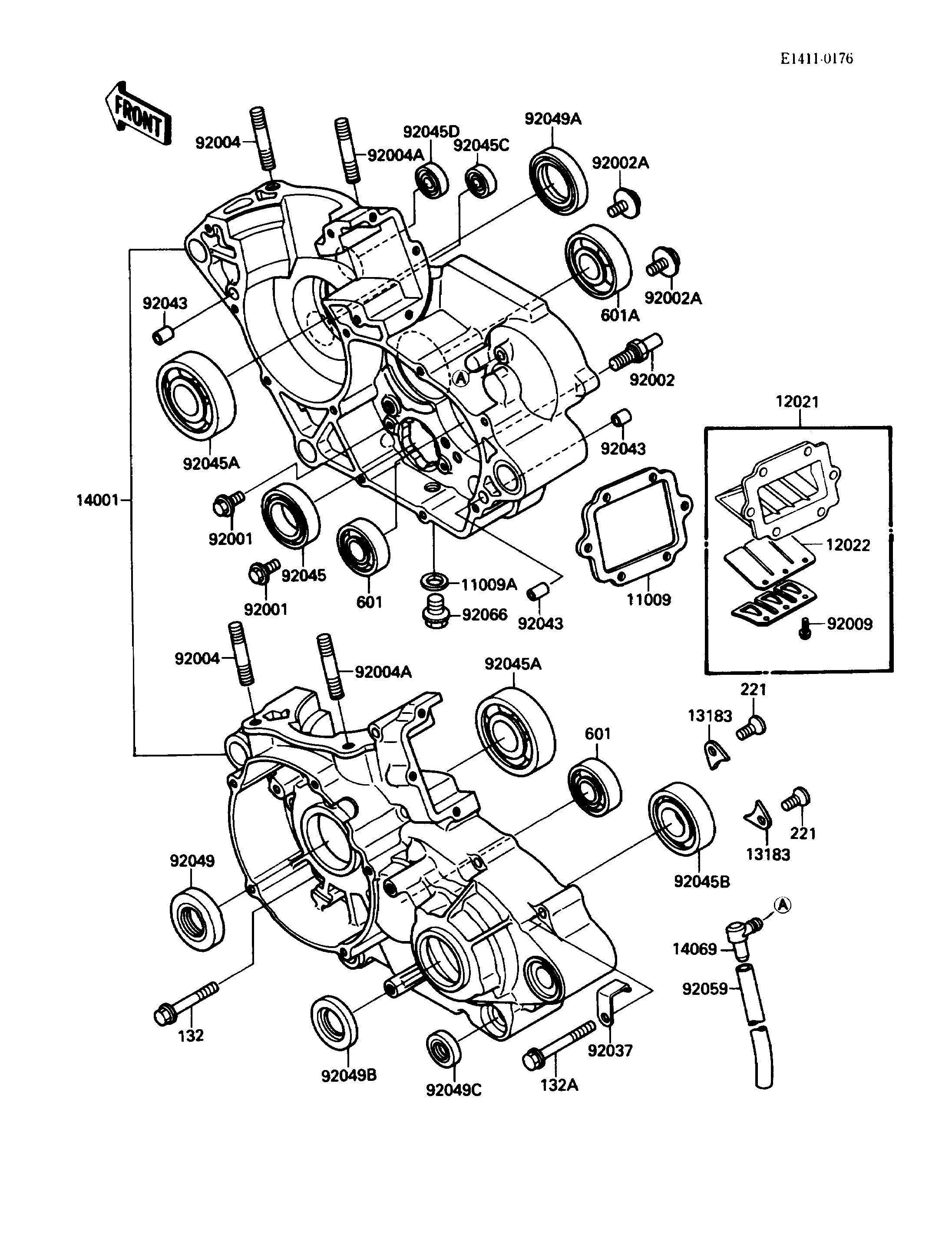

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,REED VALVE | 11009 | 11009-1263 | 1 | ||
| GASKET,10.5X16X1,DRAIN PLUG | 11009A | 92065-058 | 1 | ||
| VALVE-ASSY-REED | 12021 | 12021-1069 | 1 | ||
| VALVE-REED,CARBON | 12022 | 12022-1057 | 2 | ||
| PLATE | 13183 | 13183-1182 | 2 | ||
| SET-CRANKCASE | 14001 | 14001-5244 | 1 | ||
| BREATHER | 14069 | 14069-003 | 1 | ||
| BOLT,W/WASHER,6X14 | 92001 | 92001-1829 | 2 | ||
| BOLT,8X15 | 92002 | 92002-1601 | 1 | ||
| BOLT,6X16 | 92002A | 92002-1659 | 2 | ||
| STUD,8X25 | 92004 | 92004-1008 | 2 | ||
| STUD,8X28.5 | 92004A | 92004-1142 | 2 | ||
| SCREW,REED VALVE | 92009 | 92009-1014 | 6 | ||
| CLAMP,HARNESS | 92037 | 92037-1318 | 1 | ||
| PIN,DOWEL,6.3X8X14 | 92043 | 92042-007 | 4 | ||
| BEARING-BALL,#6905 | 92045 | 92045-036 | 1 | ||
| BEARING-BALL | 92045A | 92045-1209 | 2 | ||
| BEARING-BALL | 92045B | 92045-1210 | 1 | ||
| BEARING-BALL | 92045C | 92045-1211 | 1 | ||
| BEARING-BALL | 92045D | 92045-1212 | 1 | ||
| SEAL-OIL | 92049 | 92049-1300 | 1 | ||
| SEAL-OIL | 92049A | 92049-1301 | 1 | ||
| SEAL-OIL,SC25376 | 92049B | 92050-013 | 1 | ||
| SEAL-OIL,TB13225.5 | 92049C | 92051-005 | 1 | ||
| TUBE,6X9X280 | 92059 | 92059-1074 | 1 | ||
| PLUG,DRAIN | 92066 | 92066-1241 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0640 | 11 | ||
| BOLT-FLANGED-SMALL | 132A | 132G0650 | 1 | ||
| SCREW-CSK-CROS,6X12 | 221 | 221B0612 | 2 | ||
| BEARING-BALL,#6202C3 | 601 | 601B6202 | 2 | ||
| BEARING-BALL,#6303C3 | 601A | 601B6303 | 1 |
