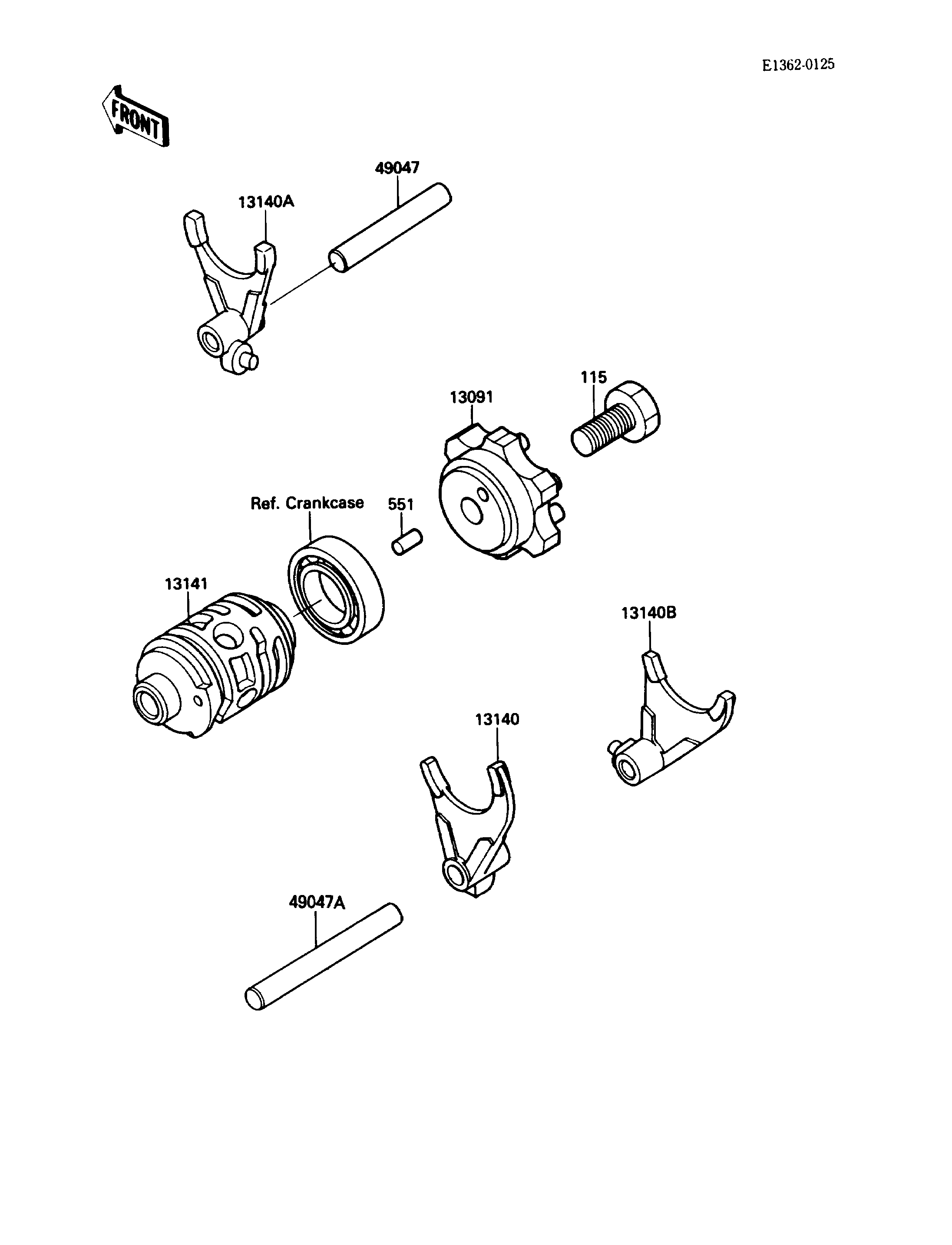

1988 KX125 - Gear Change Drum/Shift Fork(s)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,CHANGE DRUM | 13091 | 13091-1555 | 1 | ||
| FORK-SHIFT,2ND&3RD | 13140 | 13140-1070 | 1 | ||
| FORK-SHIFT,5TH&TOP | 13140A | 13140-1123 | 1 | ||
| FORK-SHIFT,LOW&4TH | 13140B | 13140-1124 | 1 | ||
| DRUM-CHANGE | 13141 | 13141-1145 | 1 | ||
| ROD-SHIFT,8X58 | 49047 | 49047-1017 | 1 | ||
| ROD-SHIFT,8X79.5 | 49047A | 49047-1018 | 1 | ||
| BOLT-SMALL-UPSET,8X18 | 115 | 115G0818 | 1 | ||
| PIN-DOWEL,4X8 | 551 | 551A0408 | 1 |
