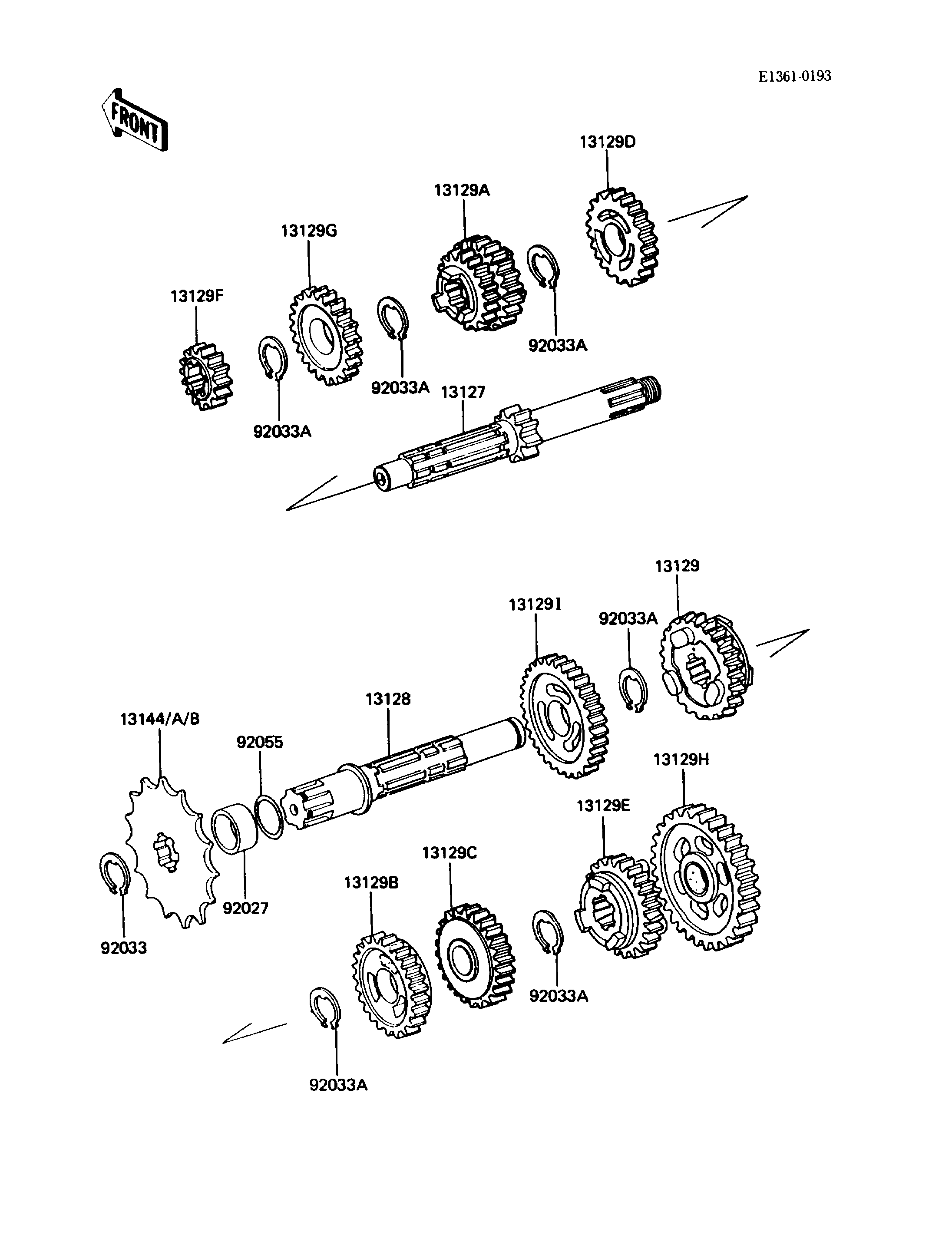

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,14T | 13127 | 13127-1158 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1149 | 1 | ||
| GEAR,OUTPUT 5TH,25T | 13129 | 13129-1405 | 1 | ||
| GEAR,INPUT 3RD&4TH,20T&22T | 13129A | 13129-1625 | 1 | ||
| GEAR,OUTPUT 3RD,28T | 13129B | 13129-1627 | 1 | ||
| GEAR,OUTPUT 4TH,26T | 13129C | 13129-1628 | 1 | ||
| GEAR,INPUT TOP,25T | 13129D | 13129-1831 | 1 | ||
| GEAR,OUTPUT TOP,23T | 13129E | 13129-1834 | 1 | ||
| GEAR,INPUT 2ND,14T | 13129F | 13129-1900 | 1 | ||
| GEAR,INPUT 5TH,24T | 13129G | 13129-1901 | 1 | ||
| GEAR,OUTPUT LOW,30T | 13129H | 13129-1902 | 1 | ||
| GEAR,OUTPUT 2ND,24T | 13129I | 13129-1903 | 1 | ||
| SPROCKET-OUTPUT,11T | 13144 | 13144-1036 | 1 | (OPTION) | |
| SPROCKET-OUTPUT,12T | 13144A | 13144-1049 | 1 | ||
| SPROCKET-OUTPUT,13T | 13144B | 13144-1050 | 1 | (OPTION) | |
| COLLAR,20X25X10.8 | 92027 | 92027-1445 | 1 | ||
| RING-SNAP,18MM | 92033 | 92033-1079 | 1 | ||
| RING-SNAP,20MM | 92033A | 92033-1231 | 6 | ||
| RING-O,17.5X1.5 | 92055 | 92055-022 | 1 |
