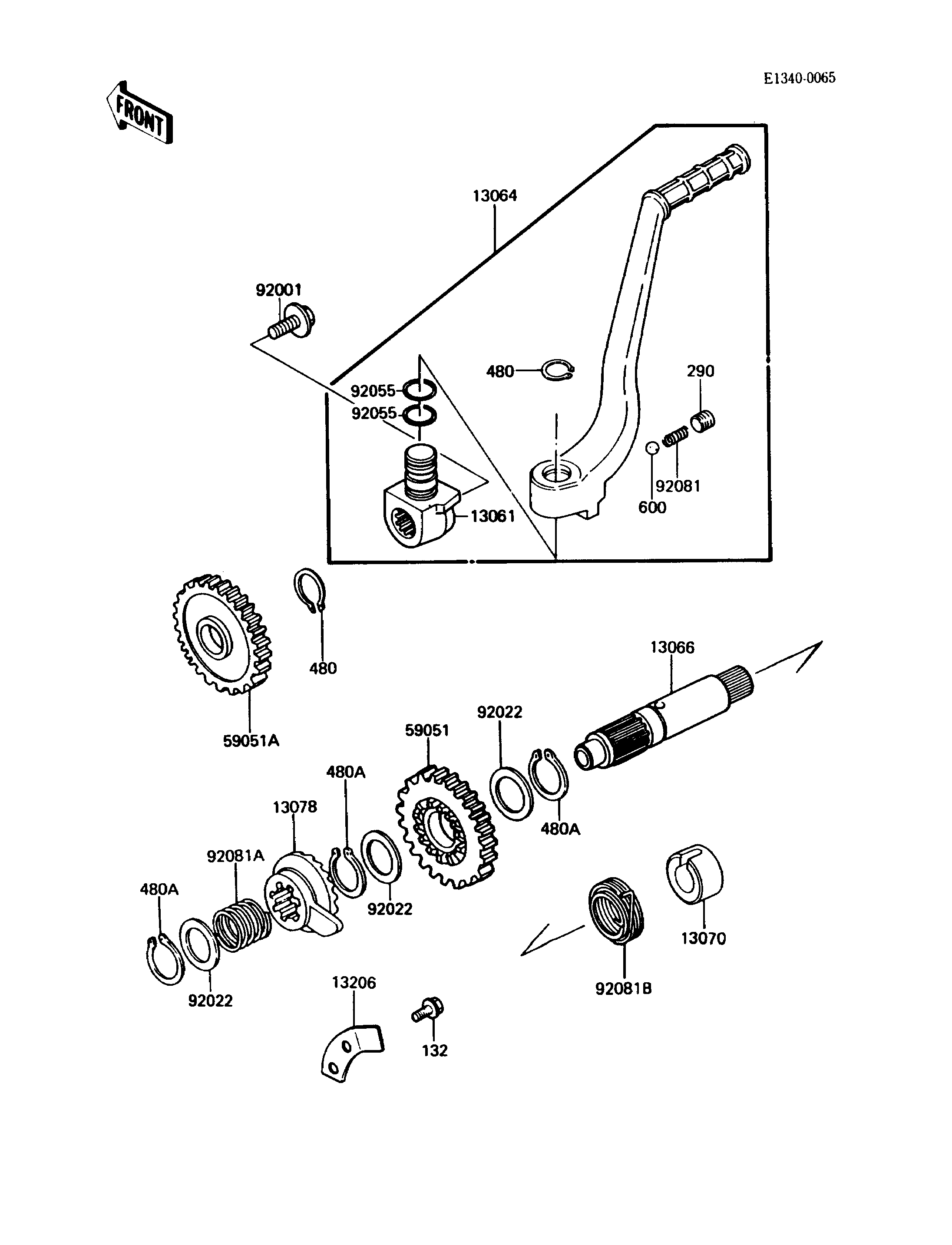

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOSS,KICK PEDAL | 13061 | 13061-1263 | 1 | ||
| LEVER-ASSY-KICK,PEDAL | 13064 | 13064-1138 | 1 | ||
| SHAFT-KICK,STARTER | 13066 | 13066-1019 | 1 | ||
| GUIDE,KICK SPRING | 13070 | 13070-1007 | 1 | ||
| RATCHET | 13078 | 13078-1052 | 1 | ||
| GUIDE-KICK | 13206 | 13206-1001 | 1 | ||
| GEAR-SPUR,KICKSTARTER,30T | 59051 | 59051-1125 | 1 | ||
| GEAR-SPUR,IDLE,31T | 59051A | 59051-1191 | 1 | ||
| BOLT,FLANGED,6X10 | 92001 | 92001-1034 | 1 | ||
| WASHER,16.8X22X0.5 | 92022 | 92022-315 | 3 | ||
| RING-O,10X1.5 | 92055 | 92055-061 | 2 | ||
| SPRING,KICK PEDAL | 92081 | 92081-020 | 1 | ||
| SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
| SPRING,KICKSTARTER | 92081B | 92081-1768 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0616 | 1 | ||
| SCREW-SET-SOCKET,8X8 | 290 | 290Q0808 | 1 | ||
| CIRCLIP-TYPE-C,15MM | 480 | 480J1500 | 2 | ||
| CIRCLIP-TYPE-C,16MM | 480A | 480J1600 | 3 | ||
| BALL-STEEL,1/4" | 600 | 600A0800 | 1 |
| BOSS,KICK PEDAL | |
| REF # | 13061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-KICK,PEDAL | |
| REF # | 13064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-KICK,STARTER | |
| REF # | 13066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,KICK SPRING | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET | |
| REF # | 13078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE-KICK | |
| REF # | 13206 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,KICKSTARTER,30T | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,IDLE,31T | |
| REF # | 59051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X10 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,16.8X22X0.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RING-O,10X1.5 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICK PEDAL | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,RATCHET | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICKSTARTER | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-SET-SOCKET,8X8 | |
| REF # | 290 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,15MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,16MM | |
| REF # | 480A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BALL-STEEL,1/4" | |
| REF # | 600 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
