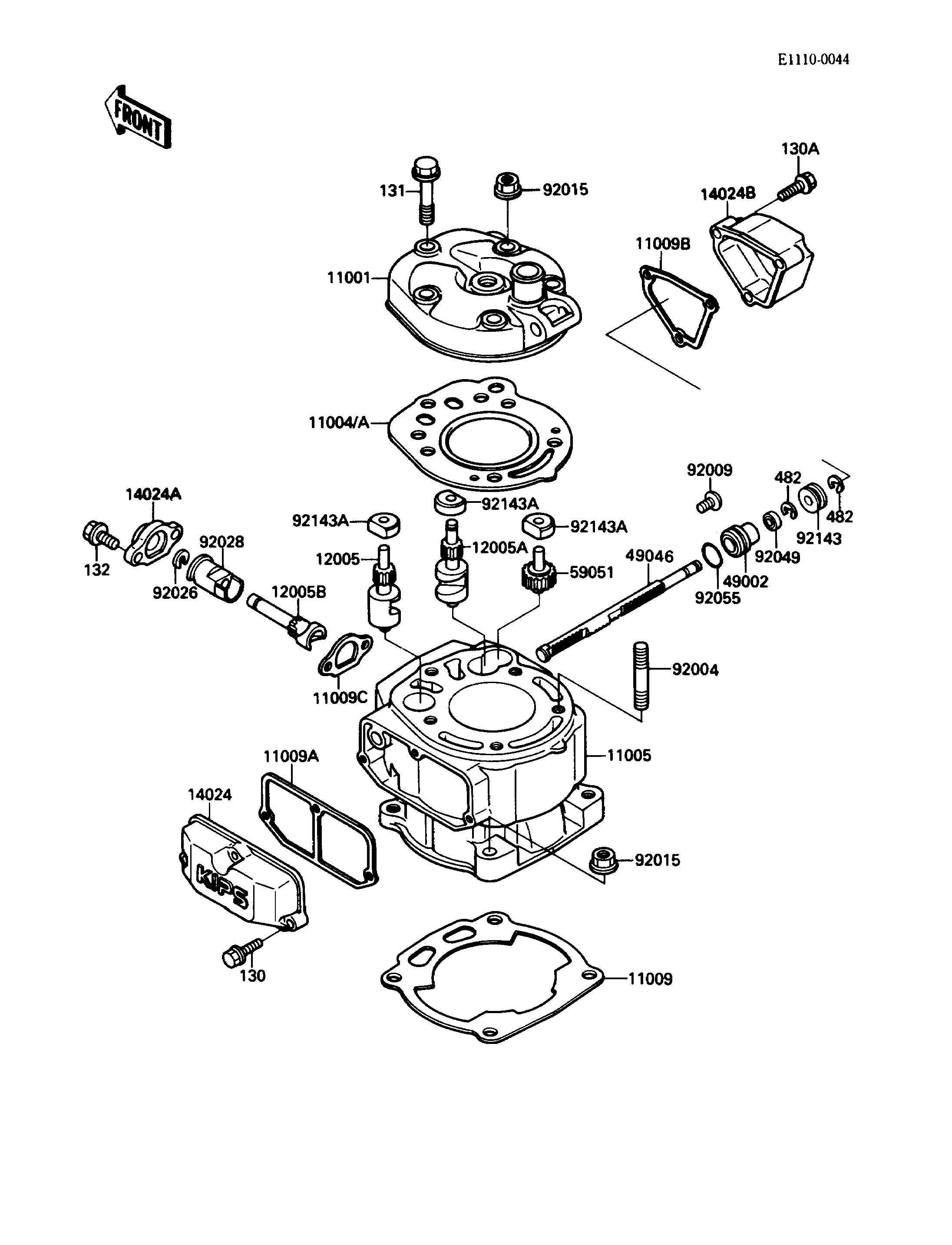

1988 KX125 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-CYLINDER 11001 11001-1267 1
GASKET-HEAD,T=1.0 11004 11004-1172 1
GASKET-HEAD,T=1.2 11004A 11004-1173 1 (OPTION)
CYLINDER-ENGINE 11005 11005-1539 1
GASKET,CYLINDER BASE 11009 11009-1690 1
GASKET,LH,RESONATOR 11009A 11009-1691 1
GASKET,RH,GOVERNOR 11009B 11009-1692 1
GASKET 11009C 11009-1705 1
VALVE-EXHAUST,LH 12005 12005-1096 1
VALVE-EXHAUST,RH 12005A 12005-1097 1
VALVE-EXHAUST,CENTER 12005B 12005-1102 1
COVER,RESONATOR 14024 14024-1565 1
COVER 14024A 14024-1590 1
COVER,GOVERNOR 14024B 14024-1724 1
GUIDE-VALVE 49002 49002-1083 1
ROD-GOVERNOR 49046 49046-1062 1
GEAR-SPUR,IDLE 59051 59051-1190 1
STUD,8X35 92004 92004-1009 4
SCREW,5X10 92009 92009-1502 1
NUT,8MM 92015 92015-1143 8
SPACER 92026 92026-1333 1
BUSHING 92028 92028-1518 1
SEAL-OIL,RSO-5.5X11X4 92049 92049-1206 1
RING-O,14.5X1.5 92055 92055-1399 1
COLLAR 92143 92143-1056 1
COLLAR,VALVE 92143A 92143-1147 3
BOLT-FLANGED 130 130G0520 3
BOLT-FLANGED 130A 130G0525 3
BOLT-FLANGED,8X40 131 131P0840 1
BOLT-FLANGED-SMALL 132 132G0620 2
CIRCLIP-TYPE-E,4MM 482 482J4000 2
