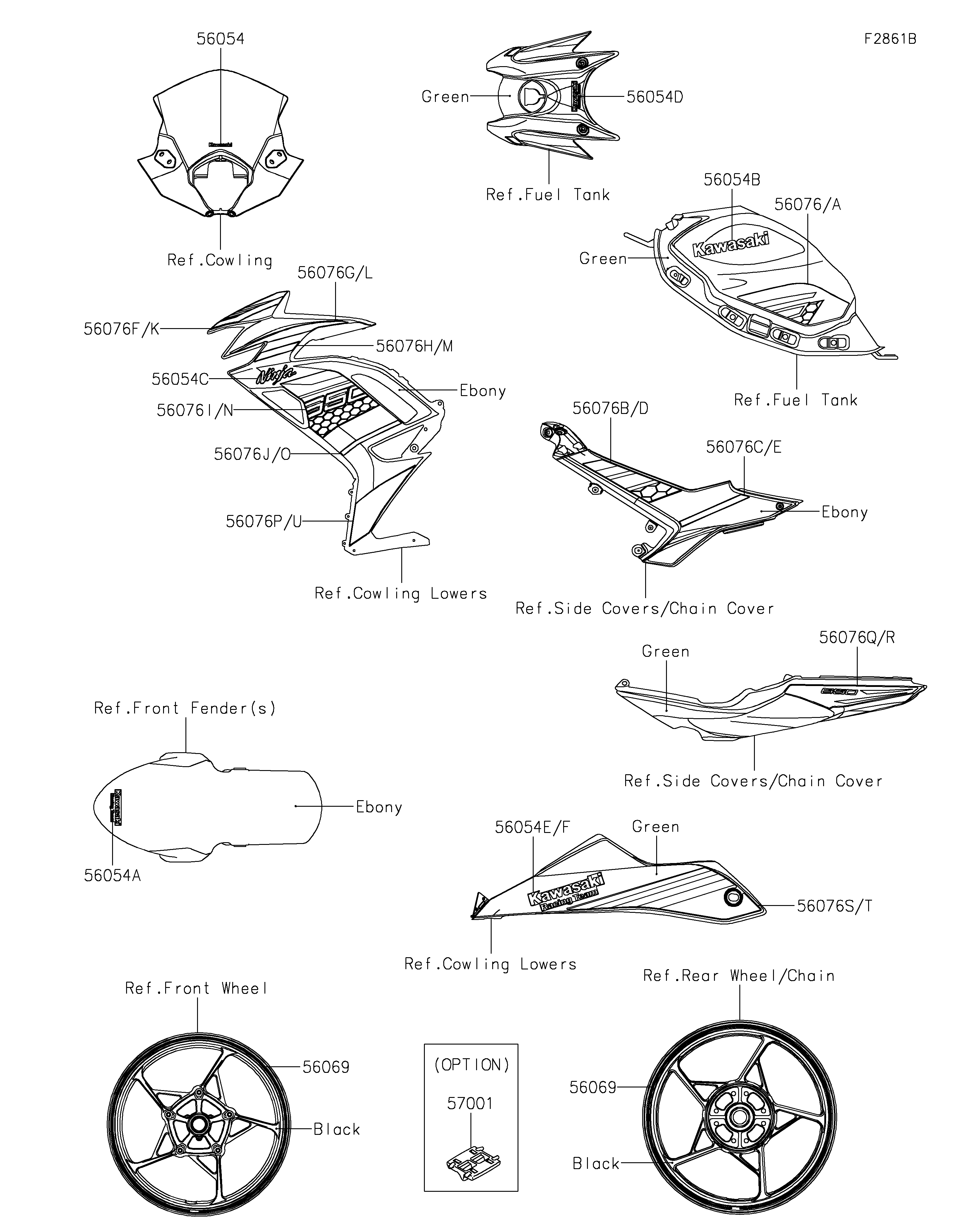

2020 Ninja® 650 KRT Edition - Decals(Green)(NLFA)
56054
56054A
56054B
56054C
56054D
56054E
56054F
56069
56069
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
56076O
56076P
56076Q
56076R
56076S
56076T
56076U
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD,KAWASAKI | 56054 | 56054-2261 | 1 | ||
| MARK,FR FENDER,KAWASAKI | 56054A | 56054-2607 | 1 | ||
| MARK,FUEL TANK,KAWASAKI | 56054B | 56054-2717 | 2 | ||
| MARK,SIDE COWL.,NINJA | 56054C | 56054-2718 | 2 | ||
| MARK,TANK COVER,KRT | 56054D | 56054-2719 | 1 | ||
| MARK,LWR COWL.,LH,KRT | 56054E | 56054-2720 | 1 | ||
| MARK,LWR COWL.,RH,KRT | 56054F | 56054-2721 | 1 | ||
| PATTERN,WHEEL,GRN,6X1353 | 56069 | 56069-2895 | 4 | ||
| PATTERN,FUEL TANK,LH | 56076 | 56076-0975 | 1 | ||
| PATTERN,FUEL TANK,RH | 56076A | 56076-0976 | 1 | ||
| PATTERN,SIDE COVER,LH,UPP | 56076B | 56076-0977 | 1 | ||
| PATTERN,SIDE COVER,LH,LWR | 56076C | 56076-0978 | 1 | ||
| PATTERN,SIDE COVER,RH,UPP | 56076D | 56076-0979 | 1 | ||
| PATTERN,SIDE COVER,RH,LWR | 56076E | 56076-0980 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP,UPP | 56076F | 56076-0981 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP,CNT | 56076G | 56076-0982 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP,LWR | 56076H | 56076-0983 | 1 | ||
| PATTERN,SIDE COWL.,LH,CNT | 56076I | 56076-0984 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR,UPP | 56076J | 56076-0985 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP,UPP | 56076K | 56076-0986 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP,CNT | 56076L | 56076-0987 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP,LWR | 56076M | 56076-0988 | 1 | ||
| PATTERN,SIDE COWL.,RH,CNT | 56076N | 56076-0989 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR,UPP | 56076O | 56076-0990 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR,LWR | 56076P | 56076-0991 | 1 | ||
| PATTERN,TAIL COVER,LH | 56076Q | 56076-0992 | 1 | ||
| PATTERN,TAIL COVER,RH | 56076R | 56076-0993 | 1 | ||
| PATTERN,LWR COWL.,LH | 56076S | 56076-0994 | 1 | ||
| PATTERN,LWR COWL.,RH | 56076T | 56076-0995 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR,LWR | 56076U | 56076-1015 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FR FENDER,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COWL.,NINJA | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,TANK COVER,KRT | |
| REF # | 56054D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,LH,KRT | |
| REF # | 56054E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,RH,KRT | |
| REF # | 56054F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GRN,6X1353 | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH,UPP | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH,LWR | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH,UPP | |
| REF # | 56076D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH,LWR | |
| REF # | 56076E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,UPP,UPP | |
| REF # | 56076F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,UPP,CNT | |
| REF # | 56076G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,UPP,LWR | |
| REF # | 56076H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,CNT | |
| REF # | 56076I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR,UPP | |
| REF # | 56076J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,UPP,UPP | |
| REF # | 56076K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,UPP,CNT | |
| REF # | 56076L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,UPP,LWR | |
| REF # | 56076M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,CNT | |
| REF # | 56076N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR,UPP | |
| REF # | 56076O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR,LWR | |
| REF # | 56076P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56076Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56076R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWL.,LH | |
| REF # | 56076S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWL.,RH | |
| REF # | 56076T |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR,LWR | |
| REF # | 56076U |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
