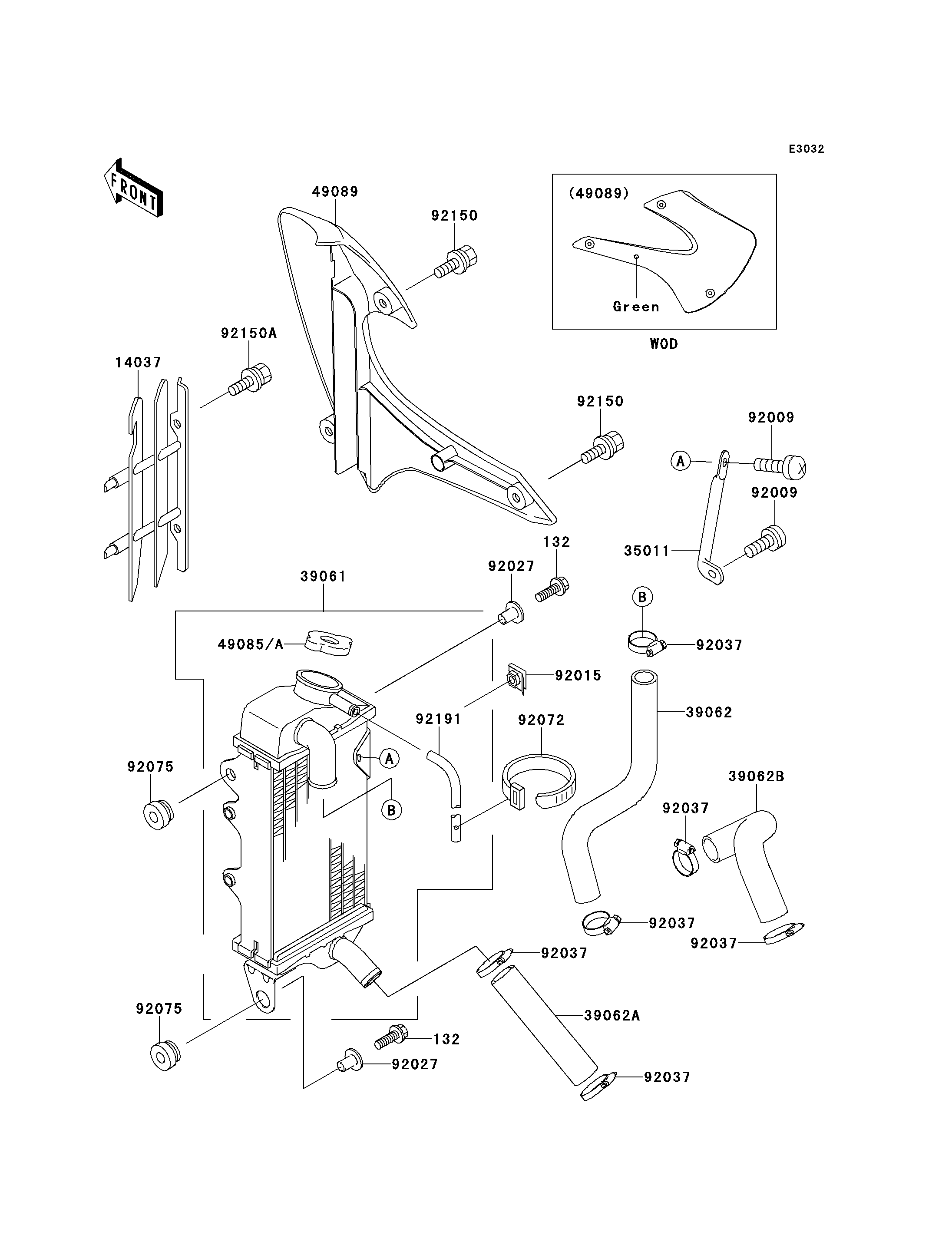

Parts Diagrams |
132
132
14037
35011
39061
39062
39062A
39062B
49085
49085A
49089
92009
92009
92015
92027
92027
92037
92037
92037
92037
92037
92037
92072
92075
92075
92150
92150
92150A
92191
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132G0625 | 2 | ||
| SCREEN,RH,WHITE | 14037 | 14037-1249-RZ | 1 | ||
| STAY | 35011 | 35011-1845 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-1245 | 1 | ||
| HOSE-COOLING,HEAD-RADIATOR | 39062 | 39062-1425 | 1 | ||
| HOSE-COOLING,RADIATOR-PUMP | 39062A | 39062-1711 | 1 | ||
| HOSE-COOLING,CYLINDER PUMP | 39062B | 39062-1712 | 1 | ||
| CAP-ASSY-PRESSURE,P1.1 | 49085 | 49085-1070 | 1 | ||
| CAP-ASSY-PRESSURE,P1.6 | 49085A | 49085-1073 | 1 | (OPTION) | |
| SHROUD-ENGINE,RH,L.GREEN | 49089 | 49089-1139-6W | 1 | ||
| SCREW,6X10 | 92009 | 92009-1661 | 2 | ||
| NUT | 92015 | 92015-1487 | 2 | ||
| COLLAR | 92027 | 92027-1183 | 2 | ||
| CLAMP,COOLING HOSE | 92037 | 92037-1589 | 6 | ||
| BAND,L=186 | 92072 | 92072-056 | 1 | ||
| DAMPER | 92075 | 92075-1352 | 2 | ||
| BOLT,6X14 | 92150 | 92150-1340 | 3 | ||
| BOLT,6X12 | 92150A | 92150-1435 | 1 | ||
| TUBE,6X9X700 | 92191 | 92191-1211 | 1 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREEN,RH,WHITE | |
| REF # | 14037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,HEAD-RADIATOR | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RADIATOR-PUMP | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,CYLINDER PUMP | |
| REF # | 39062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE,P1.1 | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE,P1.6 | |
| REF # | 49085A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SHROUD-ENGINE,RH,L.GREEN | |
| REF # | 49089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,COOLING HOSE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BAND,L=186 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,6X9X700 | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
