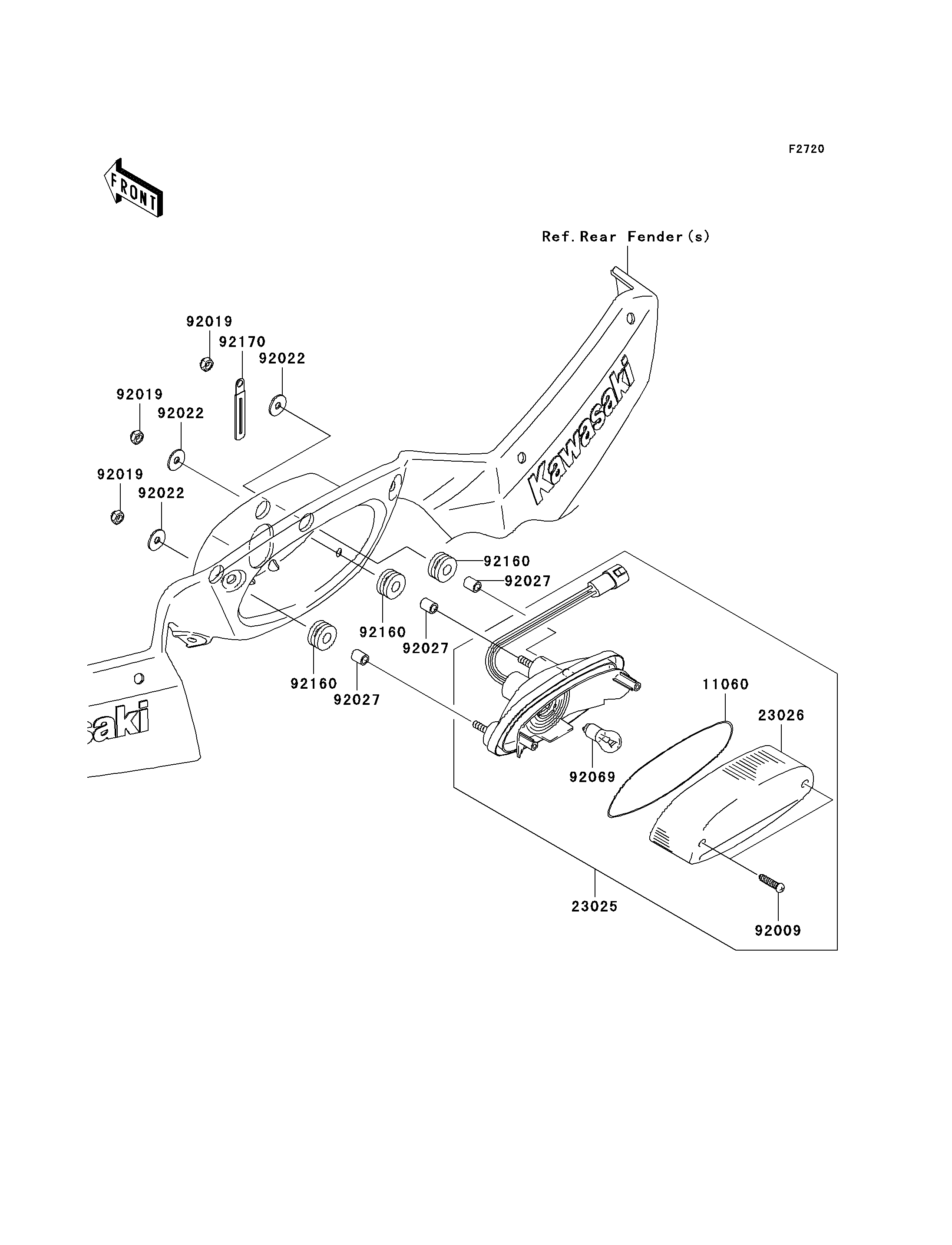

2009 Brute Force 750 4x4i Hardwoods Green HD - Taillight(s)
11060
23025
23026
92009
92019
92019
92019
92022
92022
92022
92027
92027
92027
92069
92160
92160
92160
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TAIL LAMP LENS | 11060 | 11060-1174 | 1 | ||
| LAMP-TAIL | 23025 | 23025-0011 | 1 | ||
| LENS,TAIL LAMP | 23026 | 23026-1183 | 1 | ||
| SCREW,TAPPING,4X20 | 92009 | 92009-1378 | 2 | ||
| NUT,LOCK,6MM | 92019 | 92019-008 | 3 | ||
| WASHER,6.5X20X1.6 | 92022 | 92022-1557 | 3 | ||
| COLLAR,6.8X10X12 | 92027 | 92027-162 | 3 | ||
| BULB,12V 21/5W | 92069 | 92069-063 | 1 | ||
| DAMPER | 92160 | 92160-1162 | 3 | ||
| CLAMP | 92170 | 92170-1514 | 1 |
| GASKET,TAIL LAMP LENS | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-TAIL | |
| REF # | 23025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS,TAIL LAMP | |
| REF # | 23026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X20 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,6MM | |
| REF # | 92019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X12 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 21/5W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
