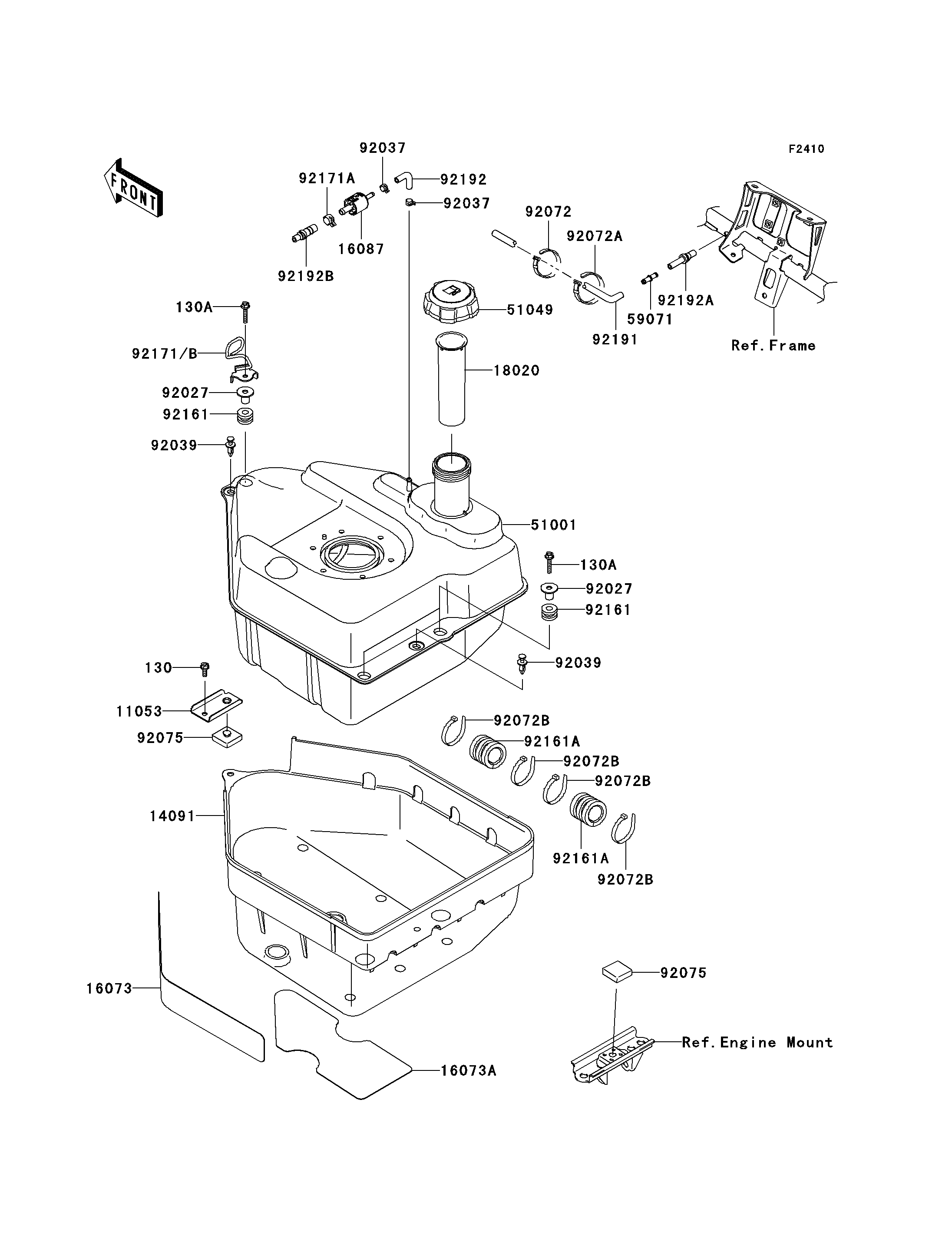

2009 Brute Force 750 4x4i Hardwoods Green HD - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
11053
14091
16073
16073A
16087
18020
51001
51049
59071
92027
92027
92037
92037
92039
92039
92072
92072A
92072B
92072B
92072B
92072B
92075
92075
92161
92161
92161A
92161A
92171A
92171B
92191
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130BA0616 1
BOLT-FLANGED,6X30 130A 130BA0630 3
BRACKET,FUEL TANK,TOP 11053 11053-0936 1
COVER,FUEL TANK,LWR 14091 14091-0608 1
INSULATOR,FUEL TANK COVER,SIDE 16073 16073-0033 1
INSULATOR,FUEL TANK COVER,LWR 16073A 16073-0034 1
VALVE-CHECK 16087 16087-0002 1
BAFFLE,FUEL TANK 18020 18020-0008 1
TANK-COMP-FUEL 51001 51001-0237 1
CAP-TANK,FUEL 51049 51049-1128 1
JOINT 59071 59071-3717 1
COLLAR,L=16.1 92027 92027-1847 3
CLAMP,TUBE 92037 92037-1461 2
RIVET 92039 92039-1229 2
BAND,L=149 92072 92072-031 1
BAND,L=186 92072A 92072-056 1
BAND,L=188 92072B 92072-1239 4
DAMPER 92075 92075-1882 2
DAMPER 92161 92161-0106 3
DAMPER,FUEL TANK,RR 92161A 92161-1111 2
CLAMP 92171A 92171-0515 1
CLAMP,FUEL TUBE 92171B 92171-1741 1
TUBE,CANISTER-SEPARATOR,BLUE 92191 92191-1384 1
TUBE,FUEL TANK-CHECK VALVE 92192 92192-0067 1
TUBE,FRAME PIPE-CHECK VALVE 92192A 92192-0068 1
TUBE,FRAME PIPE-CHECK VALVE 92192B 92192-0128 1
