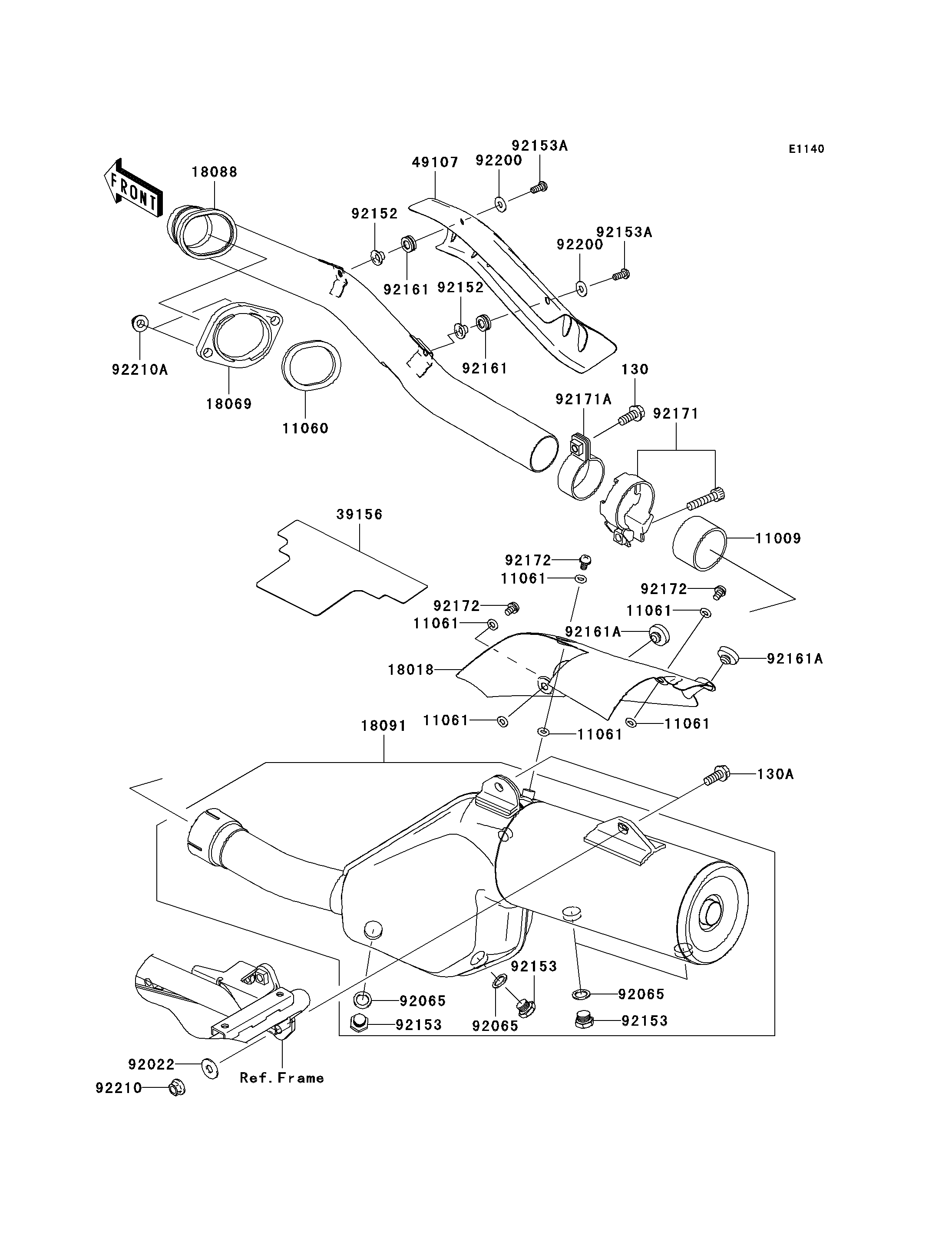

2009 KLR™650 - Muffler(s)(E8F/E9F)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11009
11060
11061
11061
11061
11061
11061
11061
18018
18069
18088
18091
39156
49107
92022
92065
92065
92065
92152
92152
92153
92153
92153
92153A
92153A
92161
92161
92161A
92161A
92171
92171A
92172
92172
92172
92200
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X20 130 130BD0820 1
BOLT-FLANGED,FLANGED,8X20 130A 130CC0820 2
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1666 1
GASKET,EXHAUST PIPE HOLDER 11060 11060-1108 1
GASKET,6.2X11.5X1.5 11061 11061-0372 6
PLATE-HEAT GUARD 18018 18018-0006 1
HOLDER-EXHAUST PIPE 18069 18069-1063 1
PIPE-EXHAUST 18088 18088-0262 1
BODY-COMP-MUFFLER 18091 18091-0510 1
PAD 39156 39156-0264 1
COVER-EXHAUST PIPE 49107 49107-0112 1
WASHER,PLAIN 92022 92022-3026 1
GASKET,12.5X18X1,DRAIN PLUG 92065 92065-073 4
COLLAR 92152 92152-0620 2
BOLT 92153 92153-1813 4
BOLT,SOCKET,6X14 92153A 92153-1886 2
DAMPER 92161 92161-0306 2
DAMPER 92161A 92161-0336 2
CLAMP 92171 92171-0139 1
CLAMP,43MM 92171A 92171-0752 1
SCREW,6X10 92172 92172-0097 3
WASHER,6.5X16X1.0 92200 92200-3712 2
NUT,FLANGED,LOCK,8MM 92210 92210-0493 1
NUT,CAP,8MM 92210A 92210-1132 2
