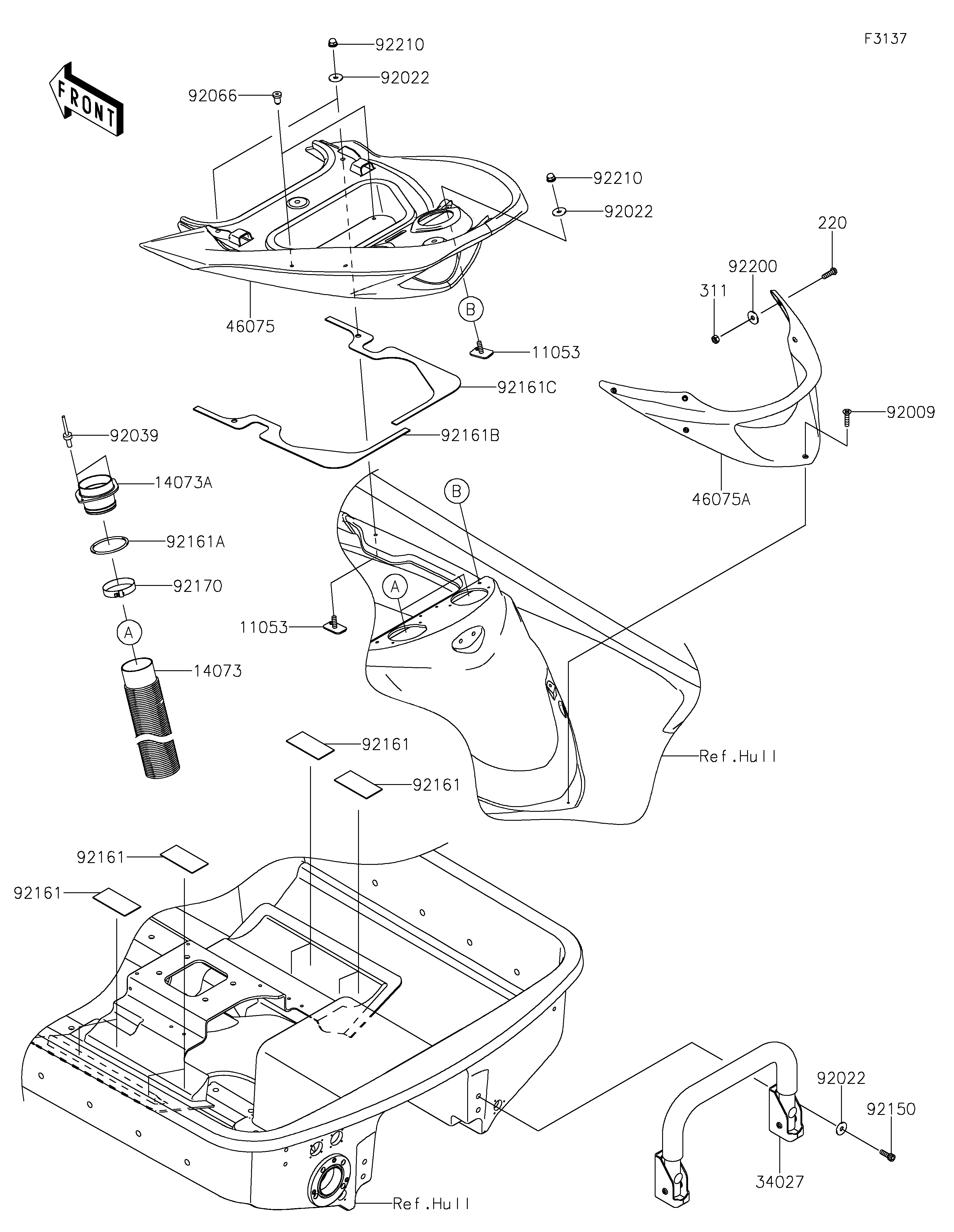

2019 JET SKI® Ultra® 310X - Hull Rear Fittings
11053
11053
14073
14073A
220
311
34027
46075
46075A
92009
92022
92022
92022
92039
92066
92150
92161
92161
92161
92161
92161A
92161B
92161C
92170
92200
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11053 | 11053-3776 | 4 | ||
| DUCT,L=800 | 14073 | 14073-0878 | 2 | ||
| DUCT | 14073A | 14073-3805 | 2 | ||
| SCREW-PAN-CROS,6X20 | 220 | 220R0620 | 6 | ||
| NUT-HEX,6MM | 311 | 311AA0600 | 6 | ||
| STEP-ASSY | 34027 | 34027-0067 | 1 | ||
| GRIP,RR | 46075 | 46075-0589 | 1 | ||
| GRIP,HANDLE | 46075A | 46075-3765 | 1 | ||
| SCREW,TAPPING,6X20 | 92009 | 92009-3842 | 1 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 8 | ||
| RIVET | 92039 | 92039-3775 | 4 | ||
| PLUG | 92066 | 92066-3773 | 2 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-3775 | 4 | ||
| DAMPER | 92161 | 92161-3728 | 8 | ||
| DAMPER | 92161A | 92161-3769 | 2 | ||
| DAMPER | 92161B | 92161-3781 | 1 | ||
| DAMPER | 92161C | 92161-3782 | 1 | ||
| CLAMP | 92170 | 92170-1679 | 2 | ||
| WASHER,6.5X20X1.6 | 92200 | 92200-0283 | 6 | ||
| NUT,CAP,6MM | 92210 | 92210-3785 | 4 |
